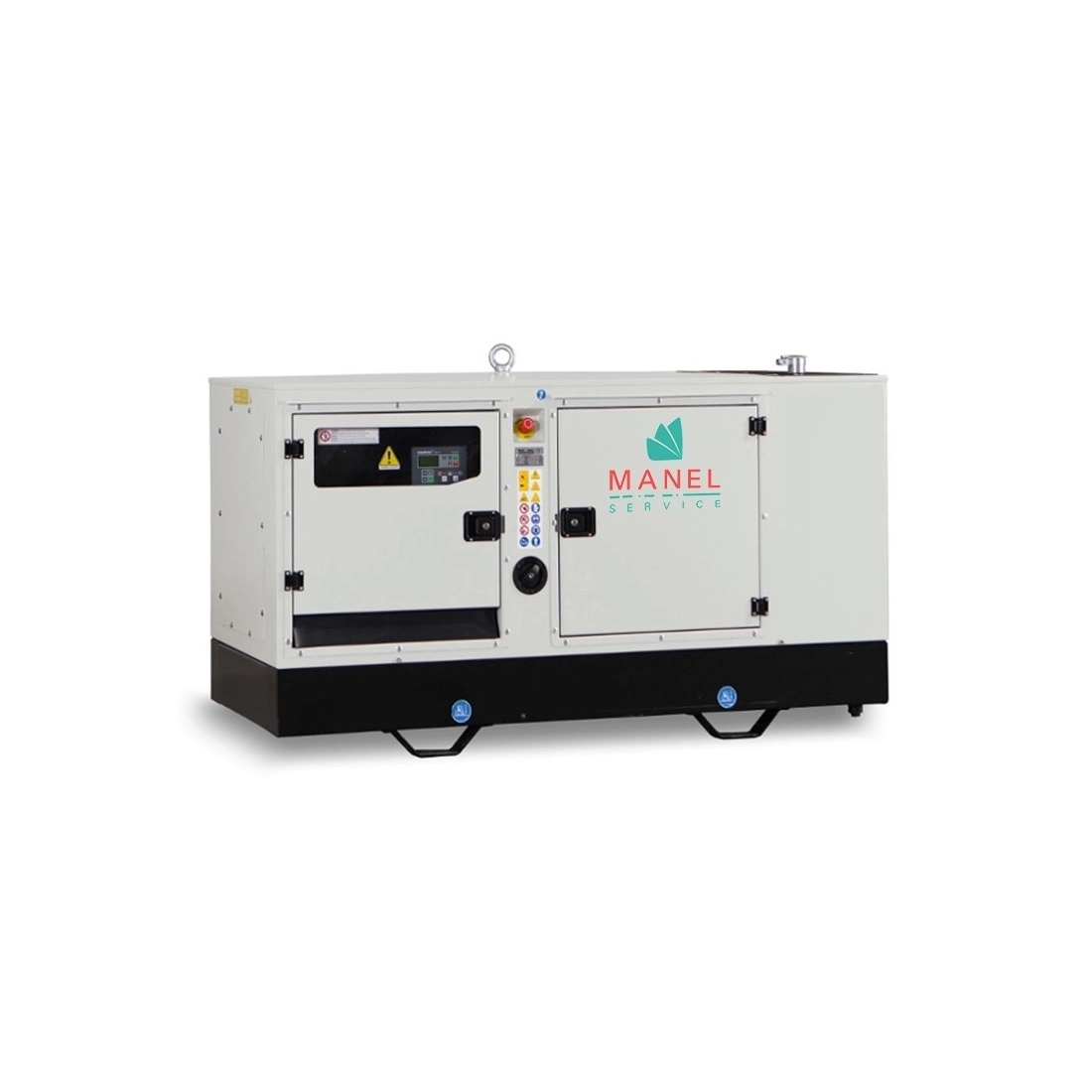

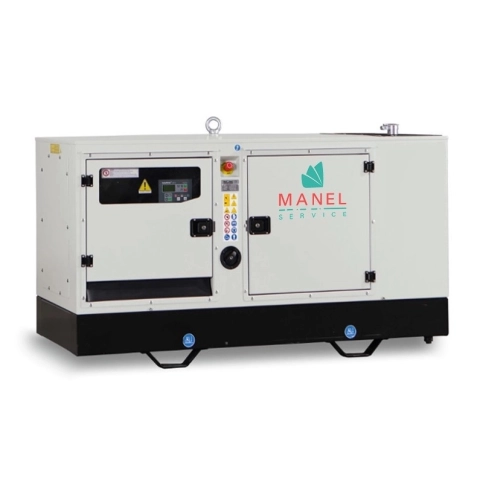

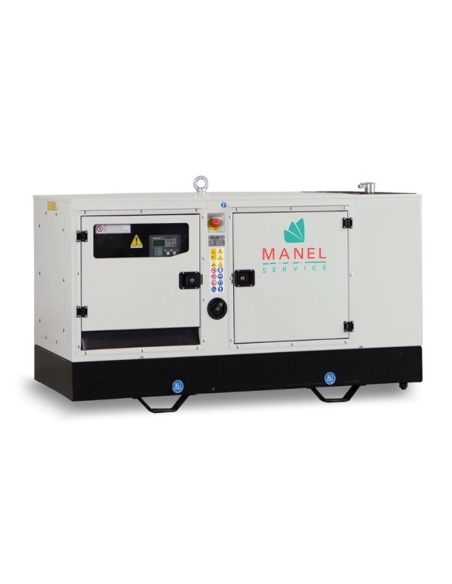

Generatore 100KVA Supersilenziato STAGE V

Reference GE100GP

Phase type: Single-phase / Three-phase
Continuous power: 100 KVA / 80 KW
Maximum power: 105 KVA / 84 KW
Engine: HYUNDAI DP034CDV
Engine speed: 1500 rpm
Emissions standard: Stage V
Starting: Electric
Voltage available at terminals: 230 / 400 V
Frequency: 50 Hz
Tank capacity: 160 l
Consumption at 75% load: 17.3 Lt/h
Sound pressure level: 66 dB(A) @ 7 m
Length: 3000 mm
Width: 1100 mm
Height: 1820 mm
Dry weight: 2030 Kg
Number of poles: 4
Insulation class: H
Protection rating: IP23
Alternator: Mecc Alte
Displacement: 3410 cc
Cylinders: 4

Product Details
Description

Phase: Single phase / Three phase
Maximum power three phase (KW): 84
Continuous power three phase (KW): 80
Maximum power three phase (KVA): 105
Continuous power three phase (KVA): 100
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: IVECO FTT F36ETVP03.A94
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Elettrico
Engine capacity (cm³): 3410
Number cylinders: 4
Alternator: MECC ALTE ECP34-2S/4C
Poles: 4
Protection degree: IP23
Fuel tank capacity (L): 170
Consumption (L/h): 23.6 at 75% load
Acoustic pressure: 66 dB(A) at 7 m
Length (mm): 3000
Width (mm): 1100
Height (mm): 1820
Dry weight (Kg): 2030
Silenced: Yes
Super silenced: Yes
Product type: Generator
Engine manufacturer: Hyundai

Brand

100KVA Super-Silent STAGE V Generator

Latest-generation generator, designed to offer exceptional performance and extremely quiet operation. With a continuous power of 80 kW and a HYUNDAI DP034CDV engine compliant with Stage V emissions regulations, this generator is the ideal solution for a wide range of applications, both industrial and residential.

Main Features:

Flexibility: Thanks to the ability to supply both single-phase and three-phase voltage, this generator adapts to different needs.

Power: With a continuous power of 80 kW, it can power a wide variety of equipment and machinery.
Quiet: The generator's design and careful soundproofing ensure extremely low noise levels, making it ideal for noise-sensitive environments.
Efficiency: The HYUNDAI engine ensures excellent efficiency and low consumption.
Compact and easy to handle: Its small size makes it easy to transport and Installation.
Eco-friendly: Thanks to its Stage V compliance, this generator meets the most stringent emissions standards.

Main Features:

Phase Type: Single-Phase / Three-Phase
Continuous Power: 100 KVA / 80 KW
Maximum Power: 100 KVA / 80 KW
Engine: IVECO FTT F36ETVP03.A94
Engine Speed: 1500 rpm
Emissions Standard: Stage V
Starting: Electric
Available Terminal Voltage: 230 / 400 V
Frequency: 50 Hz
Tank Capacity: 160 L
Consumption at 75% Load: 17.3 L/h
Sound Pressure: 66 dB(A) @ 7 m
Length: 3000 mm
Width: 1100 mm
Height: 1820 mm
Dry weight: 2030 kg
Number of poles: 4
Insulation class: H
Protection rating: IP23
Alternator: Mecc Alte
Displacement: 3410 cc
Cylinders: 4

Looking for a generator with different technical specifications? CLICK HERE to explore the dedicated area for specialized generator brands.

Images and technical data are not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
