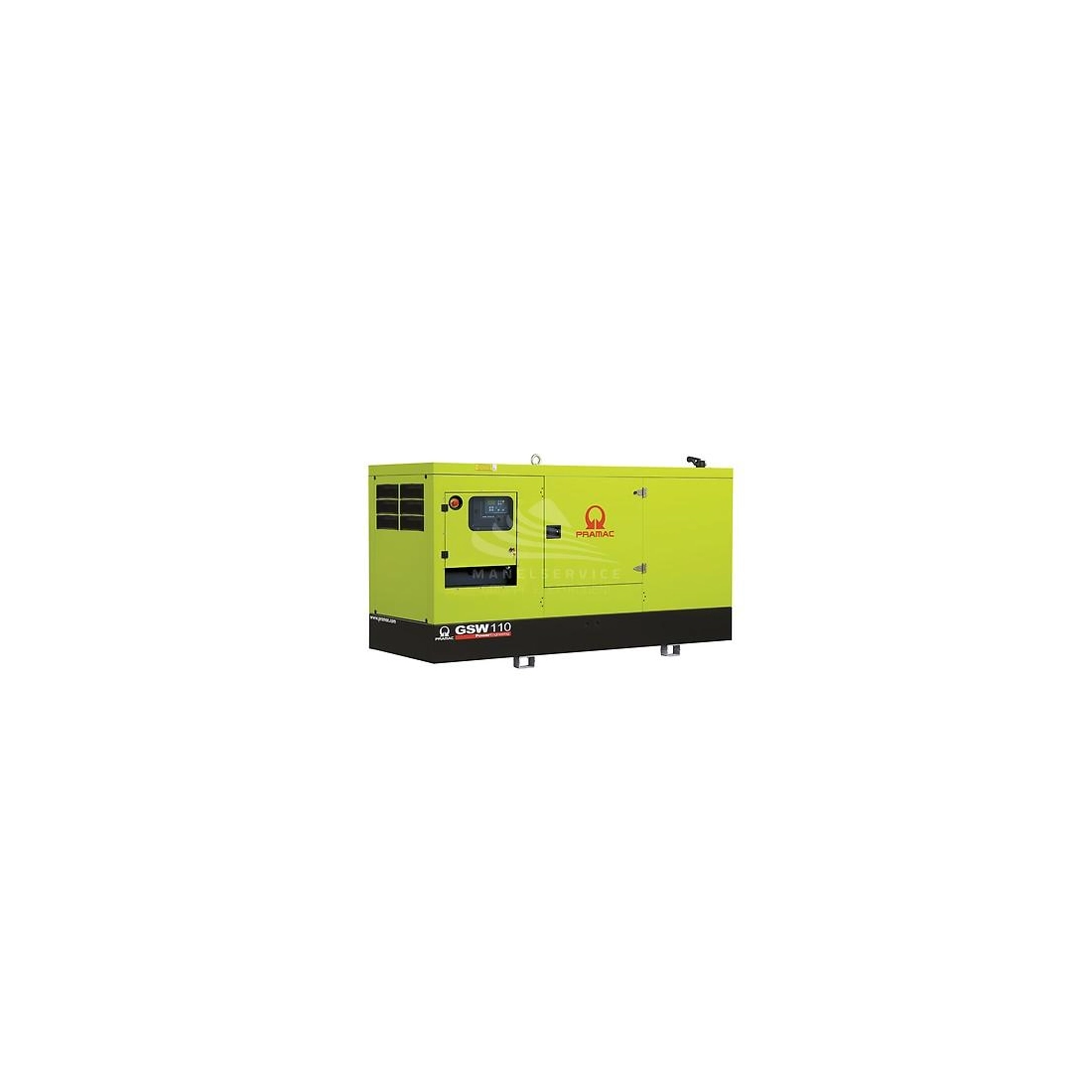

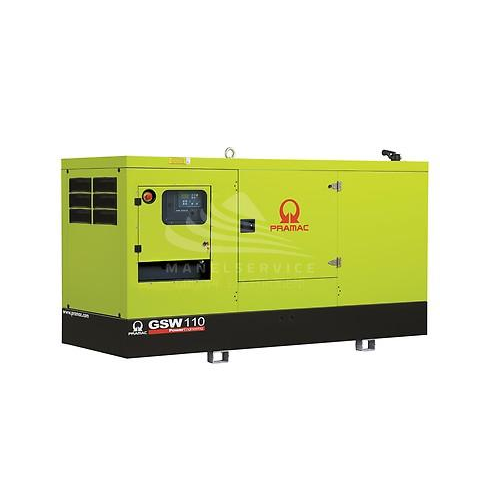

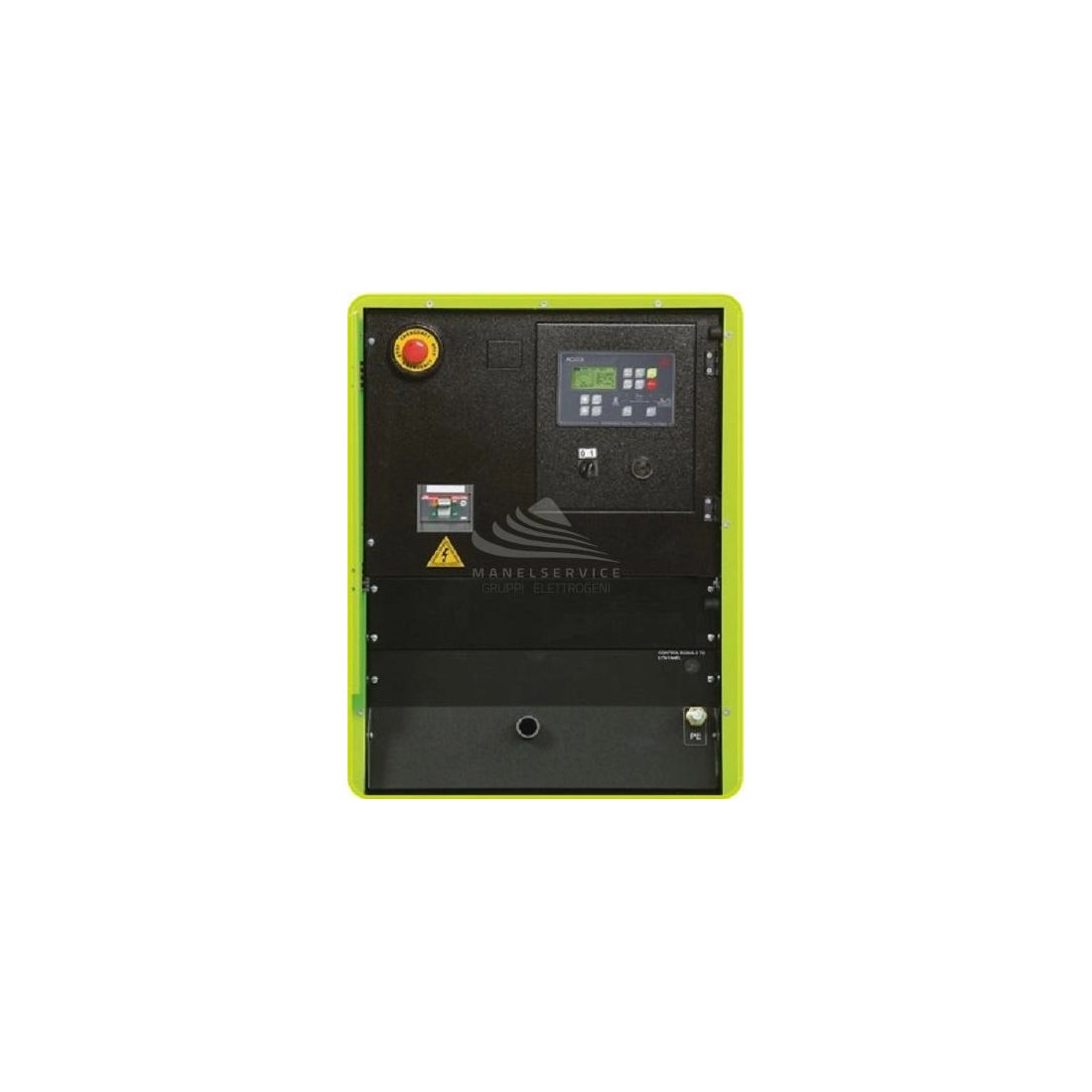

PRAMAC GSW110V COFANATO CON QUADRO COMANDO AUTOMATICO


Phase
Three phase
Height (mm)
1760
Length (mm)
3000
Starting system
Electric
Width (mm)
1150
Engine manufacturer
Volvo
Engine
VOLVO TAD531GE, turbo intercooled
Poles
4
Cooling
Water
Maximum power three phase (KW)
90.36
Continuous power three phase (KW)
81.14
Maximum power three phase (KVA)
112.95
Continuous power three phase (KVA)
101.42
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Emissions Regulations
Stage 2
Speed governor
Mechanical
Engine capacity (cm³)
4760
Number cylinders
4
Cylinders' position
In line
Oil capacity (L)
13
Alternator
Mecc Alte ECP34-2S/4, brushless
Fuel tank capacity (L)
350
Consumption (L/h)
18 at 75% of the load / 24 at 100% of the load
Running time (h)
19.4 at 75% of the load / 14.6 at 100% of the load
Acoustic power
97 dB(A)
Acoustic pressure
68 dB(A) at 7 m
Dry weight (Kg)
1727
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional ATS
Voltage regulator
AVR
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
