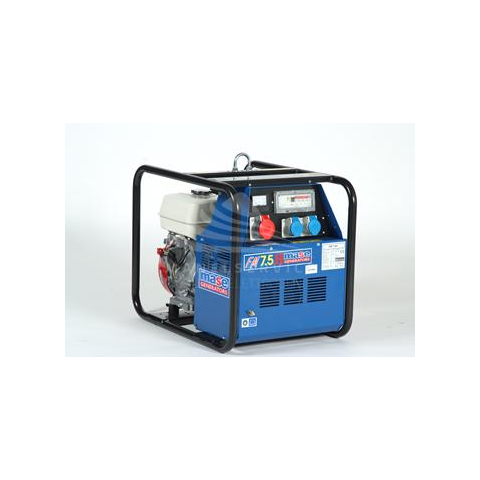

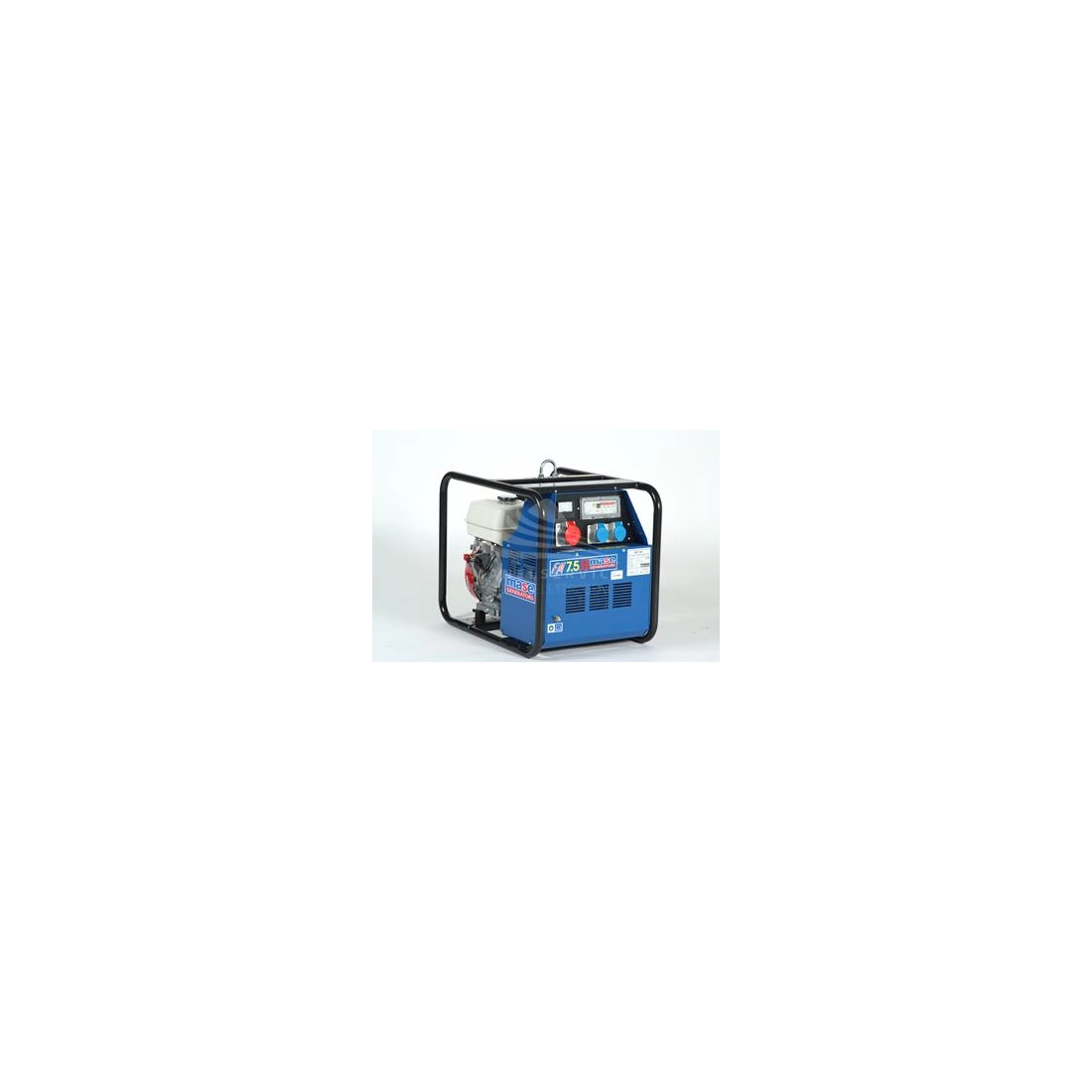

MASE FM 7.5 H

Reference 001890

OUT OF PRODUCTION

Maximum power Single-phase: 4.6 KW
Single-phase continuous use power: 3.3 KW
Maximum power three-phase: 8.75 KW
Three phase continuous use power: 8.125 KW
Fuel: Gasoline
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Honda GX390
Starting: Manual
Consumption: 2.6 Lt/h at 75% of the load
Length: 725 mm
Width: 515 mm
Height: 585 mm
Weight: 95 Kg

Download Scheda tecnica FM 7.5 H Download Technical data FM 7.5 H

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 4.6
Continuous power single phase (KW): 3.3
Maximum power single phase (KVA): 4.6
Continuous power single phase (KVA): 3.3
Maximum power three phase (KW): 8.75
Continuous power three phase (KW): 8.125
Maximum power three phase (KVA): 7
Continuous power three phase (KVA): 6.5
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A CE - 2 x 230V 16A 2P+T CE
Engine: Honda GX390, 4 stroke
Engine rpm (rpm): 3000
Ignition: Recoil
Starting system: Manual
Engine capacity (cm³): 389
Number cylinders: 1
Cooling: Air
Alternator: Synchronous
Fuel tank capacity (L): 6.5
Consumption (L/h): 2.6 at 75% of the load
Running time (h): 2.5 at 75% of the load
Acoustic power: 100 dB(A)
Acoustic pressure: 75 dB(A) at 7 m
Length (mm): 725
Width (mm): 515
Height (mm): 585
Dry weight (Kg): 95
Silenced: No
Super silenced: No
ATS Switch device: No ATS
Voltage regulator: No
Engine manufacturer: Honda

Brand

La linea di prodotti Mase marini è stata sviluppata per installazioni a bordo di imbarcazioni.
I modelli IS ( Intercooler System), generatori diesel dalle caratteristiche innovative, assicurano ai costruttori di imbarcazioni e agli utilizzatori finali estrema facilità d'installazione, alta efficienza, elevate prestazioni e silenziosità, garantendo al tempo stesso un bassissimo livello di impatto ambientale.

L'immagine è puramente indicativa

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
