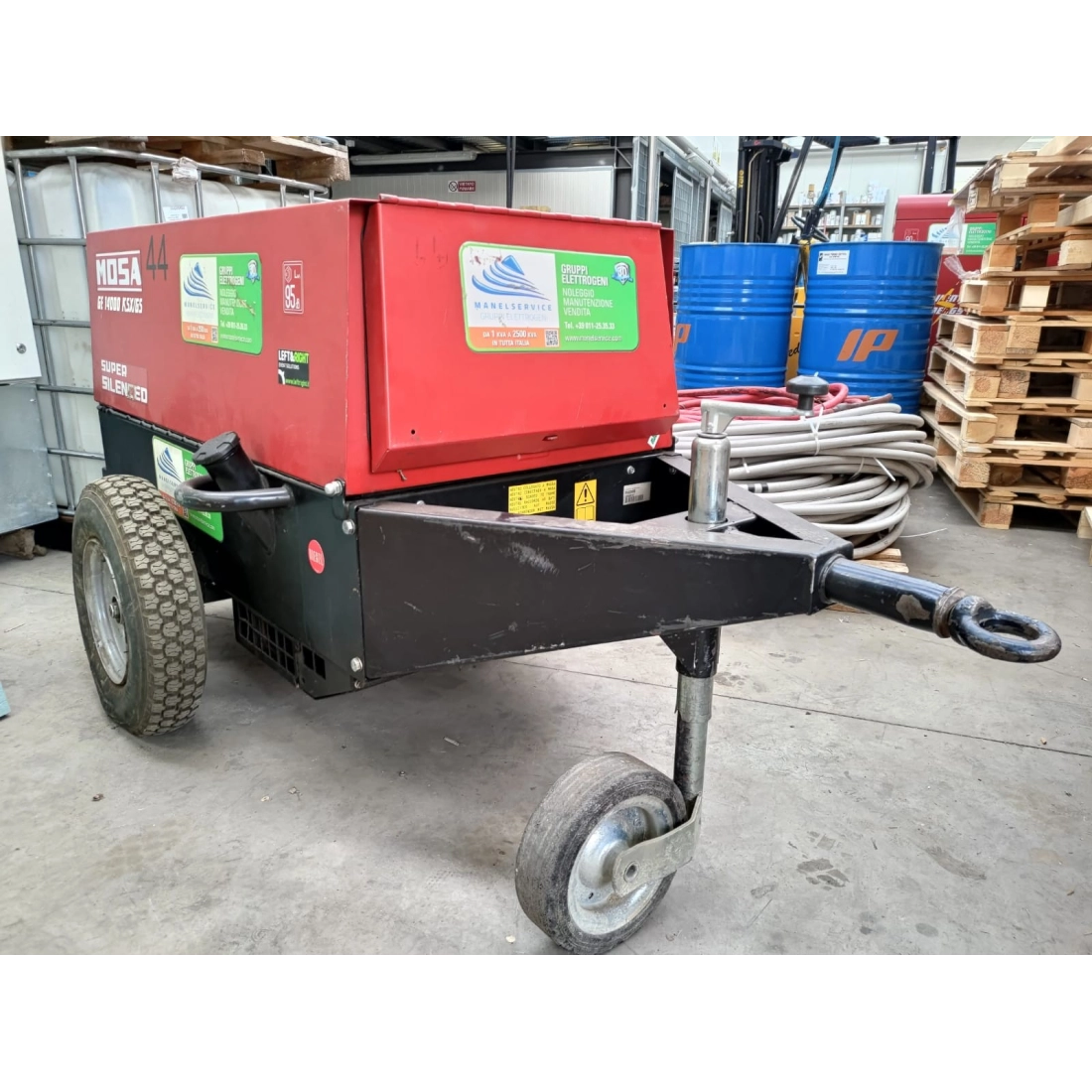

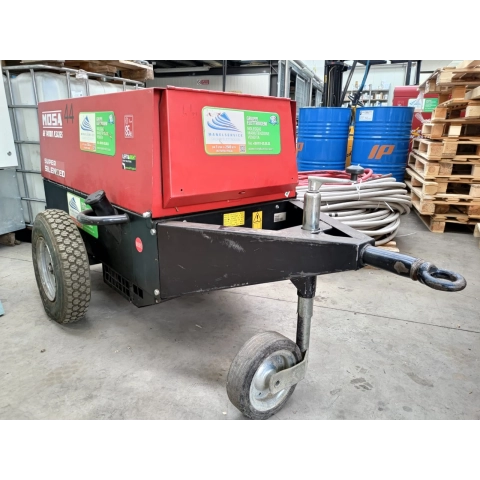

MOSA GE 14000 SXC/GS EAS USED

Reference USATO 9

SOLD

Download Scheda Tecnica GE14000 SXC/GS

Product Details
Description

Phase: Single phase / Three phase
Continuous power single phase (KW): 4
Continuous power single phase (KVA): 5
Maximum power three phase (KW): 12
Continuous power three phase (KW): 10.8
Maximum power three phase (KVA): 15
Continuous power three phase (KVA): 13.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400

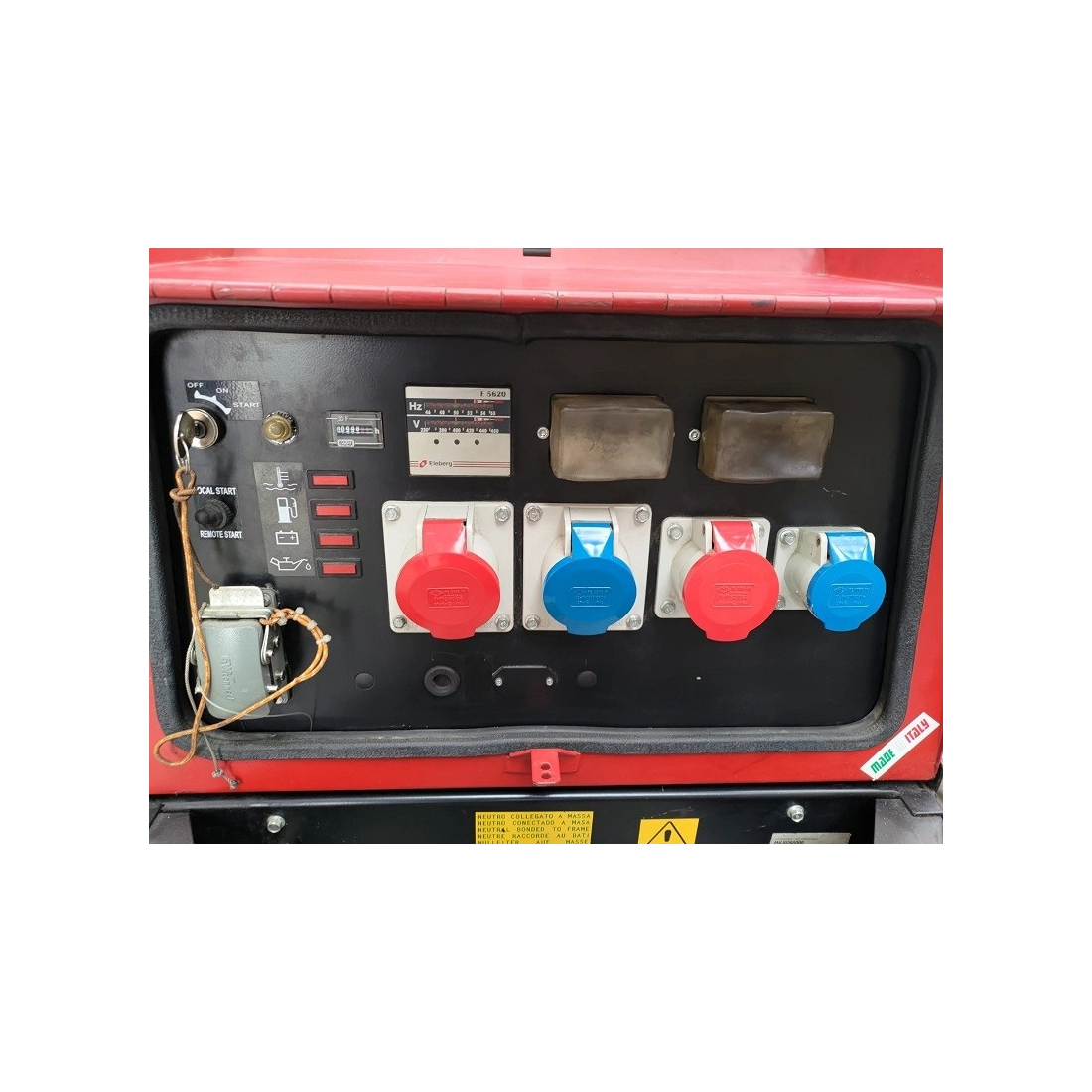

Sockets configuration: 1 x 400V 32A 3P+N+T CEE - 1 x 400V 16A 3P+N+T CEE - 1 x 230V 32A 2P+T CEE - 1 x 230V 16A
Engine: Lombardini 12LD477/2
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 954
Number cylinders: 2
Cooling: Air
Inyección: Direct
Alternator: Sincrono trifase, autoeccitato, autoregolato
Fuel tank capacity (L): 23
Running time (h): 8.2 at 75% of the load
Acoustic power: 96 dB(A)
Acoustic pressure: 71 dB(A) at 7 m
Length (mm): 1320
Width (mm): 790
Height (mm): 750
Dry weight (Kg): 315
Silenced: Yes
ATS Switch device: Optional ATS
Voltage regulator: Compound
Engine manufacturer: Lombardini

Brand

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
