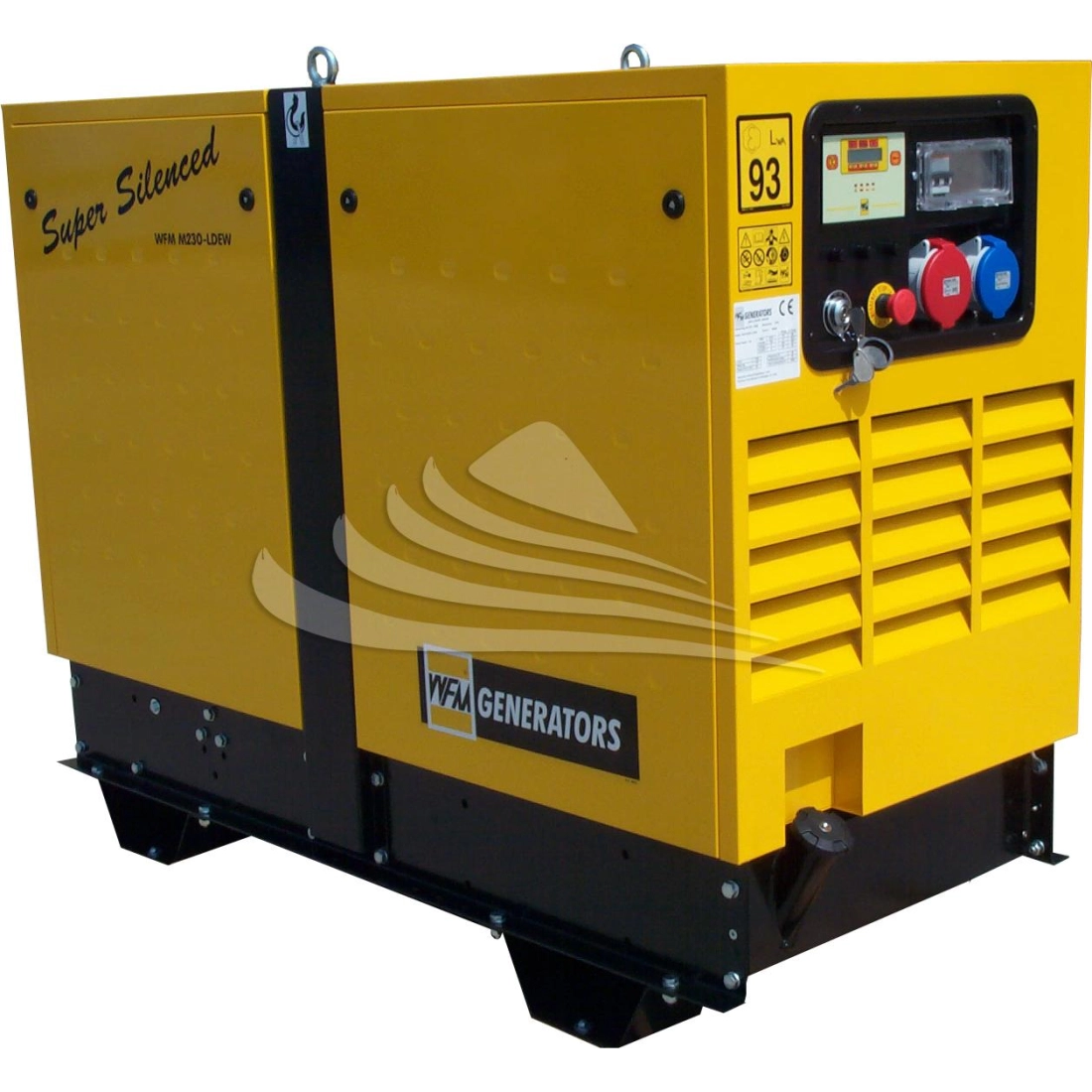

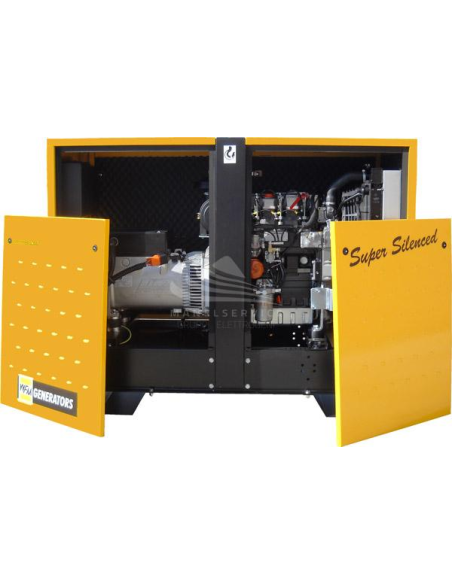

WFM SE12000-MTHE AVR


Phase
Single phase / Three phase
Height (mm)
1140
Length (mm)
1480
Starting system
Electric
Width (mm)
680
Engine manufacturer
Lombardini

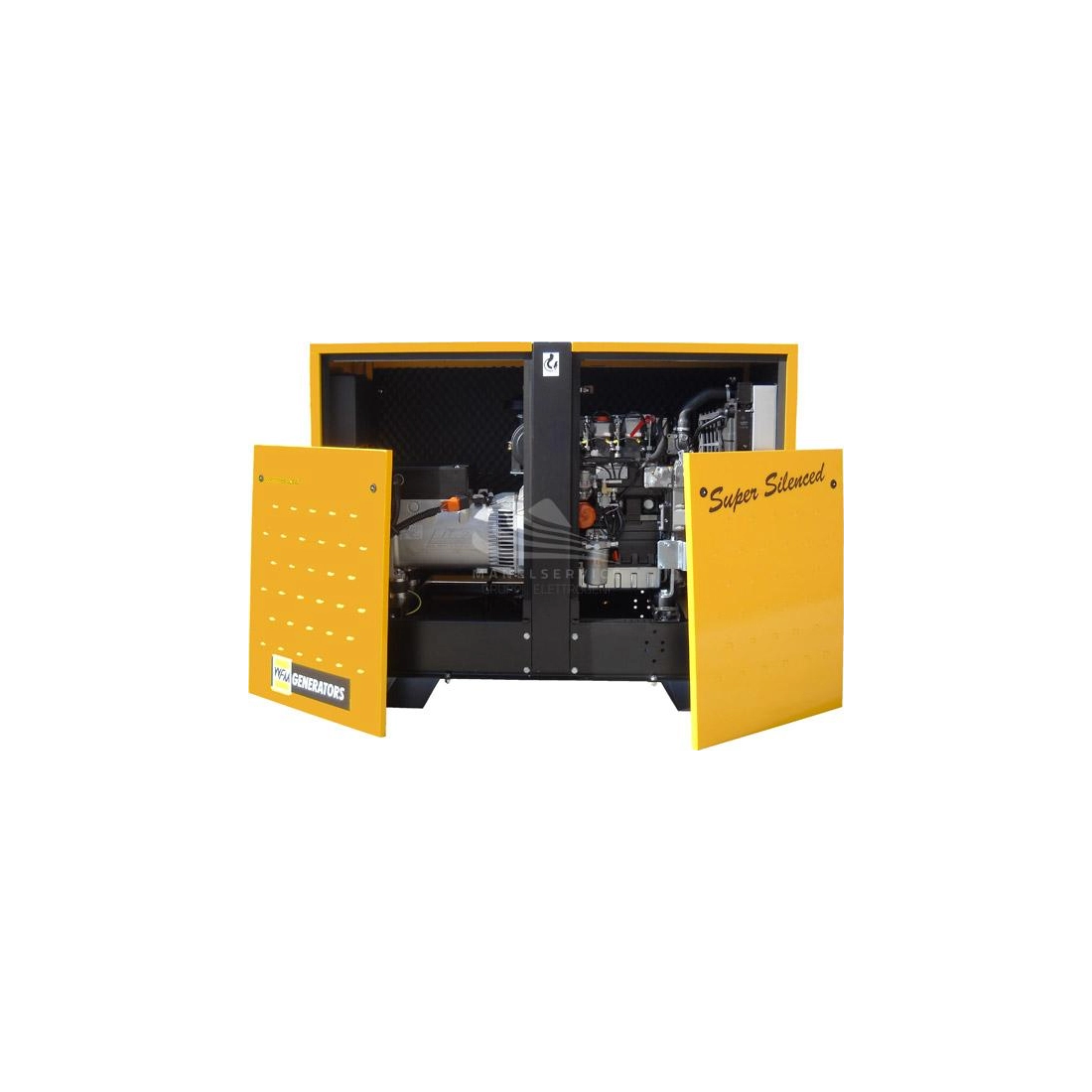

Engine
Lombardini LDW1603

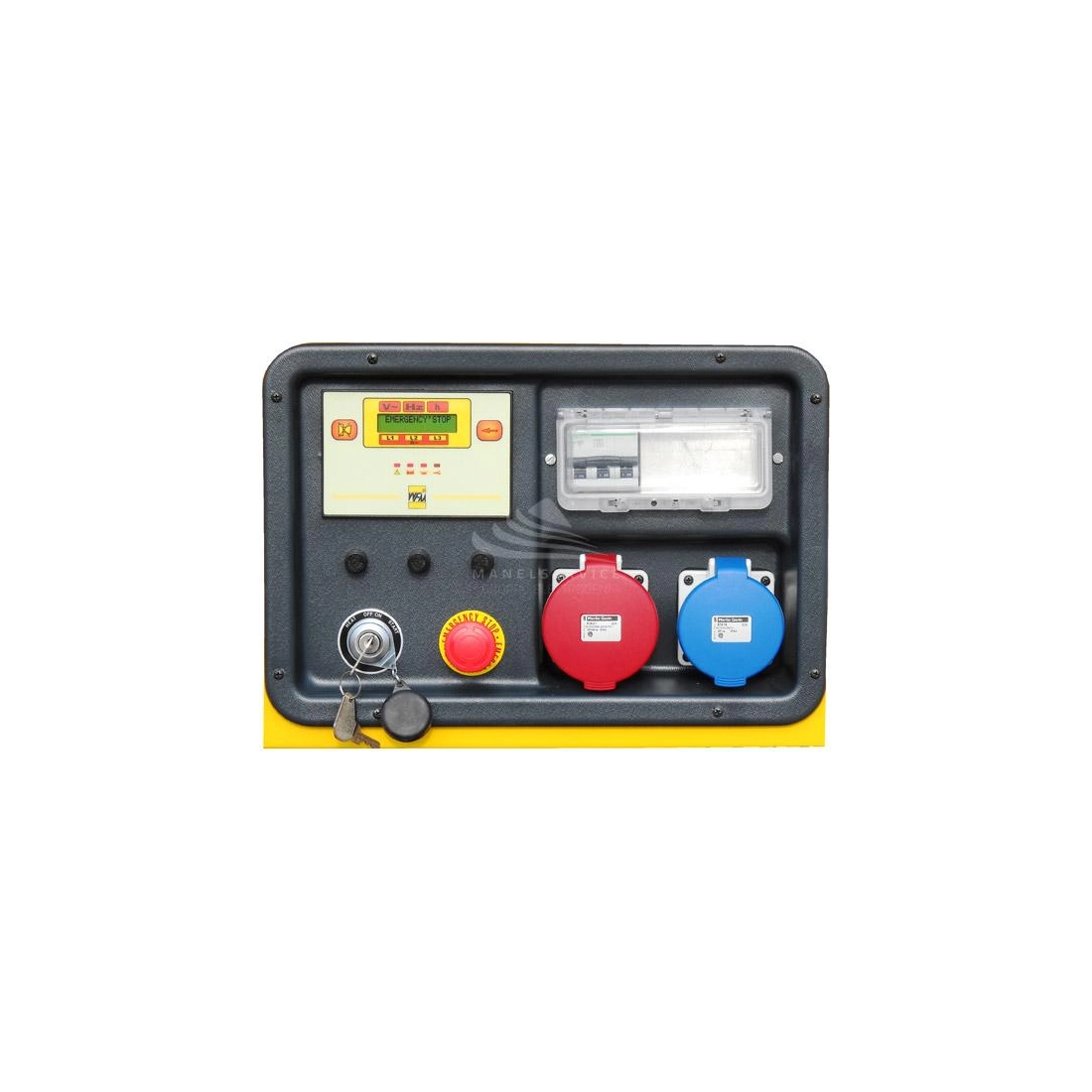

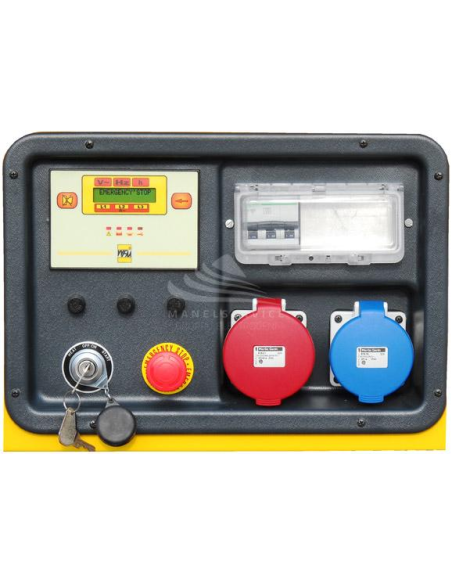

Sockets configuration
1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE
Cooling
Coolant Liquid
Maximum power single phase (KW)
4.4
Maximum power single phase (KVA)
5.5
Maximum power three phase (KW)
13.2
Maximum power three phase (KVA)
16.5
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Engine capacity (cm³)
1649
Number cylinders
3
Oil capacity (L)
3.8

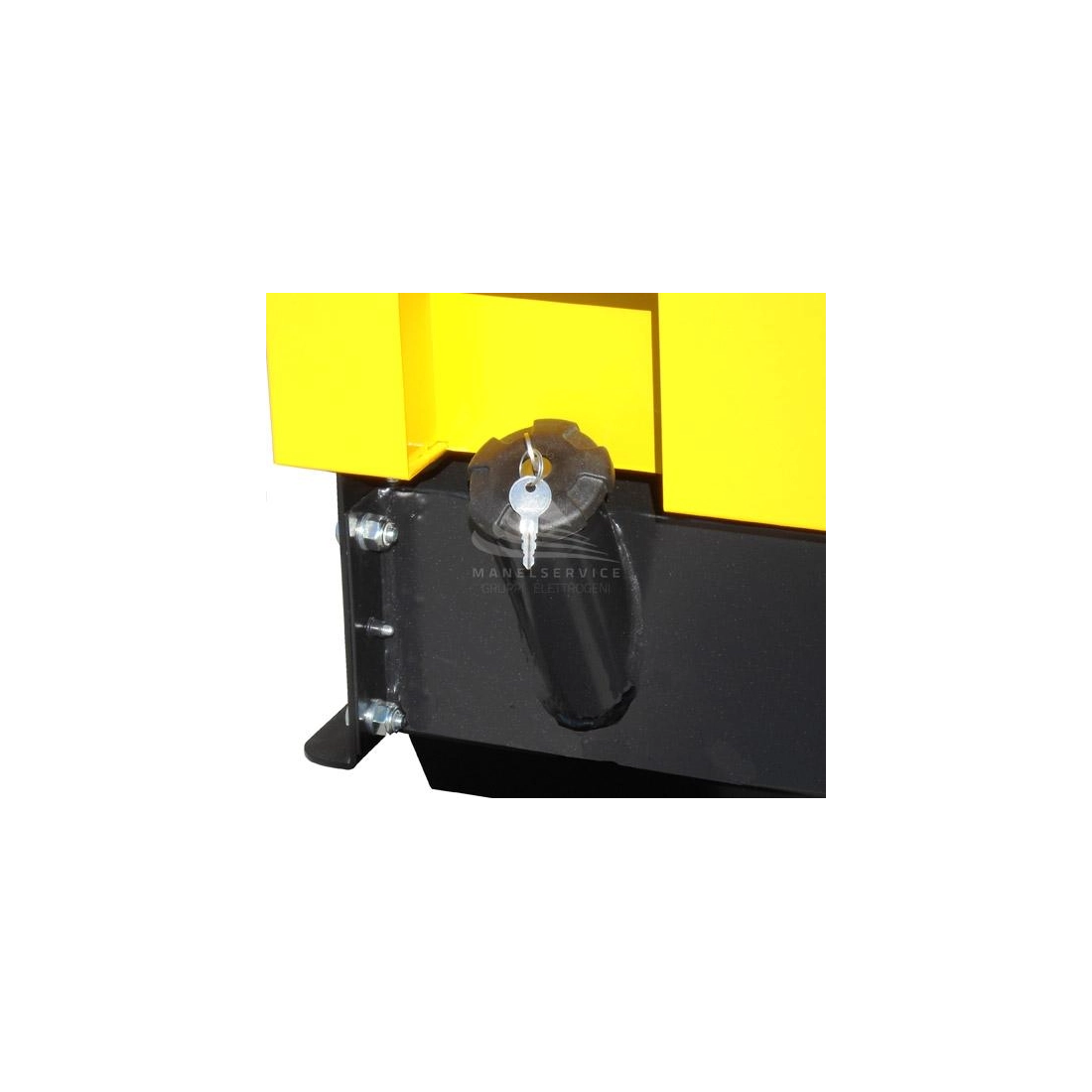

Fuel tank capacity (L)
46
Consumption (L/h)
5.3 at 100% of the load
Running time (h)
8.67 at 100% of the load
Acoustic power
94 dB(A)
Acoustic pressure
69 dB(A) at 7 m
Dry weight (Kg)
480
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional ATS
Voltage regulator
No
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
