TESSARI ERLE EUW1000

Reference ERLE EUW1000 AUT ATS

Phase type: Three-phase 3F+N
Continuous power PRP cos?0,8: 1000 kVA / 800 kW
Stand-by power STB cos?0,8: 1100 kVA / 880 kW
Voltage: 400V/230V
Fuel: Diesel
Frequency: 50 Hz
RPM: 1500 rpm
Rated current: 1433 A
Sound pressure at 7m.: 70 dBA ± 3dB
Performance Class: ISO 8528-5 G2
Engine: BAUDOUIN 12M6G1100/S
Tank capacity: 1000 lt.
AVR
ATS FRAMEWORK: Optional
Length: 5450 mm
Width: 2620 mm
Height: 2230 mm
Weight: 11200 Kg.

Download Scheda Tecnica EUW 1000

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 880
Continuous power three phase (KW): 800
Maximum power three phase (KVA): 1100
Continuous power three phase (KVA): 1000
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminal box
Engine: BAUDOUIN 12M26G1100/S
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Electric
Engine capacity (cm³): 31800
Number cylinders: 12
Cylinders' position: V 60°
Oil capacity (L): 113
Cooling: Coolant Liquid
Alternator: Marelli, brushless
Poles: 4
Protection degree: IP23
Fuel tank capacity (L): 1000
Consumption (L/h): 154 @ 75%
Running time (h): 6.5 at 75% of the load
Acoustic pressure: 70 dB(A)
Length (mm): 5450
Width (mm): 2230
Height (mm): 2620
Dry weight (Kg): 11200
Silenced: Yes
Super silenced: Yes
Brushes: No
PMG: No
Product type: Generator
ATS Switch device: Optional ATS
Type of alternator: Constant Speed
Voltage regulator: AVR
Engine manufacturer: Perkins

Brand

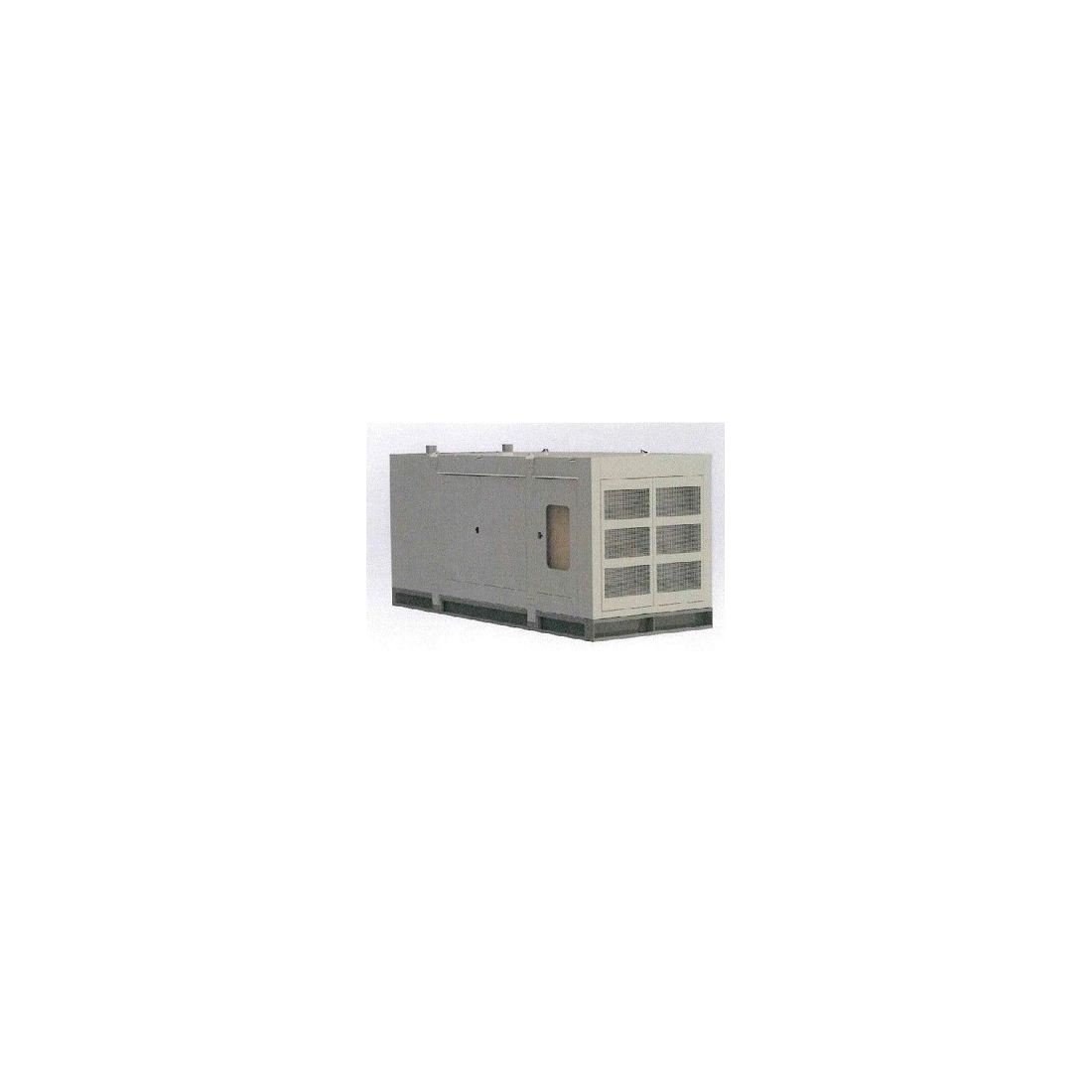

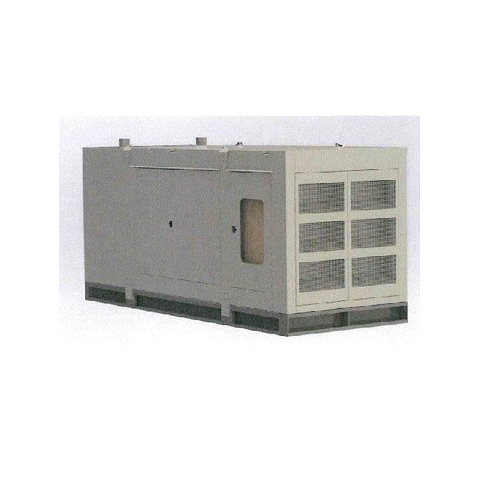

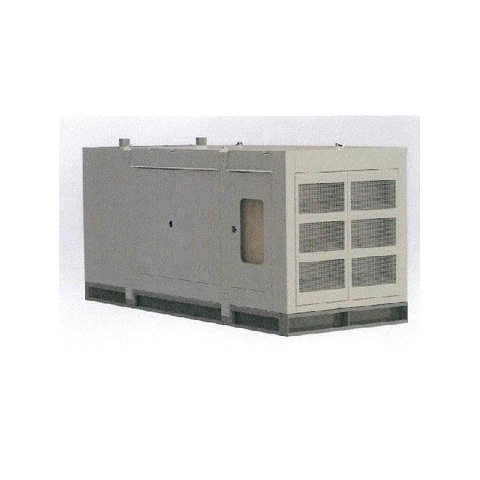

TESSARI ERLE EUW1000 SILENCED GENERATOR SET WITH AUTOMATIC CONTROL UNIT

Tessari ERLE EUW1000 is an 800 Kw generator set in continuous use, Baudouin diesel engine model 12M26G1100/S, Marelli MJB400MB4 alternator, silenced casing and residential muffler.

STANDARD SETTING STANDARD generating set Tessari ERLE EUW1000

Motor and Alternator with single-bearing coupling
Base in galvanized and powder-coated sheet steel
Tank with filling cap complete with mechanical level indicator and inspection and cleaning flange
Bonnet with sound-absorbing material CL. Bs-2,d0 with high noise absorption characteristics
Intake and fuel return connections to the engine
Liquid collection tank with drainage hole
Liquids (oil and antifreeze -35°C)
Electrical control panel with thermomagnetic switch

TECHNICAL DATA TESSARI GENSET ERLE EUW1000
Continuous power PRP cos?0,8: 1000 kVA / 800 kW
SBP stand-by power cos?0,8: 1100 kVA / 880 kW
Phases: 3F+N
Voltage: 400V
Rated current: 1443 A
Frequency / speed: 50 Hz / 1500 rpm
Sound pressure at 7m.: 70 dBA ± 3dB
Loadstep : 63.1%
Performance Class ISO 8528-5: G2
Tank capacity: 1000 lt.

CHARACTERISTICS ERLE EUW1000 WEAVING ALTERNATOR
Brand: MARELLI
Model: MJB 400 MB4
Poles: 4
Phases: 3P+N
Degree of Protection: 21
Wraps: H
Terminals: 6
Electronic Voltage Reg.

ENGINE FEATURES ERLE EUW1000
Manufacturer: Baudouin
Model: 12M26G1100/S
Net power: PRP 800 kW
Net power: SBP 880 kW
Power supply: Diesel
Number of cylinders: 12V
Displacement: 31800 l
Electric circuit voltage: 24V
RPM Regulator: Electronic
Engine oil consumption: < 0.3% g/kWh
Engine oil quantity: 113 l
Engine antifreeze capacity: 148 l
Comb. consumption 110% SBP: 226.9 l/h
Comb. consumption 100%: PRP 205 l/h
Comb. consumption 75%: PRP 154.1 l/h
Comb. consumption 50%: PRP 105.7 l/h

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
