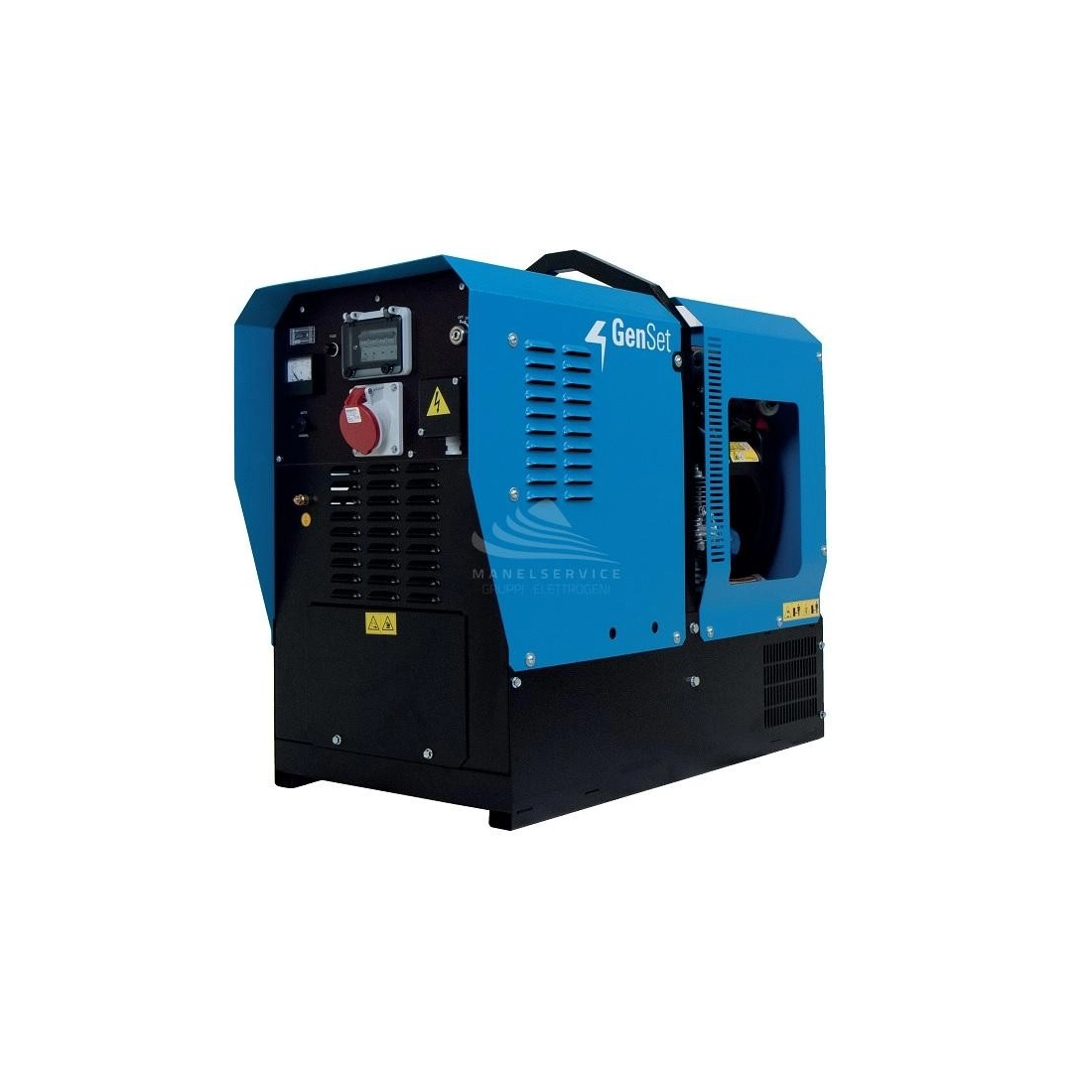

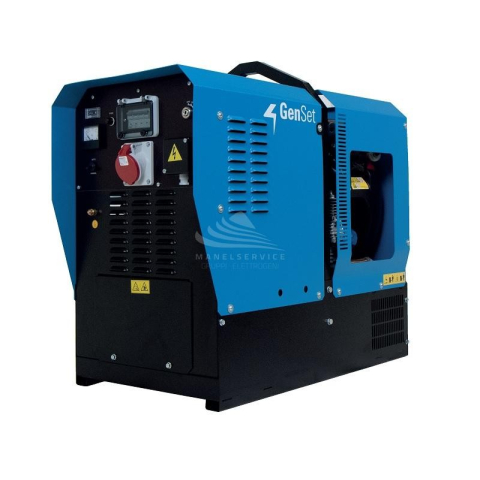

GENSET MG 12 I-H/AE - SINGLE-PHASE/THREE-PHASE GENERATOR 11 KVA AVR

Reference MG 12 I-H/AE

OUT OF PRODUCTION

Maximum power Three-phase: 11 KVA
Maximum power Three-phase: 8.8 KW
Continuous use power Three-phase: 10 KVA
Continuous use power Three-phase: 8 KW
Maximum power Single-phase: 4 KVA
Maximum power Single-phase: 3.2 KW
Fuel: Petrol
Voltage: 230/400 V
Frequency: 50 Hz
Engine: Honda GX 630 OHV (STAGE V)
Length: 904 mm
Width: 507 mm
Height: 823 mm
Weight: 148 Kg
Super silenced
AVR

Download Scheda tecnica MG 12 I-H/AE Download Technical data MG 12 I-H/AE

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 3.2
Maximum power single phase (KVA): 4
Maximum power three phase (KW): 8.8
Continuous power three phase (KW): 8
Maximum power three phase (KVA): 11
Continuous power three phase (KVA): 10
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400

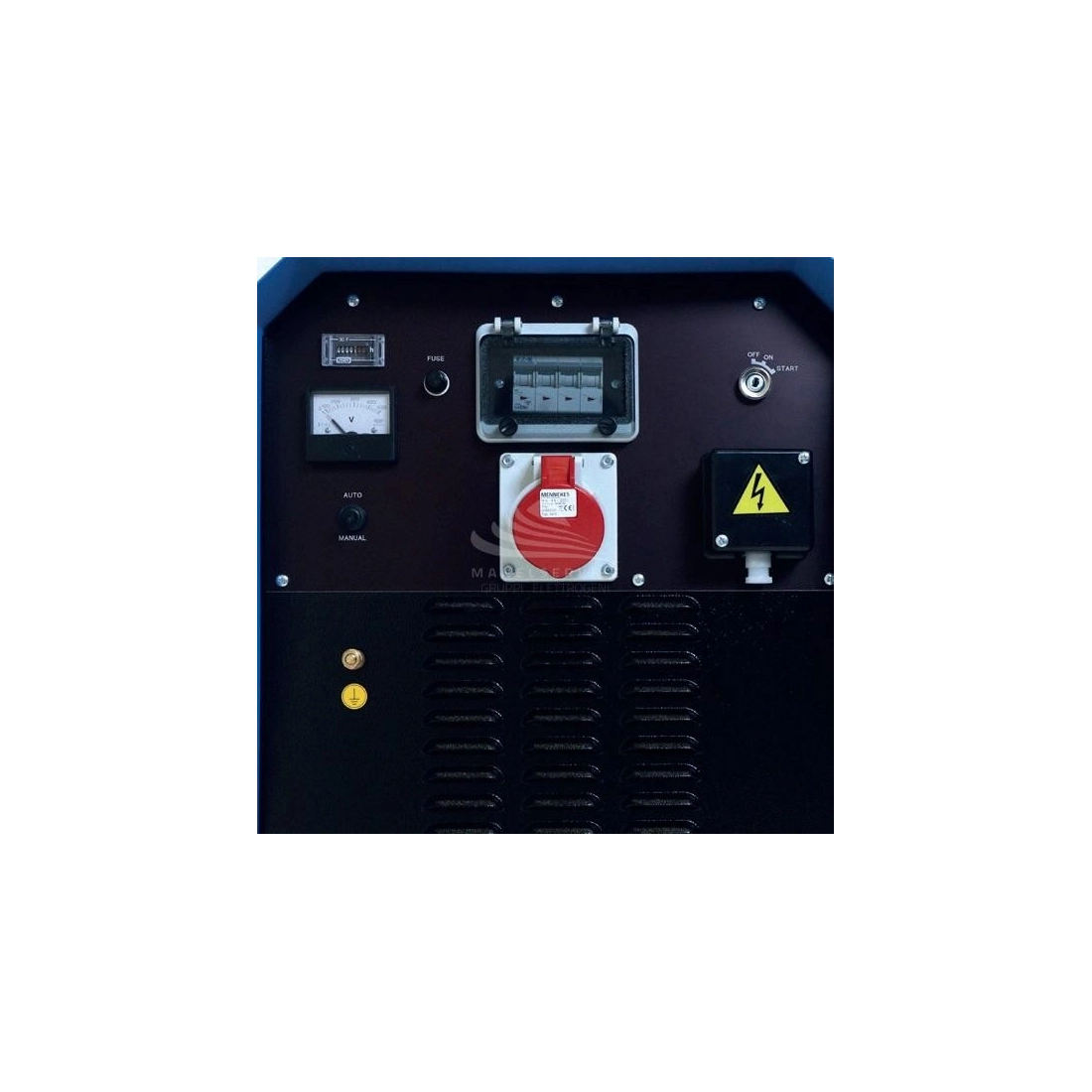

Sockets configuration: 1 x 400V 16A CEE - 1 x 230V 16A CEE

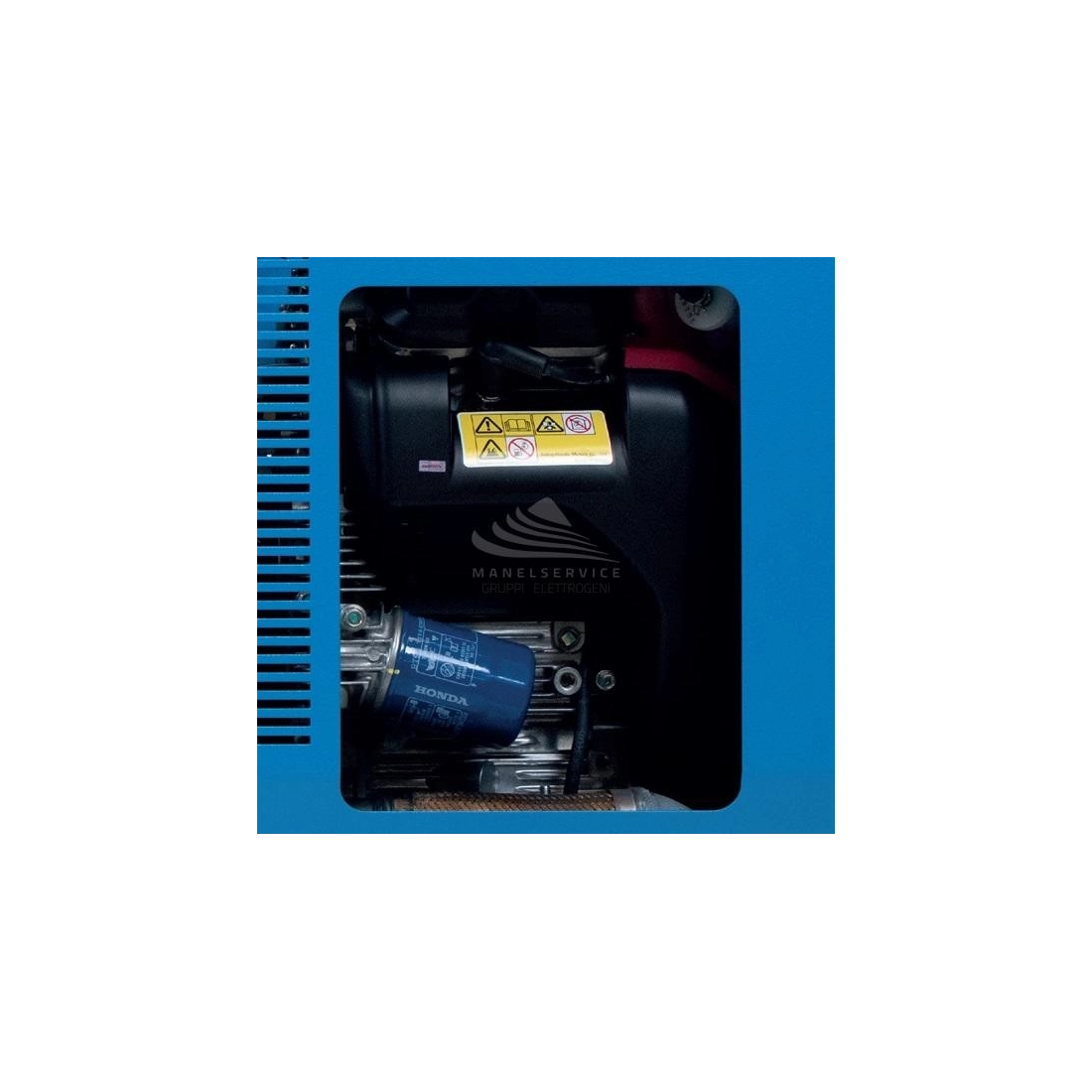

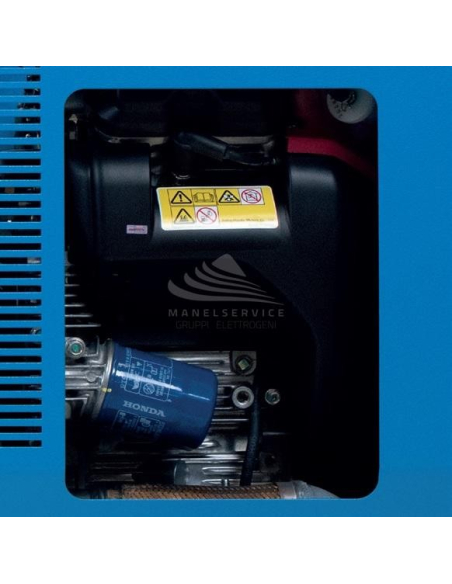

Engine: Honda GX630, 4 stroke, OHV
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 688
Number cylinders: 2
Cooling: Air
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Fuel tank capacity (L): 29
Consumption (L/h): 5.5
Running time (h): 5.27
Acoustic power: 98 dB(A)
Acoustic pressure: 73 dB(A) at 7 m
Length (mm): 904
Width (mm): 507
Height (mm): 823
Dry weight (Kg): 148
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Honda

Brand

GENSET MG 12 I-H/AE

The GENSET MG 12 I-H/AE is a single-phase/three-phase 11 KVA petrol generator with electric start and AVR voltage regulator. This generator is also available in the version with automatic panel and remote control.
The GENSET MG 12 I-H/AE also has a low fuel consumption: only 5.5 Lt/h at 75% of the load.
The GENSET MG 12 I-H/AE generator set, thanks to the high quality and efficiency of its components, is ideal for various types of work: from small hobby jobs to large construction sites.

Images and technical data are not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
