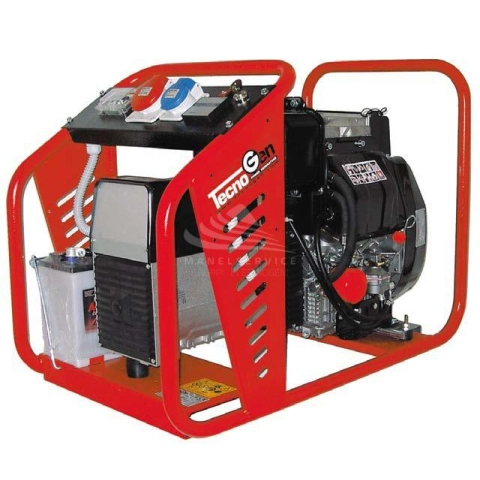

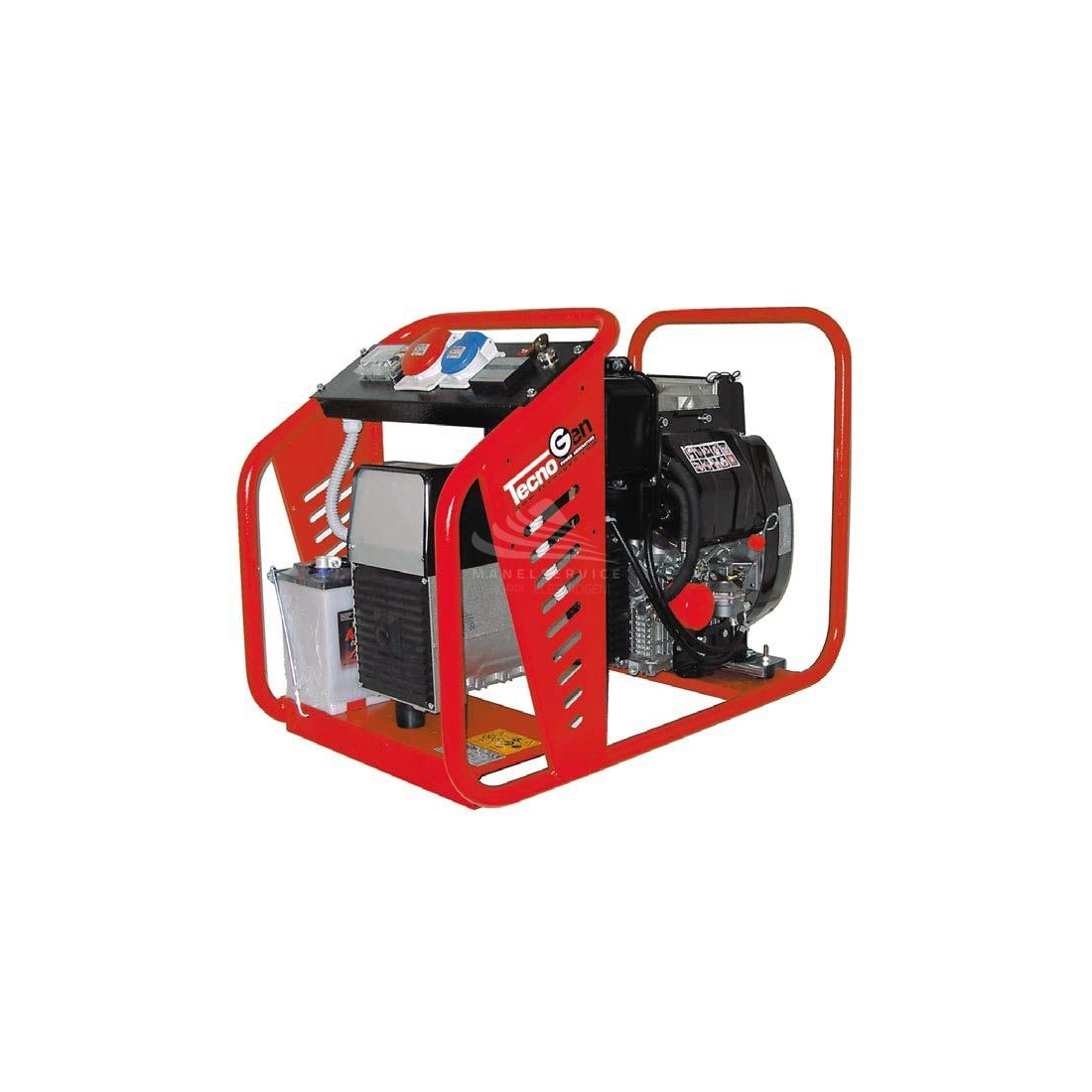

TECNOGEN H2700

TECNOGEN H2700
TECNOGEN H2700
LD 9000 TE

OUT OF PRODUCTION

Download Scheda tecnica LD9000TE

Phase
Single phase / Three phase
Height (mm)
660
Length (mm)
920
Starting system
Electric
Width (mm)
520
Engine manufacturer
Lombardini
Engine
HONDA GC160
Cooling
Air
Maximum power single phase (KW)
3
Maximum power single phase (KVA)
3.8
Maximum power three phase (KW)
7.2
Maximum power three phase (KVA)
9
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Engine capacity (cm³)
654
Number cylinders
2
Fuel tank capacity (L)
4
Consumption (L/h)
2.2
Running time (h)
1.8
Dry weight (Kg)
135
Silenced
No
Super silenced
No
ATS Switch device
Optional ATS
Voltage regulator
No
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
