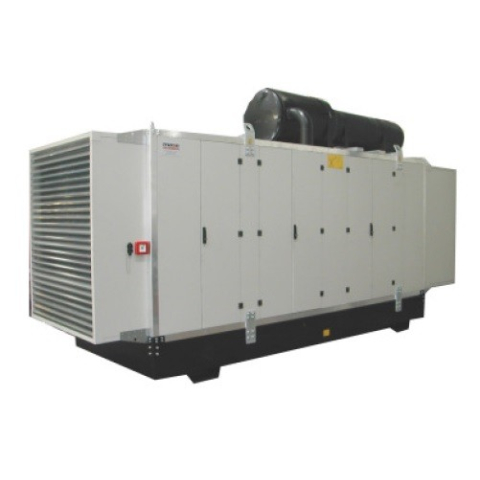

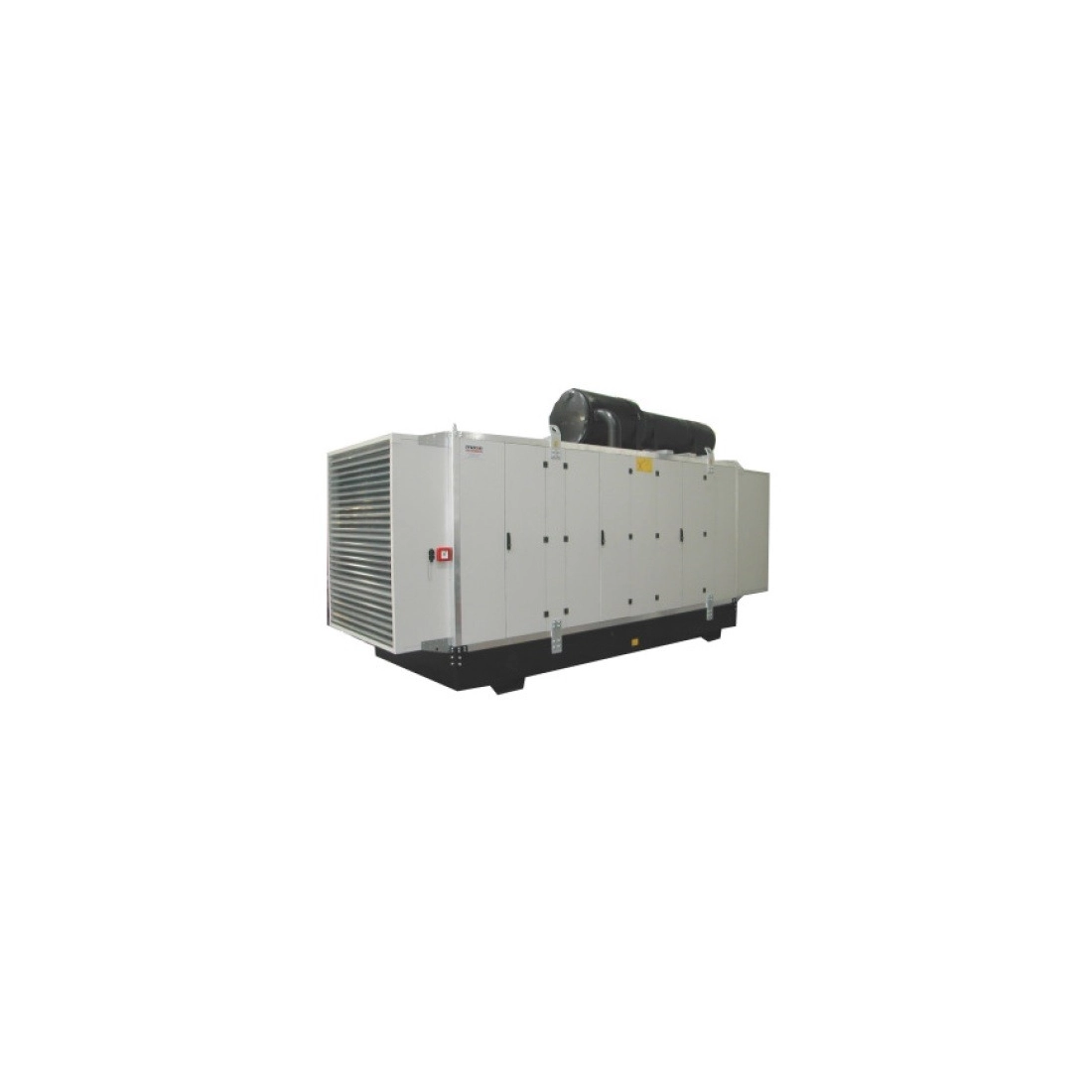

MASE MPL 550 S 550 KVA Silenced Generating Set with ATS

Reference MPL 550 S-P ATS

Phase Type: Three-phase
Power supply: diesel
Maximum three-phase power: 550 KVA
Three-phase continuous use power: 500 KVA
Power factor: 0.8
Alternator: synchronous
Engine: Perkins 2506C-E15TAG2
Cooling: water
Cubic Capacity: 15200 c.c.
Number of cylinders: 6
Maximum power: 664 HP
RPM: 1500
Tank capacity: 370
Autonomy: 4.5 h at 75% of load
Starting: electric
Length: 4730 mm
Width: 1800 mm
Height: 3080 mm
Weight: 6500 Kg.

Download Technical Data MPL 550 S-P

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 440
Continuous power three phase (KW): 400
Maximum power three phase (KVA): 550
Continuous power three phase (KVA): 500
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: 2506C-E15TAG2
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Electric
Engine capacity (cm³): 15200
Number cylinders: 6
Cooling: Water
Alternator: Synchronous
Poles: 4
Mechanical power (hp): 664
Fuel tank capacity (L): 370
Consumption (L/h): 82.2 Lt./h @ 75%
Running time (h): 4.5 at 75% of the load
Acoustic power: 95 dB(A)
Length (mm): 4730
Width (mm): 1800
Height (mm): 3080
Silenced: Yes
ATS Switch device: ATS Included
Type of alternator: Constant Speed
Engine manufacturer: Perkins
Power factor control: 0.8

Brand

Generating sets with diesel engines cooled by water or oil, which meet all power requirements and ensure high performance and high quality standards.
The product offers a wide range of customization options. Engines conforming to the directive 2002/88/EC "Pollutant Emissions".

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Unavailable

€106,590.00 €106,590.00

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
