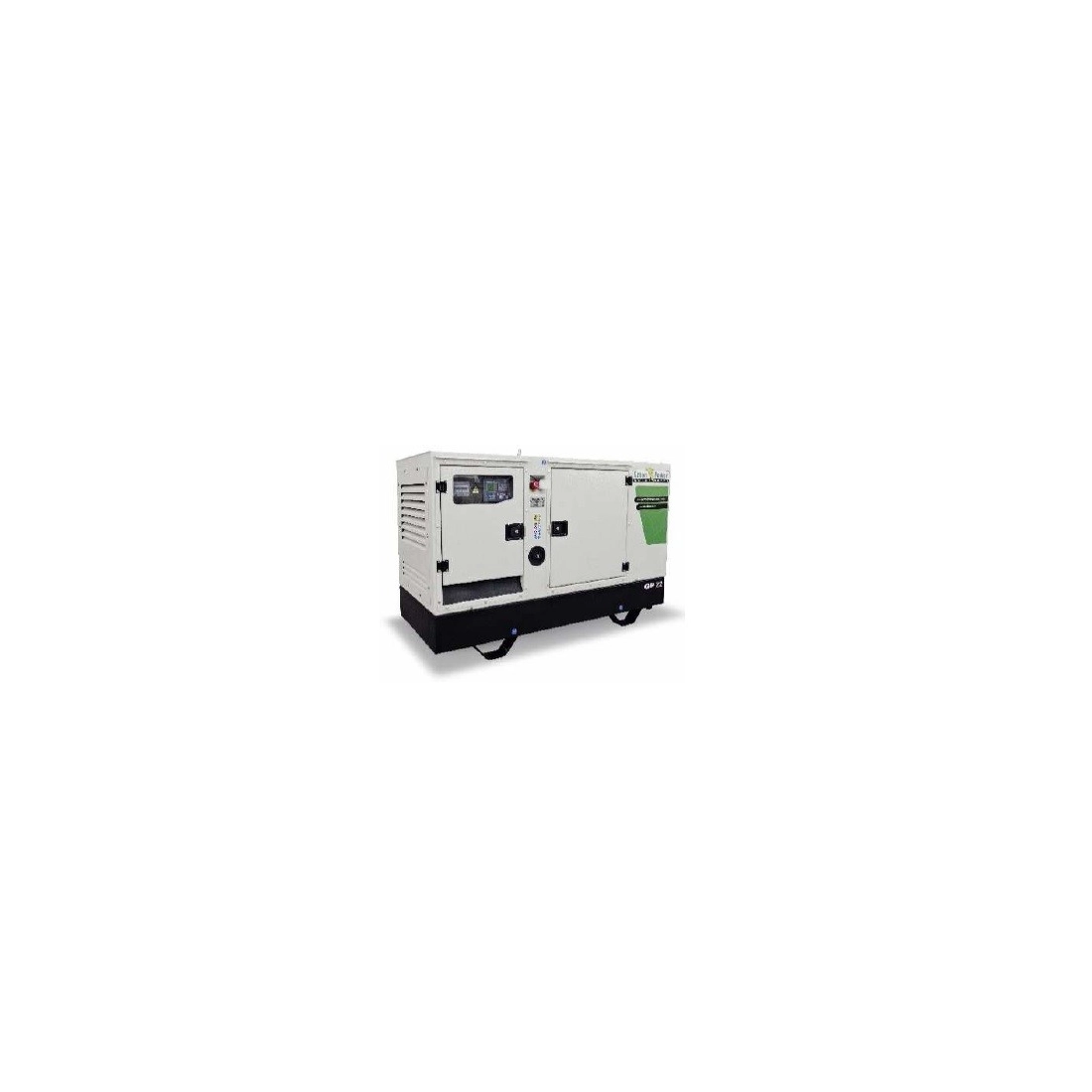

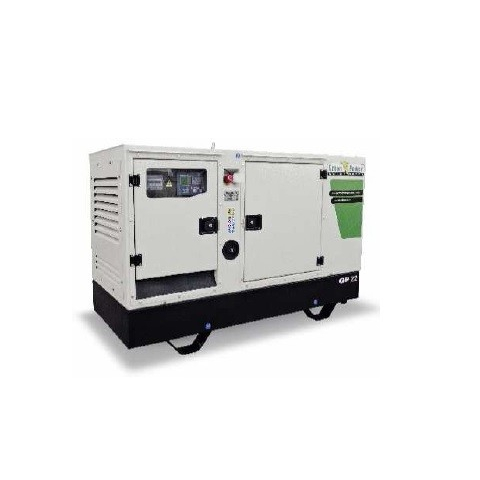

GREEN POWER GP33S B-N

Reference GP 33 S B N A

Phase Type: Three-phase
Three-phase continuous power: 24 kW
Three-phase continuous power: 30 kVA
Maximum three-phase LTP power: 26.4 kW
Maximum three-phase LTP power: 33 kVA
Fuel: Diesel
Voltage: 230V/400V
Frequency: 50 Hz
Manufacturer & type: Baudouin 4M06G35/5
1500 rpm
Cubic Capacity: 2300 cc.
Alternator 4 poles
AVR
Noise level at 7 mt.: 70 dB(A)
Tank: 120 Lt.
Length: 2100 mm
Width: 870 mm
Height: 1165 mm
Dry weight: 940 Kg. approx.

Download Technical Data GP33S-N

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 26.4
Continuous power three phase (KW): 24
Maximum power three phase (KVA): 33
Continuous power three phase (KVA): 30
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Baudouin 4M06G35/5
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Electric 12 Vcc
Engine capacity (cm³): 2300
Number cylinders: 4
Cooling: Water
Alternator: MECC ALTE ECP28-VL/4
Poles: 4
Protection degree: IP23
Motor insulation class: H
Fuel tank capacity (L): 100
Consumption (L/h): 5.61 at 75% of the load
Running time (h): 17.9 at 75% of the load / 13.4 at 100% of the load
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 2100
Width (mm): 870
Height (mm): 1165
Dry weight (Kg): 940
Silenced: Yes
Brushes: No
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: BAUDOUIN

Brand

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
