      02AG121

      Phase Type: Single-Phase
      Fuel: Diesel - GAS
      Frequency (Hz): 50
      Voltage (V): 230
      Nominal Thermal Power: 85.62 KW - 73630 Kcal/H - 294518 BTU/H
      Thermal Power Output: 79. 37 KW - 68255 Kcal/H - 273019 BTU/H
      Thermal Efficiency (%): 92.7
      Air Flow Rate (m³/H): 7200
      Static Pressure Available: 200 Pa - 20 mm H₂O
      Thermal Heat Gain At 20°C (°C): 47
      Effective Working Range (M): 45
      Gasoil Consumption (Kg/H): 6. 77
      Methane Consumption (m³/H): 7.935
      Methane Feeding Pressure (mbar): 20
      LPG Consumption (m³/H - Kg/H): 3.127 - 6. 10
      LPG Feeding Pressure (mbar): 37
      Electrical Power (W): 700
      Length (mm): 1648
      Width (mm): 770
      Height (mm): 1133
      Dry Weight (Kg): 172

      List price
      5,696.18 € tax incl.
      4,669.00 € tax excl.
      Discounted Price
      3,025.60 € tax incl.
      2,480.00 € tax excl.
      Shipping from 50.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      BIEMMEDUE
      02AG121

      Data sheet

      Phase
      Single phase
      Fuel
      Diesel - GAS
      Frequency (Hz)
      50
      Voltage (V)
      230
      Rated heat power
      85.62 KW - 73630 Kcal/h - 294518 BTU/h
      Output heat power
      79.37 KW - 68255 Kcal/h - 273019 BTU/h
      Heat efficiency (%)
      92.7
      Air flow (m³/h)
      7200
      Available static press
      200 Pa - 20 mm H₂O
      Termperature rise at 20°C (°C)
      47
      Effective heat range (m)
      45
      Oil consumption (Kg/h)
      6.77
      Natural Gas consumption (m³/h)
      7.935
      Inlet pressure Natural Gas (mbar)
      20
      LPG consumption (m³/h - Kg/h)
      3.127 - 6.10
      Inlet pressure LPG (mbar)
      37
      Power consumption (W)
      700
      Ø flue (mm)
      150
      Ø outlet hose - L.max 1 way (mm - m)
      500 - 25
      Ø outlet hose - L.max 2 ways (mm - m)
      400 - 15
      Ø outlet snorkel - L.max (mm - m)
      100 - 5
      Ø inlet hose - L.max (mm - m)
      510 - 6
      Length (mm)
      1648
      Width (mm)
      770
      Height (mm)
      1133
      Dry weight (Kg)
      172

      Specific References

      New

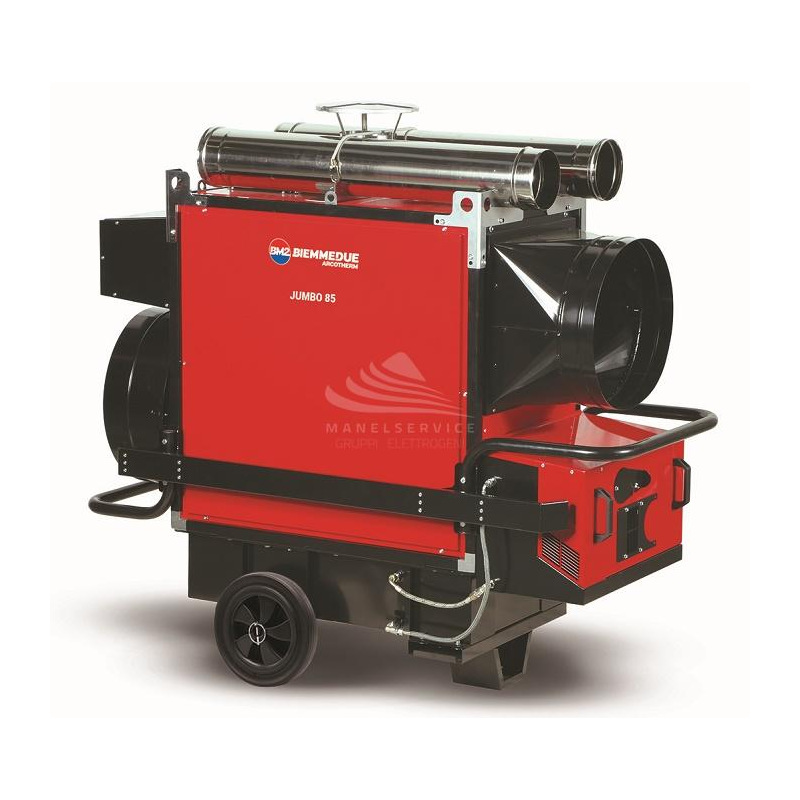

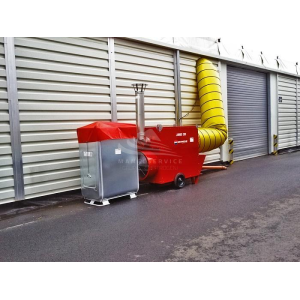

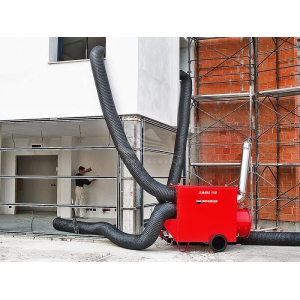

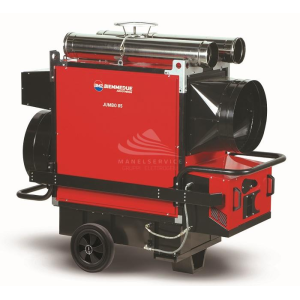

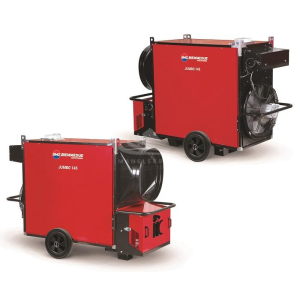

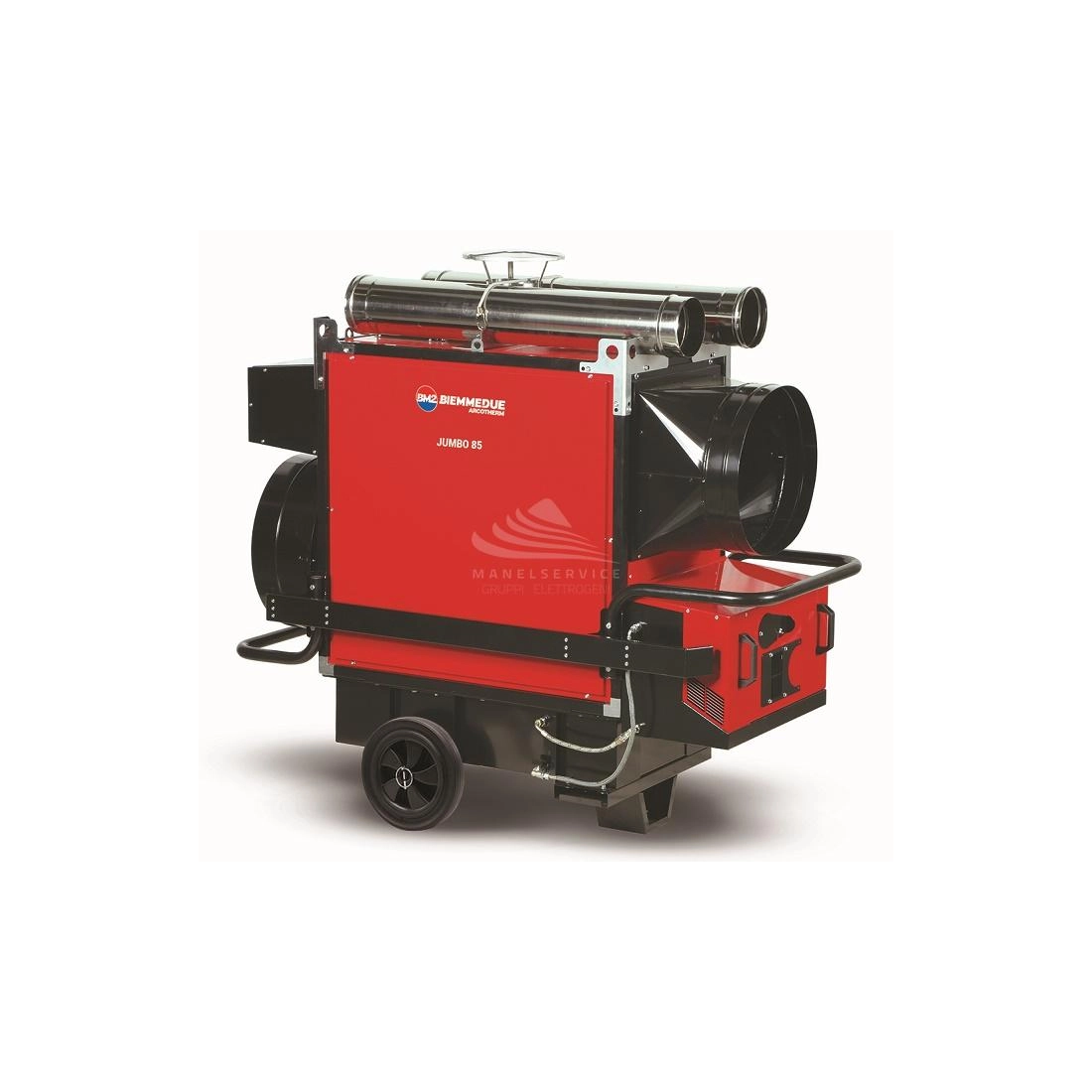

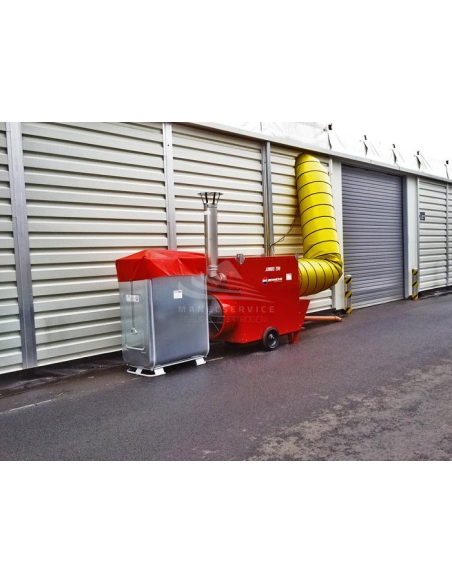

      BM2 HOT AIR GENERATOR JUMBO 85M (OIL-GAS)

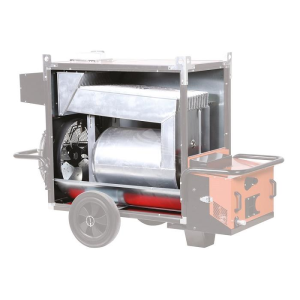

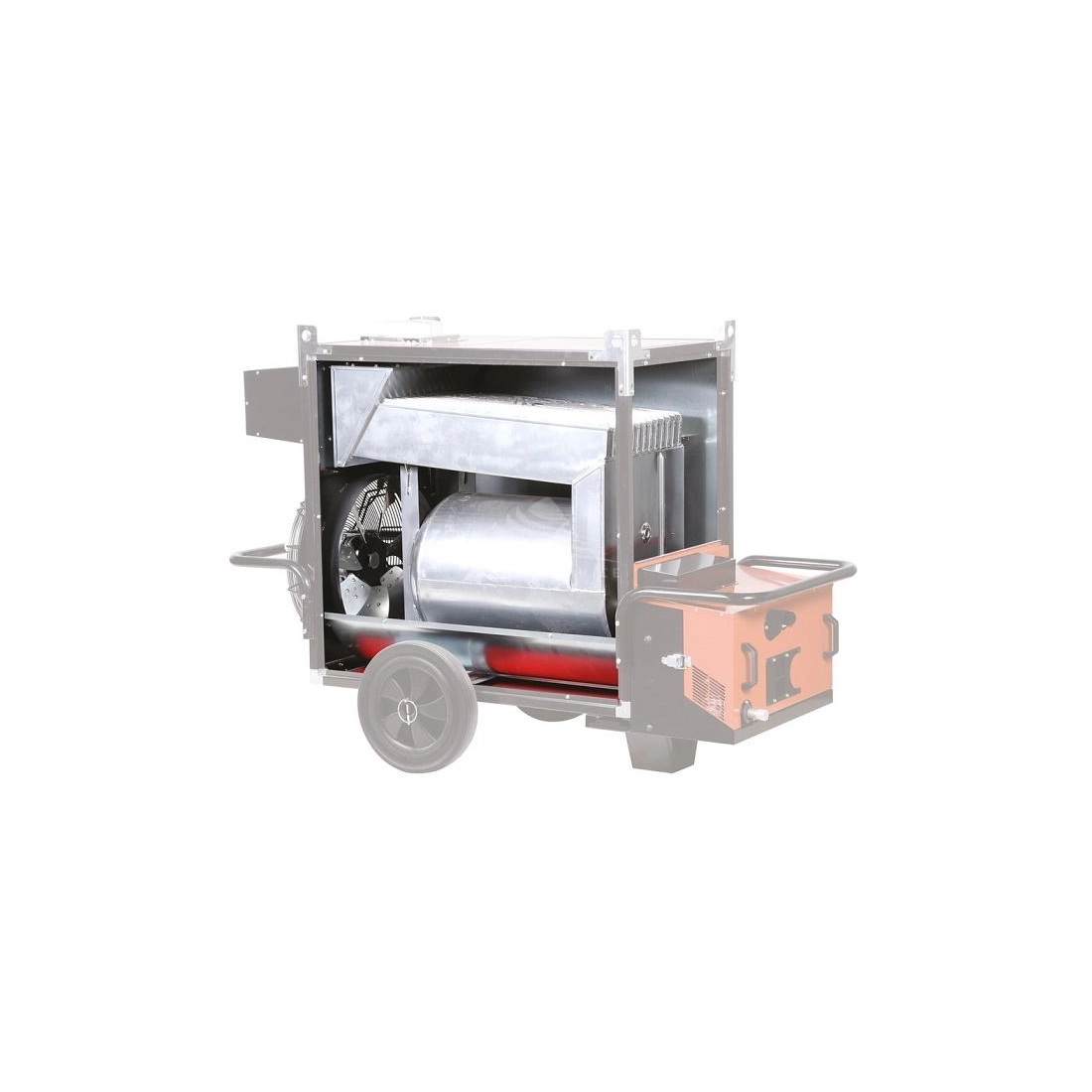

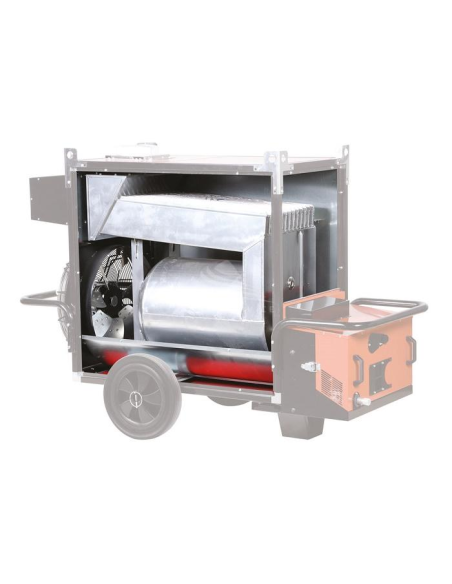

      BM2 JUMBO 85M is a single-phase indirect combustion hot air generator, capable of heating very large rooms with the possibility of installing oil, natural gas and LPG burners.

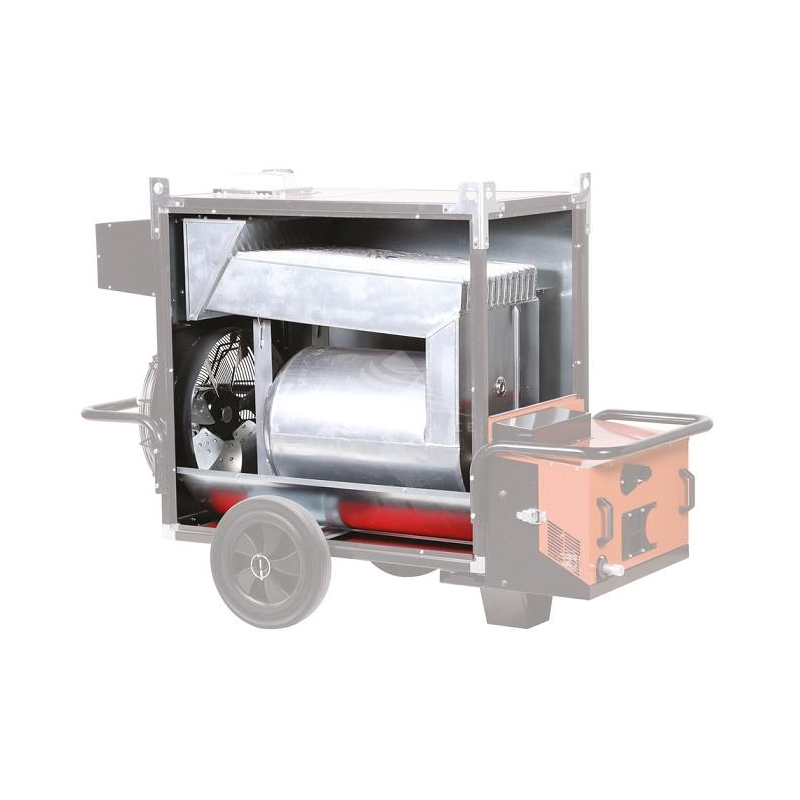

      BM2 JUMBO 85M is equipped with an axial fan that complies with ERP 2015 regulations, an excellent compromise in terms of efficiency (93%), silence and prevalence, a feature that is particularly advisable for installations where ducting is required.

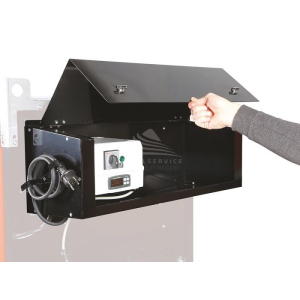

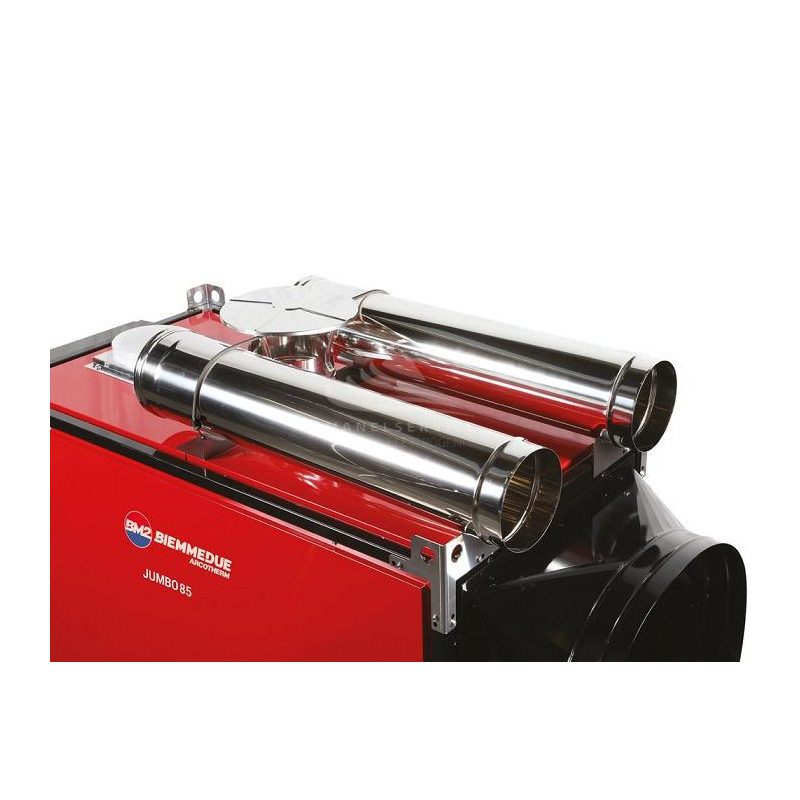

      BM2 JUMBO 85M is made up of a cover box that allows protection from shocks, dust, water, atmospheric events and a collection tank for oil/condensate.

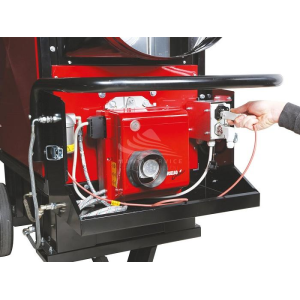

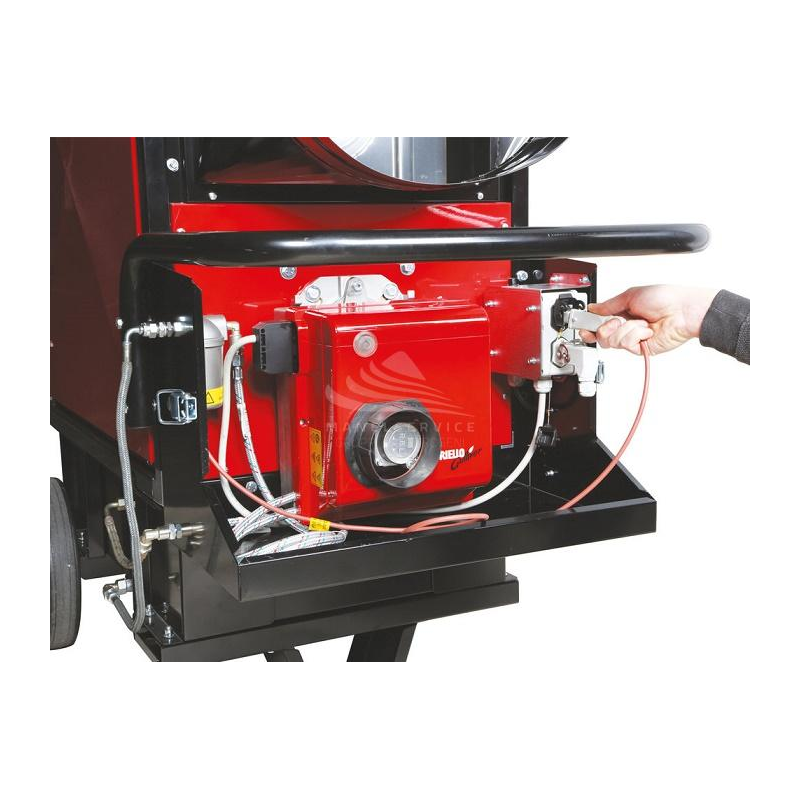

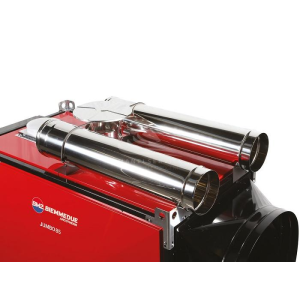

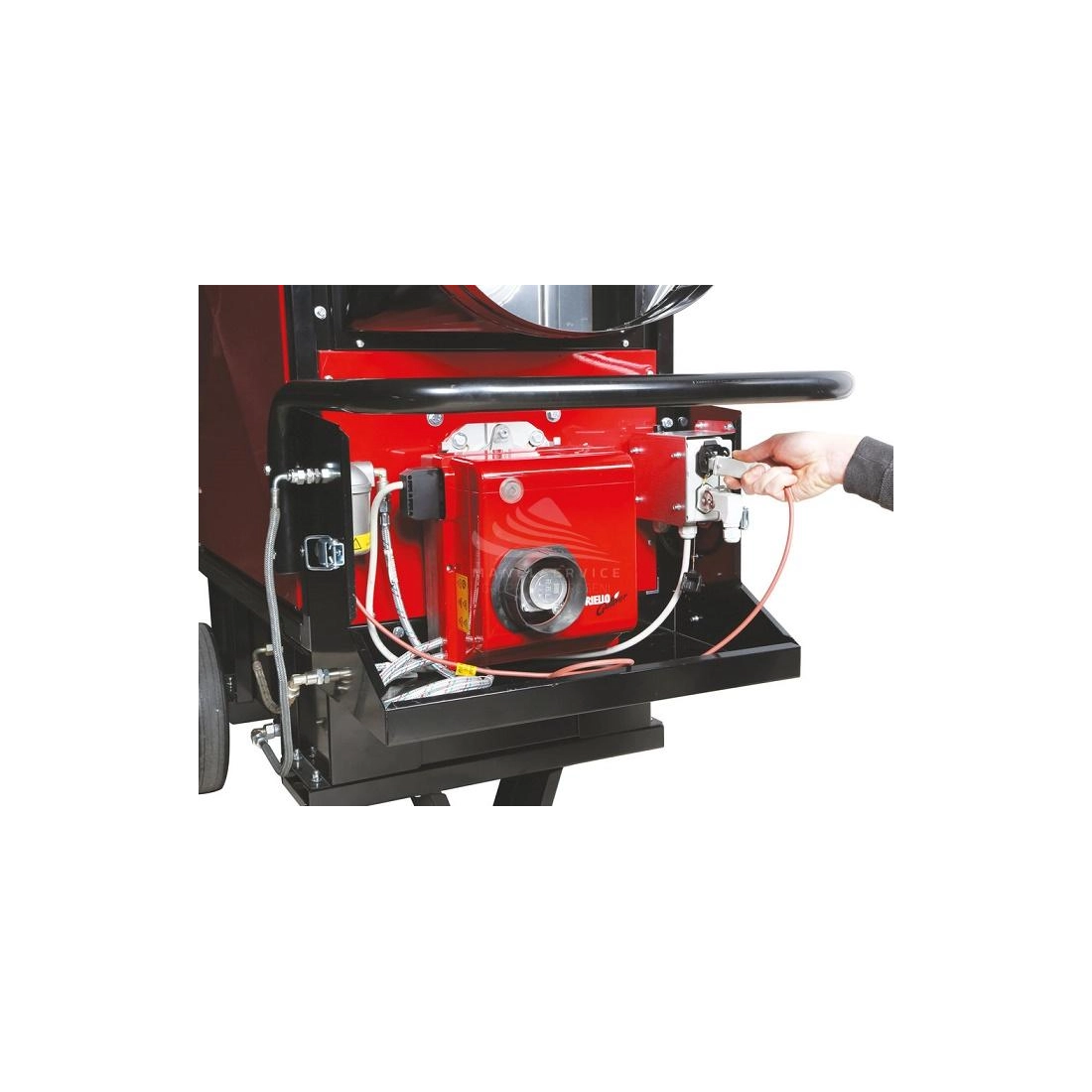

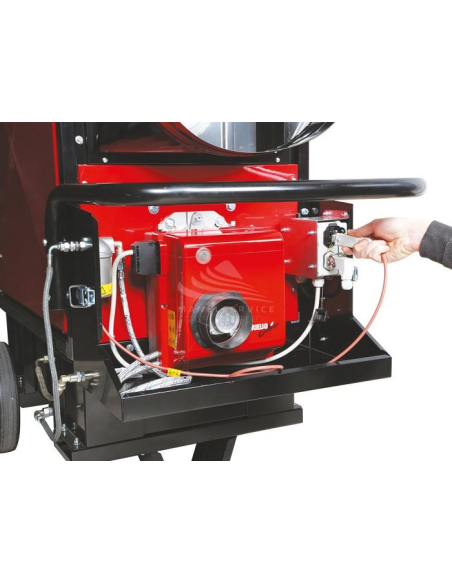

      Burner is equipped with snorkel intake to ensure clean combustion air by connecting with suction sheath from outside. The new heat exchanger combined with the new higher performance fans allow to obtain a thermal efficiency of 92÷93%.

      The supporting structure of the machine and the strong fixing brackets allow it to be moved on any surface. The supporting structure of the BM2 JUMBO 85M is composed of removable panels for internal washing, even when the machine is hung up.

      TECHNICAL FEATURES BM2 JUMBO 85M

      Phase Type: Single-Phase
      Fuel: Diesel - GAS
      Frequency (Hz): 50
      Voltage (V): 230
      Nominal Thermal Power: 85.62 KW - 73630 Kcal/H - 294518 BTU/H
      Thermal Power Output: 79. 37 KW - 68255 Kcal/H - 273019 BTU/H
      Thermal Efficiency (%): 92.7
      Air Flow Rate (m³/H): 7200
      Static Pressure Available: 200 Pa - 20 mm H₂O
      Thermal Heat Gain At 20°C (°C): 47
      Effective Working Range (M): 45
      Gasoil Consumption (Kg/H): 6. 77
      Methane Consumption (m³/H): 7.935
      Methane Feeding Pressure (mbar): 20
      LPG Consumption (m³/H - Kg/H): 3.127 - 6. 10
      LPG Feeding Pressure (mbar): 37
      Electrical Power (W): 700
      Length (mm): 1648
      Width (mm): 770
      Height (mm): 1133
      Dry Weight (Kg): 172

      Are you looking for a hot air generator with different characteristics? Here you can find the full range of hot air generators BM2 or other specialized brands

      Images are for guidance only.

      Praesent faucibus dolor odio, vitae placerat lacus ultrices a. Integer ultrices sapien vitae ligula ultrices, non egestas ante lacinia. Maecenas imperdiet dolor sapien, ut egestas ligula convallis vitae. Vestibulum mollis condimentum urna, semper pretium massa ornare eu. Sed placerat ex consequat tellus pulvinar molestie. Etiam at eros sit amet eros viverra cursus hendrerit sodales elit. Aliquam varius, urna vel auctor ornare, ante libero iaculis dui, vel dictum sapien odio sed felis. Proin fringilla laoreet mattis. Nulla ullamcorper arcu sem, nec

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      BM2 ROOM THERMOSTAT WITH CABLE AND PLUG
          57.40 €Price
          BM2 HEAVY DUTY THERMOSTAT WITH CABLE AND PLUG
              110.70 €Price
              BM2 ONE-WAY ADAPTERBM2 ONE-WAY ADAPTER DIAMETER 450 mm FOR JUMBO 85
                  159.22 €Price
                  BM2 TWO-WAYS ADAPTERBM2 TWO-WAYS ADAPTER DIAMETER 400 mm FOR JUMBO 85
                      170.60 €Price
                      BM2 FLEXIBLE AIR DUCTS WITH CLIPBM2 FLEXIBLE AIR DUCTS DIAMETER 600 mm WITH CLIP
                          Diameter: 600 mm Length: 6 m Material: PVC Fastening strap: YES
                          469.73 €Price
                          BM2 FLEXIBLE AIR DUCTS WITH CLIPBM2 FLEXIBLE AIR DUCTS DIAMETER 650/700 mm WITH CLIP
                              575.55 €Price
                              BM2 AIR INLET ADAPTERBM2 AIR INLET ADAPTER DIAMETER 505 mm FOR JUMBO 85
                                  102.30 €Price
                                  BM2 REINFORCED FLEXIBLE AIR INLET DUCTBM2 REINFORCED FLEXIBLE AIR INLET DUCT DIAMETER 510 mm

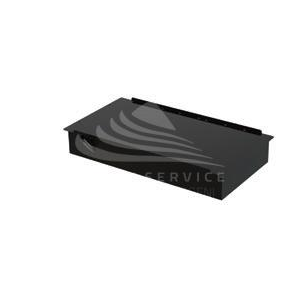

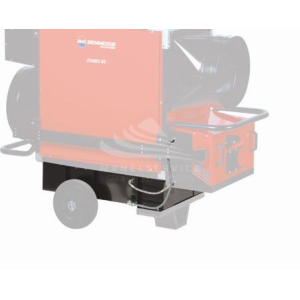

                                      BM2 TANK KITBM2 TANK KIT 75 LITERS FOR JUMBO 85
                                          585.45 €Price
                                          BM2 SIDE BUMPERS KITBM2 SIDE BUMPERS KIT FOR JUMBO 85
                                              143.48 €Price

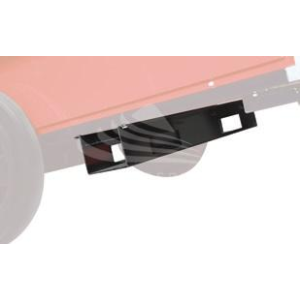

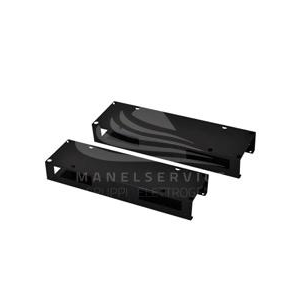

                                              BM2 LIFTING KITBM2 LIFTING KIT FOR JUMBO 85
                                                  FOR HEAT GENERATORS
                                                  153.08 €Price
                                                  BM2 SWIVELLING WHEELS KITBM2 SWIVELLING WHEELS KIT DIAMETER 100 mm FOR JUMBO 85-110
                                                      BM2 ECOFLAM DIESEL BURNER
                                                          738.00 €Price
                                                          BM2 RIELLO DIESEL BURNER
                                                              659.25 €Price

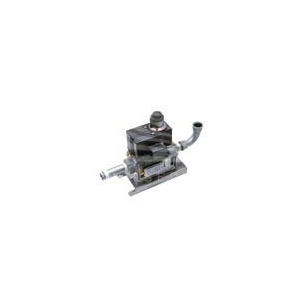

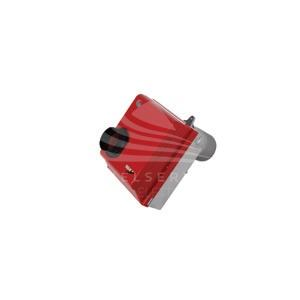

                                                              BM2 LPG RIELLO BURNER + GAS TRAINBM2 LPG RIELLO BURNER + GAS TRAIN FOR JUMBO 85 LPG
