PRAMAC SP12000 THREE-PHASE Generator set, AVR

Reference PD133TH2Y00

Potenza Consumo uso continuativo: 10 kva
Tipo carburante: Benzina
Capacità serbatoio carburante: 24 LT
Autonomia: 6.1 h al 75% del carico
Dimensioni: L 96 cm x L 64.1 cm x A 66.7 cm
Peso a secco: 162 Kg
Potenza acustica LpA: 96 LWA dB(A)
Configurazione delle prese: 1 x Schuko ,1 x 230V 16A ,1 x 230V 32A

Download Scheda tecnica SP12000 Download Technical data SP12000

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 6
Continuous power single phase (KW): 5.44
Maximum power single phase (KVA): 7.5
Continuous power single phase (KVA): 6.8
Maximum power three phase (KW): 11.1
Continuous power three phase (KW): 9.4
Maximum power three phase (KVA): 13.8
Continuous power three phase (KVA): 11.8
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CEE - 1 x 400V 32A 3P+N+T CEE - 3 x 230V 16A SCHUKO
Engine: Honda GX630, naturally aspirated
Engine rpm (rpm): 3000
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³)
Oil capacity (L): 1.9
Cooling: Air
Alternator: Brushless
Poles: 2
Fuel tank capacity (L): 24
Consumption (L/h): 4.23 at 75% of the load / 5.63 at 100% of the load
Running time (h): 5.67 at 75% of the load / 4.26 at 100% of the load
Acoustic power: 96 dB(A)
Acoustic pressure: 72 dB(A) at 7 m
Length (mm): 960
Width (mm): 641
Height (mm): 667
Dry weight (Kg): 170
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No ATS
Voltage regulator: AVR
Engine manufacturer: Honda

Brand

Motore Honda Serie GX. Raffreddamento ad aria. Batteria fornita di serie. Protezione Oil Guard. Tubazioni telaio maggiorate. Serbatoio maggiorato. Bandelle laterali di protezione

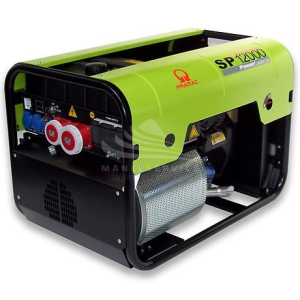

L'immagine è puramente indicativa

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
