GENSET MGF 44 Y - SINGLE-PHASE/THREE-PHASE GENERATOR 44 KVA AVR STAGE V

Reference MGF 44 Y - STAGE 5

Maximum power Three-phase: 44 KVA
Maximum power Three-phase: 35.2 KW
Maximum power Single-phase: 14.7 KVA
Maximum power Single-phase: 11.76 KW
Fuel: Diesel
Voltage: 400 V - 230 V
Frequency: 50 Hz
Engine: Yanmar 4TNV98T (STAGE 5)
Starting: Electric
Consumption: 8.1 Lt/h
Length: 1640 mm
Width: 770 mm
Height: 1076 mm
Weight: 725 Kg
Super silenced
AVR

Download Scheda tecnica MGF 44 Y-STAGE5 Download Data Sheet MGF 44 Y-STAGE5

Product Details
Description

Phase: Three phase
Maximum power single phase (KW): 11.76
Maximum power single phase (KVA): 14.7
Maximum power three phase (KW): 35.2
Maximum power three phase (KVA): 44
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400/230

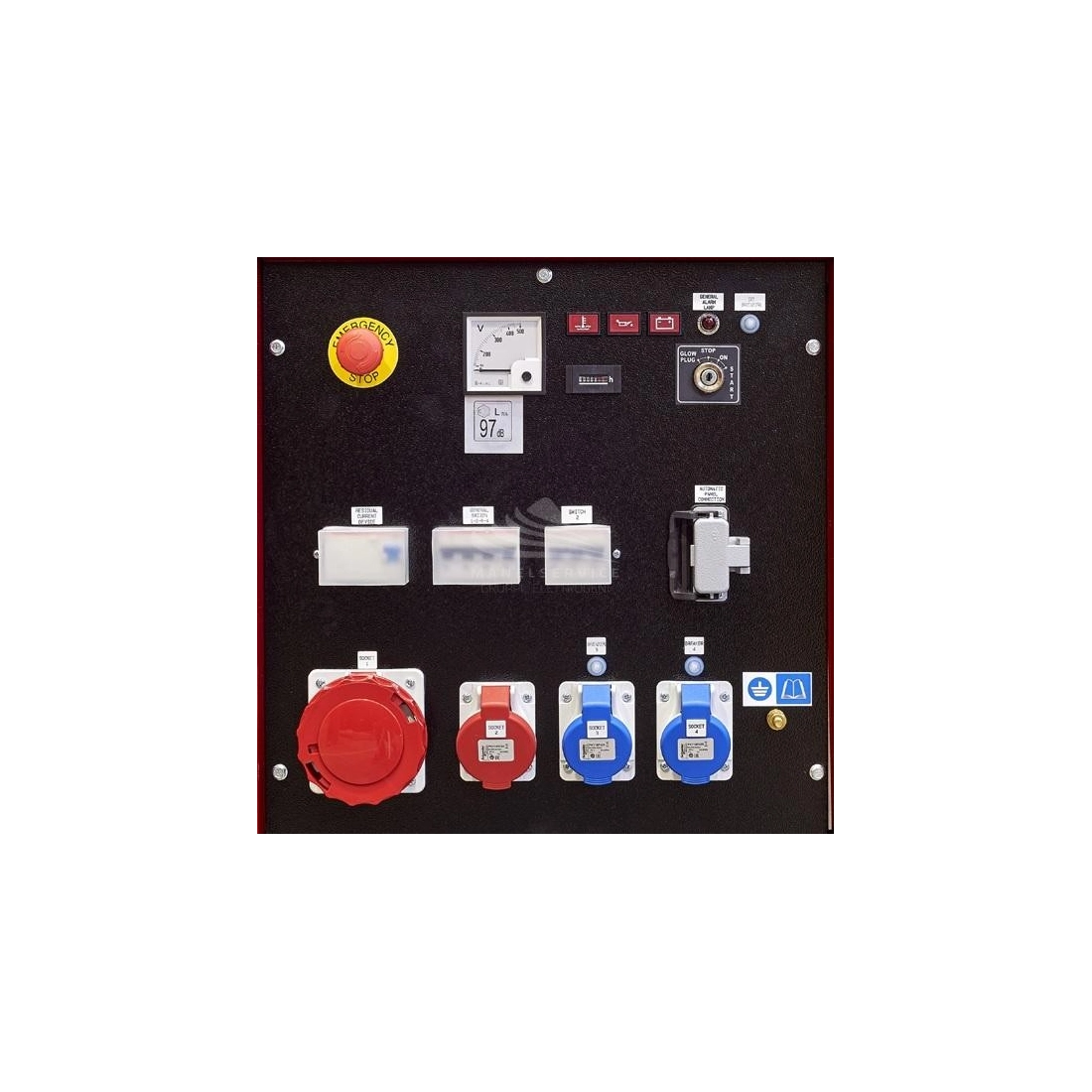

Sockets configuration: 1 x 400V 16A CEE - 1 x 400V 63A CEE - 2 x 230V 16A CEE
Engine: Yanmar 4TNV98T, 4 stroke turbocharged
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 3319
Number cylinders: 4
Cooling: Water
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Fuel tank capacity (L): 40
Consumption (L/h): 8.1
Running time (h): 4.94
Acoustic power: 97 dB(A)
Acoustic pressure: 72 dB(A) at 7 m
Length (mm): 1640
Width (mm): 770
Height (mm): 1076
Dry weight (Kg): 725
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional ATS
Voltage regulator: AVR
Engine manufacturer: Yanmar

Brand

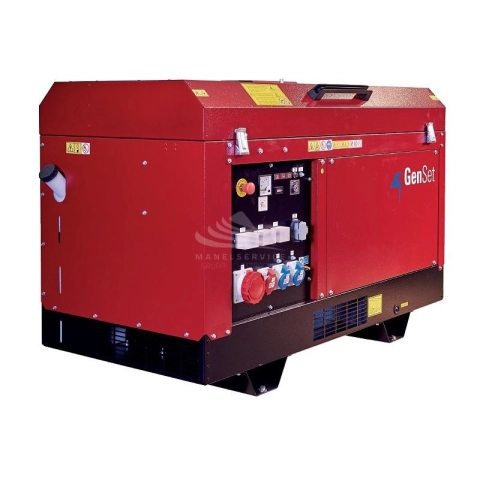

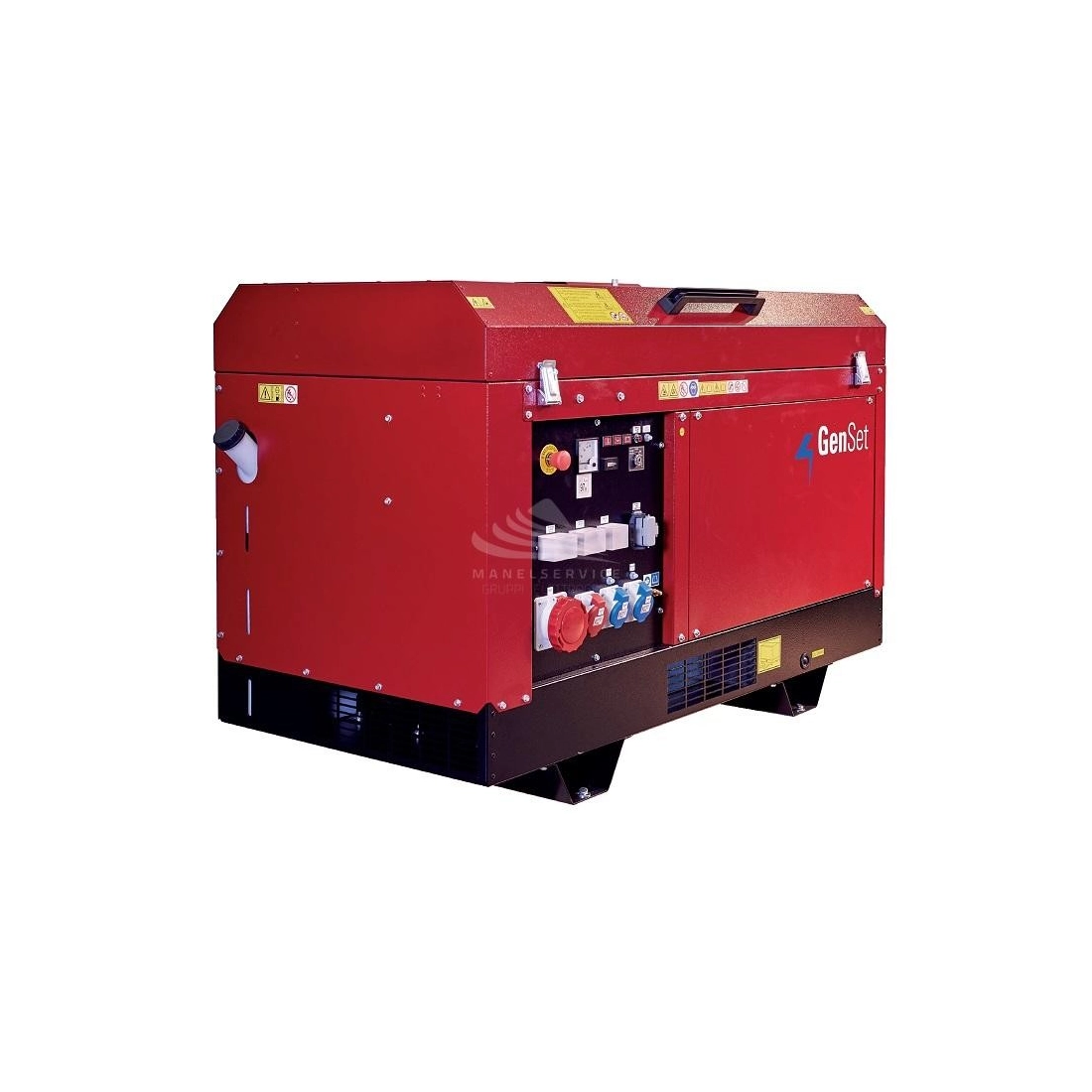

GENSET MGF 44 Y - SINGLE-PHASE/THREE-PHASE GENERATOR 44 KVA AVR STAGE V

The GENSET MGF 44 Y is a three-phase 44 KVA diesel genset designed to provide reliable and quiet power in a wide range of applications.

Main features:

Maximum three-phase power: 44 KVA (35.2 kW)

Single-phase maximum power: 14.7 KVA (11.76 kW)

Yanmar 4TNV98T (STAGE 0) engine: Reliable, high-performance, liquid-cooled 4-cylinder diesel engine complying with STAGE 0 emission standards.

Electric start: Quick and easy starting with key.

Efficient consumption: Low fuel consumption (8.1 Lt/h) for optimum range.

Super silent: Soundproof design for silent operation (AVR).

Robust construction: Compact and robust design for easy transport and storage.

Technical specifications GENSET MGF 44 Y STAGE V:

Fuel: Diesel
Voltage: 400 V - 230 V
Frequency: 50 Hz
Dimensions:
Length: 1640 mm
Width: 770 mm
Height: 1076 mm
Tank: 40 l
Weight: 725 Kg

If you are looking for a product similar to GENSET MGF 44 Y or with similar characteristics click HERE.

Images and technical data are not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
