GENMAC ROYAL G170IS-E3 THREE-PHASE 173 KVA DIESEL - MOTOR IVECO STAGE 3A

GENMAC ROYAL G170IS-E3 173 KVA DIESEL
search
  • GENMAC ROYAL G170IS-E3 173 KVA DIESEL
  • GENMAC ROYAL G170IS-E3 173 KVA DIESEL
GENMAC
ROYAL G170IS-E3-STAGE 3A-AVR
New product

Phase Type: Single-phase / Three-phase
Maximum power LTP: 190 KVA
Maximum power LTP: 152 KW
Continuous power PRP: 173 KVA
Continuous power PRP: 138 KW
Fuel: Diesel
Frequency: 50 Hz
Voltage: 230 / 400 V
Engine: Fpt-Iveco NEF67TE2PV
Engine rpm: 1500 rpm
Cooling: Water
Length: 3600 mm
Width: 1226 mm
Height: 2000 mm
Weight: 2100 Kg
Super silenced
AVR

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
152
Continuous power three phase (KW)
138
Maximum power three phase (KVA)
190
Continuous power three phase (KVA)
173
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Emissions Regulations
Stage 3A
Engine rpm (rpm)
1500
Speed governor
Electronic
Engine capacity (cm³)
6
Number cylinders
6
Oil capacity (L)
17
Cooling
Water
Alternator
Synchronous, self-excited
Length (mm)
3600
Width (mm)
1226
Height (mm)
2000
Dry weight (Kg)
2100
AVR
Yes
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
No
Voltage regulator
AVR
Engine manufacturer
FPT Iveco
Details

GENMAC ROYAL G170IS-E3

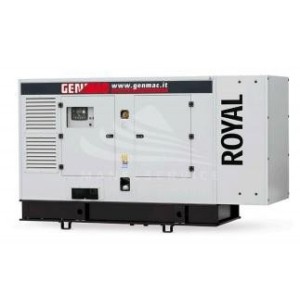

The GENMAC ROYAL G170IS-E3 is a 173 KVA super-silenced single-phase/three-phase diesel generator with Stamford alternator and AVR voltage regulator.
Thanks to its diesel fuel supply, the GENMAC ROYAL G170IS-E3 can only consume 3.96 m³/h at full load and has a low environmental impact, making it one of the best in its class.
The long life and reliability of the GENMAC ROYAL G170IS-E3 is due to a special control procedure during the various stages of production.
The GENMAC ROYAL G170IS-E3 is suitable for applications in different contexts such as: hospitals, industries, shopping malls, hotels, airports, banks, universities, stadiums, offices, etc.

The Stage 3A engine allows the use of the generator set also for mobile use, for example for roadworks and rental services.

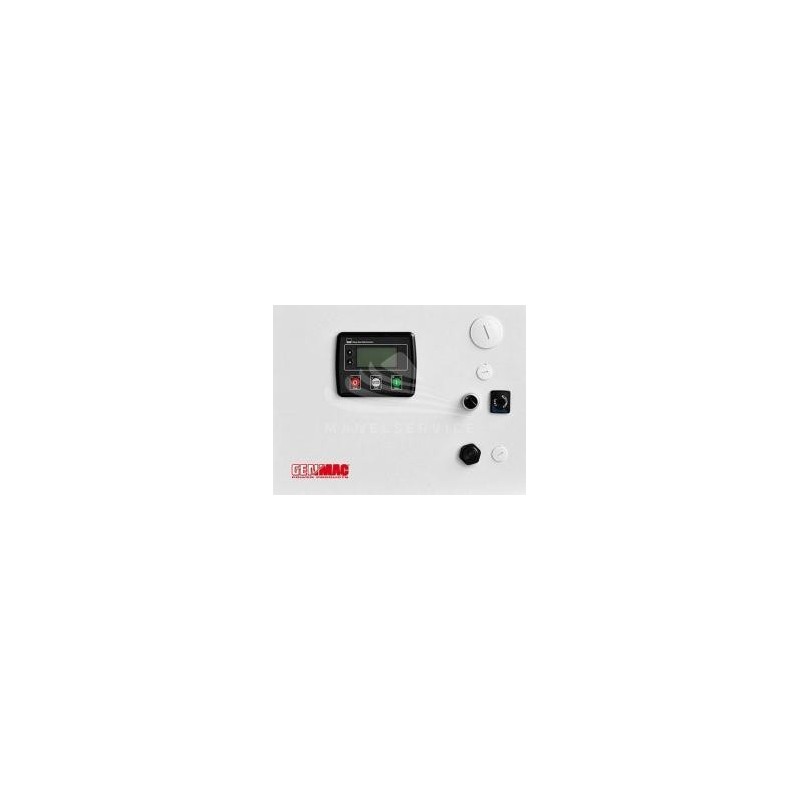

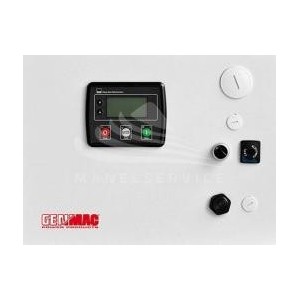

Control panel features

QT2A-4520

Self-standing tower with IP65 metal box
Circuit breaker
AMF controller DSE4520
- Voltmeter, Frequencymeter, Ammeter
- Generator power (kW, kV Ar, kV A & pf) monitoring
- Hour meter
- Fuel level meter
- Overload (kW & kV Ar) protection
- Low oil pressure protection
- High coolant temperature protection
- Low fuel level protection
- Battery charger alternator fault
- Rpm protection
Emergency stop button
Audible alarm
Terminal board for ATS connection
Can Bus reading Port (if standard on the engine)
Battery charger
On/off switch

Images and technical data are not binding.

List price
50.003,84 € tax incl.
40.986,75 € tax excl.
Discounted Price
27.186,66 € tax incl.
22.284,15 € tax excl.
Voltage Regulator
Ask for availability
