GENMAC Combiplus G15000HEO-E5 GENERATOR 15,3KVA

GENMAC Combiplus G15000HEO-E5 GENERATOR 15,3KVA

The generator Genmac Combiplus G15000HEO-E5 Single Phase / Three Phase has a Honda gasoline powered engine capable of delivering a power of 15,3KVA with the possibility of connection to optional AVR.

The GENMAC Combiplus G15000HEO-E5 generator is equipped with a Honda Stage V engine certified for mobile use in the EU, but which does not comply with others criteria of the regulation. The engine is powered by gasoline by means of a tank with a capacity of 19 liters for an autonomy of about three and a half hours, complete with electric starter.

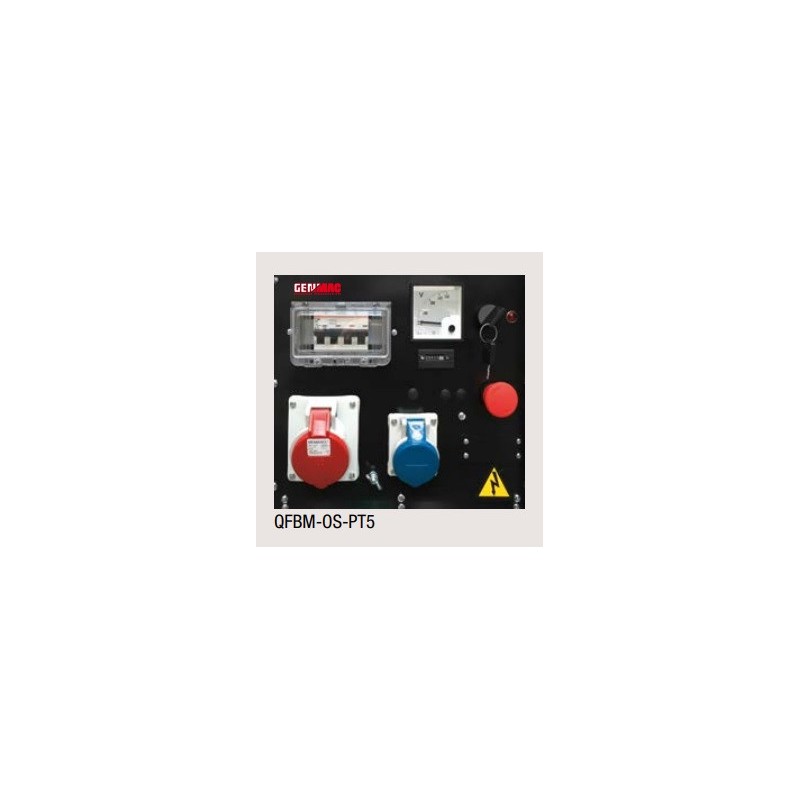

The Genmac 15,3KVA generator is equipped with a front control panel for portable units, with manual start and oil level sensor, with the possibility of modification by the customer with the optional remote control panel.

In combination with the generator it is possible to request the handling kit specifically designed for the selected model, for a more comfortable transport before the installation on the working lug.

The 15,3KVA generator is equipped with compound voltage regulator, on request it is possible to supply it with AVR voltage regulator.

Optional AVR regulator

The AVR brings a significant improvement in output voltage stability; this is particularly useful with commonly used machines with reactive load, such as refrigerators, freezers, air conditioners and garden machines. This will increase the life of your devices.

The optional AVR is a device that keeps the out voltage more constant and less load-dependent. Thanks to this technology there are fewer drops or current peaks and this makes it safer to use the various devices connected, improving their performance and durability.

Technical features of generator 15,3KVA Genmac Combiplus G15000HEO-E5

Power Supply: Gasoline
Firing: Electric
Phase Type: SinglePhase / ThreePhase
Continuous SinglePhase output: 4.6 KVA / 4.1 KW
Maximum SinglePhase output: 5.1 KVA / 4. 6 KW
Threephase continuous output: 13.8KVA / 11.0KW
Threephase maximum output: 15.3KVA / 12.2KW
Motor: Honda GX690
Socket panel: 1 x 16A 230V - 1 x 32 A 400 V
Voltage: 230 / 400V
Frequency: 50 Hz
3000 rpm
Tank: 19 Lt.
Autonomy @ 75%: 3,8 h fixed revolutions
Starting: Manual
Length (mm): 870
Width (mm): 620
Height (mm): 690
Dry weight (Kg): 166

If you are looking for another product then you can consult on our catalog other generator.

Images and technical data are not binding and may be subject to review
