CGM C7000TE THREE-PHASE GENERATOR 10KVA
      CGM C7000TE THREE-PHASE GENERATOR 10KVA
      CGM C7000TE THREE-PHASE GENERATOR 10KVA

      CGM C7000TE THREE-PHASE GENERATOR 10KVA

      Type of phase: Single-phase / Three-phase
      Maximum single-phase power: 2.6 KVA / 2 KW
      Continuous single-phase power: 2.3 KVA / 1.8 KW
      Maximum three-phase power: 7.7 KVA / 6.1 KW
      Continuous three-phase power: 7 KVA / 5.6 KW
      Fuel: Petrol
      Voltage: 230/400 V
      Frequency: 50 Hz
      Engine: HONDA GX390
      Engine revs: 3000 rpm
      Starting: Electric
      Voltage regulator system: AVR
      Consumption: 2 Lt/h at 75% of the load
      Tank capacity: 6.1 Lt
      Autonomy: 3 h at 75% of the load
      Length: 780 mm
      Width: 510 mm
      Height: 500 mm
      Weight: 82 Kg

      List price
      2,351.55 € tax incl.
      1,927.50 € tax excl.
      Discounted Price
      2,351.55 € tax incl.
      1,927.50 € tax excl.
      Shipping from 30.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: CGM C7000TE THREE-PHASE GENERATOR 10KVA

      PERSONAL DATA


      Ask a question
      Product: CGM C7000TE THREE-PHASE GENERATOR 10KVA
      Offer on letterhead
      Product: CGM C7000TE THREE-PHASE GENERATOR 10KVA
      CGM
      CGM C7000TE

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      2
      Continuous power single phase (KW)
      1.8
      Maximum power single phase (KVA)
      2.6
      Continuous power single phase (KVA)
      2.3
      Maximum power three phase (KW)
      6.1
      Continuous power three phase (KW)
      5.6
      Maximum power three phase (KVA)
      7.7
      Continuous power three phase (KVA)
      7
      Fuel
      Gasoline
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE
      Engine
      Honda GX390
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Engine capacity (cm³)
      389
      Number cylinders
      1
      Alternator
      Made in Italy
      Poles
      2
      Fuel tank capacity (L)
      6.1
      Consumption (L/h)
      2
      Running time (h)
      3
      Length (mm)
      780
      Width (mm)
      510
      Height (mm)
      500
      Dry weight (Kg)
      82
      Silenced
      No
      Super silenced
      No
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      Honda

      Specific References

      New

      CGM C7000TE Three-phase generating 7KVA

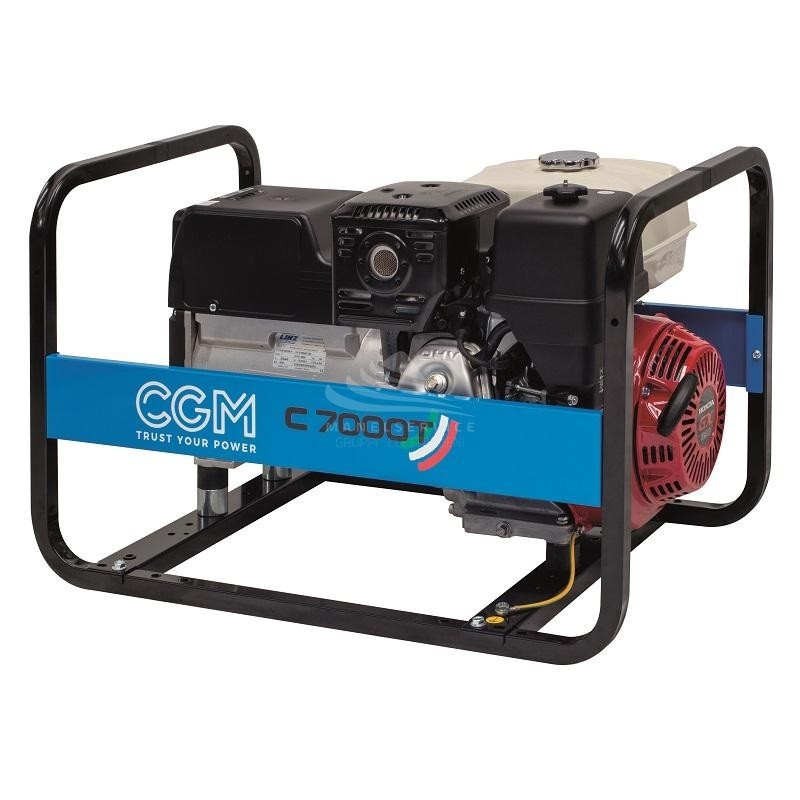

      CGM C7000TE Three-phase generator of 7KVA with Honda engine powered by STAGE V gasoline at 3000 rpm, compact and easy to use, mounted on a fixed base with rubber vibration dampers. The CGM C7000TE generating set is composed of a Made in Italy alternator by Linz or NSM, self-excited with brushes and with AVR voltage regulator.

      The CGM C7000TE is equipped with electric start with 12 V battery but also with manual recoil starter and with a low fuel consumption, in fact it consumes only 2 liters/hour at 75% of the load for an autonomy of up to 3 hours of operation. This CGM C7000TE is perfect for outdoor use such as for hobby use.

      The CGM C7000TE generator set is part of the CLASSIC series and is easily adaptable to a variety of uses such as homes, mobile facilities, campgrounds, hobbies, construction sites etc. The CGM C7000TE generator set at 3000 rpm is suitable for emergency use only. It is not recommended to be used for more than 6 hours continuously and for more than 500 hours per year.

      Technical specifications of CGM C7000TE:

      Type of phase: Singlephase / Threephase
      Maximum singlephase power: 2.6 KVA / 2 KW
      Continuous singlephase power: 2.3 KVA / 1.8 KW
      Maximum threephase power: 7.7 KVA / 6.1 KW
      Continuous threephase power: 7 KVA / 5.6 KW
      Fuel: Petrol
      Voltage: 230/400 V
      Frequency: 50 Hz
      Motor: HONDA GX390
      Motor speed: 3000 rpm
      Start: Electric
      Voltage regulator system: AVR
      Consumption: 2 Lt/h at 75% load
      Tank capacity: 6. 1 Lt
      Autonomy: 3 h at 75% load
      Length: 780 mm
      Width: 510 mm
      Height: 500 mm
      Weight: 82 Kg

      Discover the full range reserved for Ground generators of CGM or other top brands by browsing our catalog to find the one that best suits your needs.

      Images and technical data are not binding and may be subject to change by the manufacturer.

      CGM C7000TE Three-phase generator of 7KVA 7KVA Images and technical data are not binding and may be subject to change by the manufacturer
