GENSET MG 9.5 DK - VEHICULAR GENERATOR 10 KVA

Name: GENSET MG 9.5 DK - VEHICULAR GENERATOR 10 KVA
Brand: GENSET
SKU: MG 9.5 DK

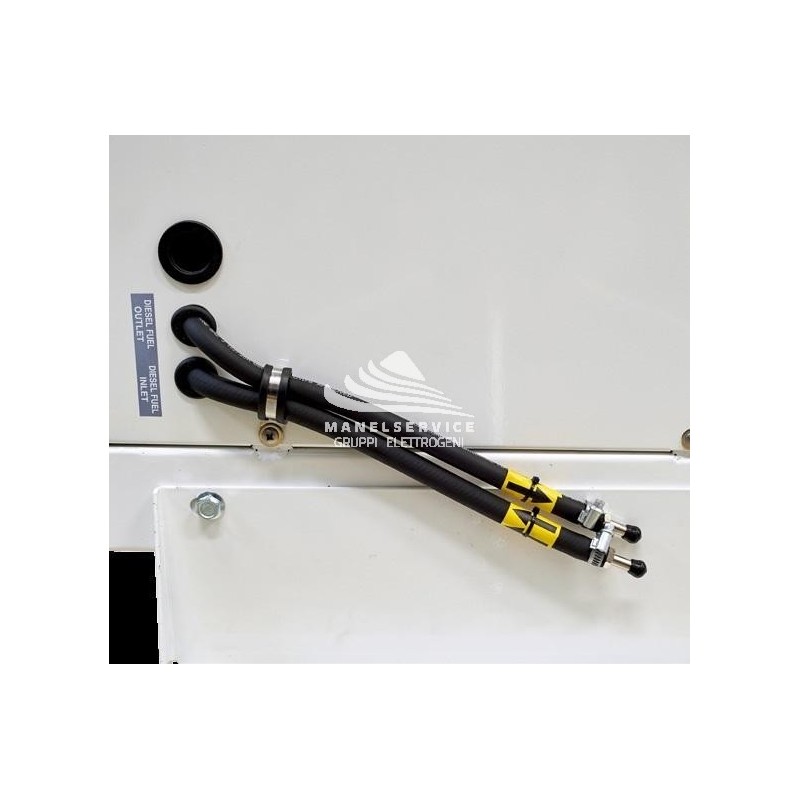

GENSET MG 9.5 DK - Fuel inlet and outlet

Reference MG 9.5 DK

Maximum power Single-phase: 10 KVA
Maximum power Single-phase: 8 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Kubota D1105 (STAGE V)
Starting: Electric
Consumption: 2 Lt/h
Length: 1070 mm
Width: 560 mm
Height: 660 mm
Weight: 320 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MG 9.5 DK

Data sheet

Phase: Single phase
Maximum power single phase (KW): 8
Maximum power single phase (KVA): 10
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: Kubota D1105
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 1123
Number cylinders: 3
Cooling: Water
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Consumption (L/h): 2
Acoustic power: 83 dB(A)
Acoustic pressure: 58 dB(A) at 7 m
Length (mm): 1070
Width (mm): 560
Height (mm): 660
Dry weight (Kg): 320
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: No
Voltage regulator: No
Engine manufacturer: Kubota

Specific References

Condition New

GENSET MG 9.5 DK

The GENSET MG 9.5 DK is a 10 KVA single-phase diesel vehicular generator set with electric start.
Thanks to its compact size and low weight, the GENSET 9.5 DK is an easy to install vehicular generator.
The GENSET MG 9.5 DK also has a low fuel consumption: only 2 Lt/h at 75% of the load.
The GENSET MG 9.5 DK generator set, thanks to the high quality and efficiency of its components, is ideal to be mounted on a vehicle.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
