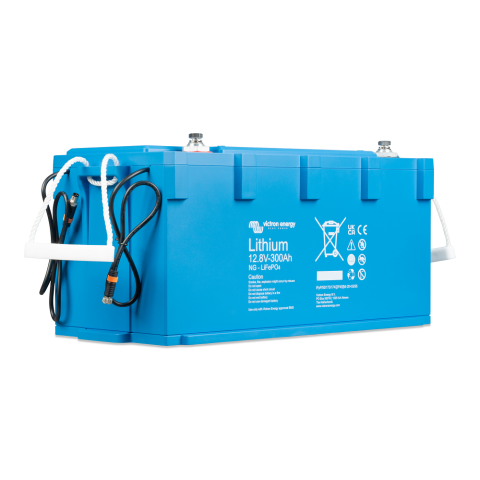

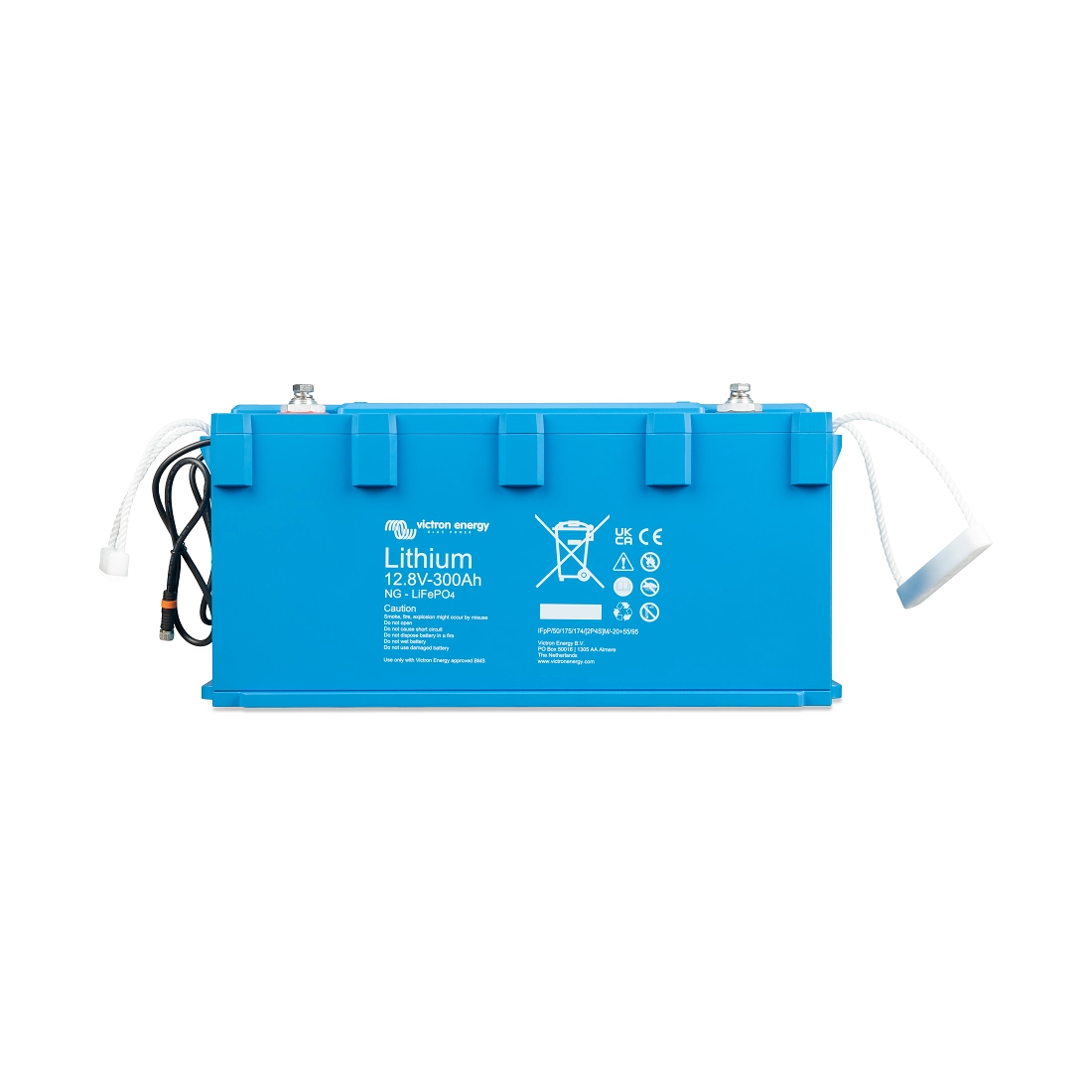

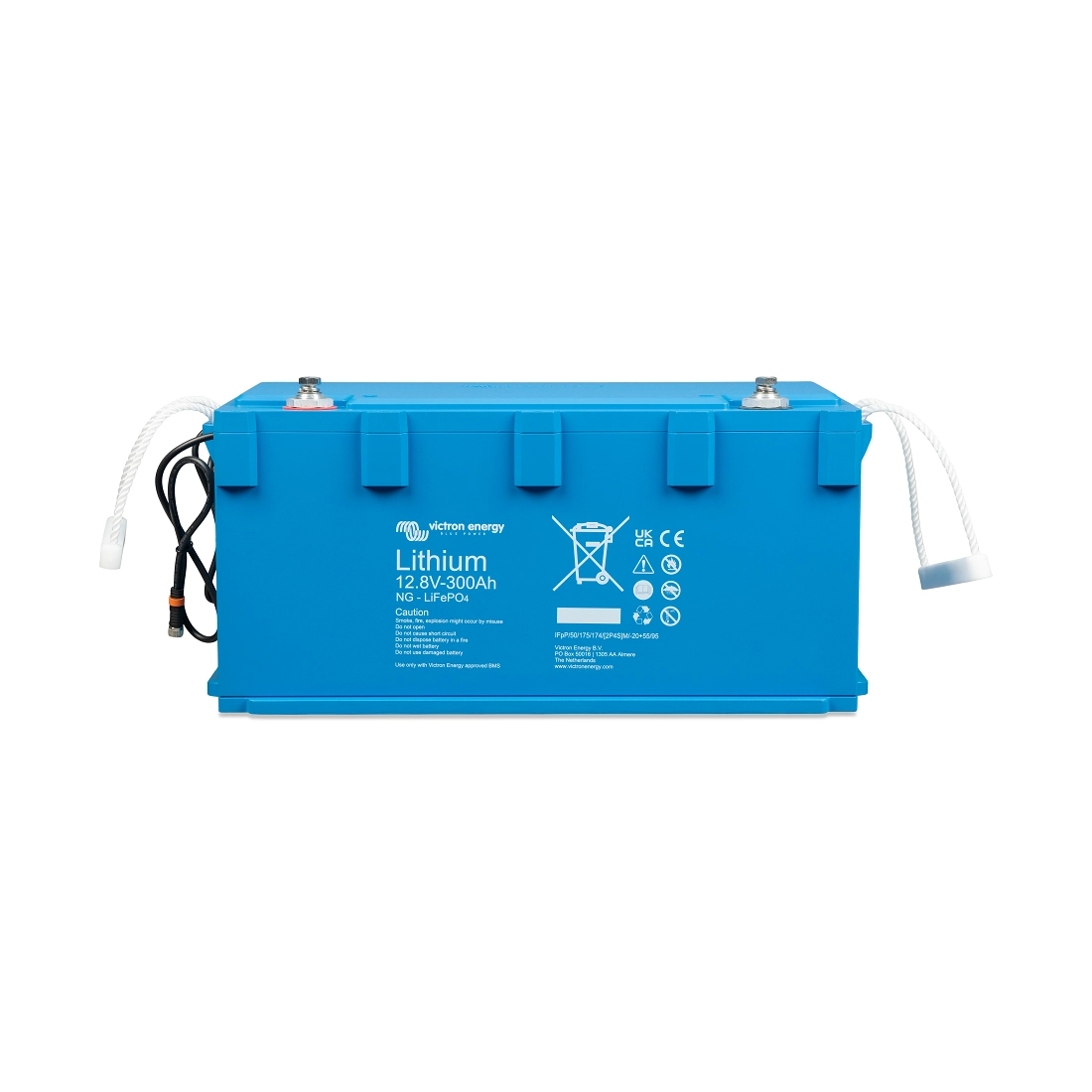

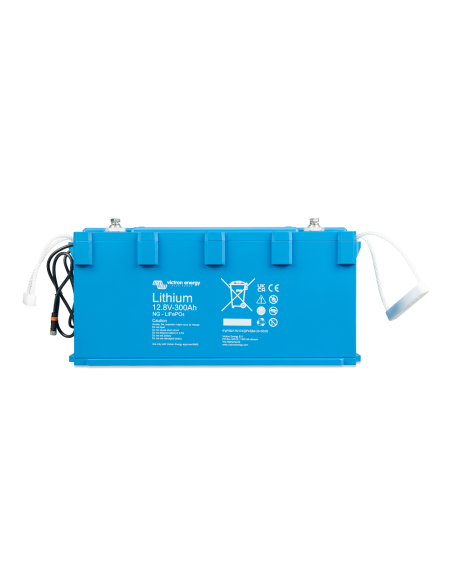

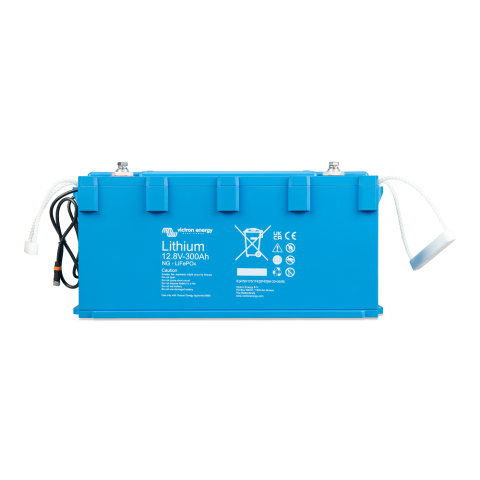

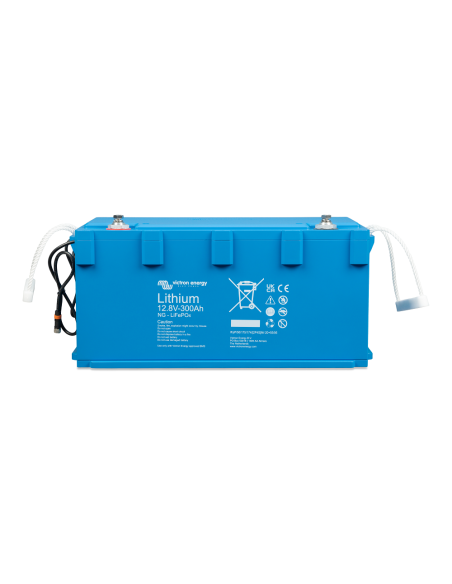

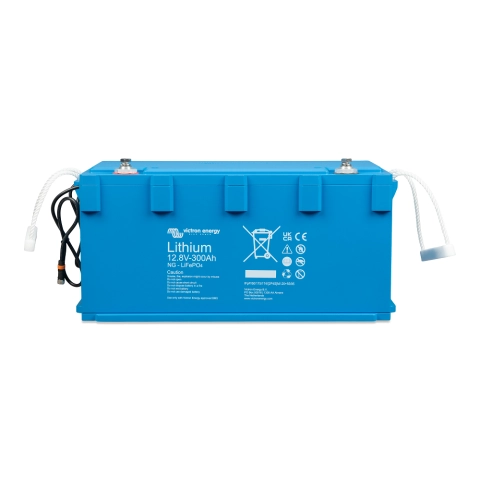

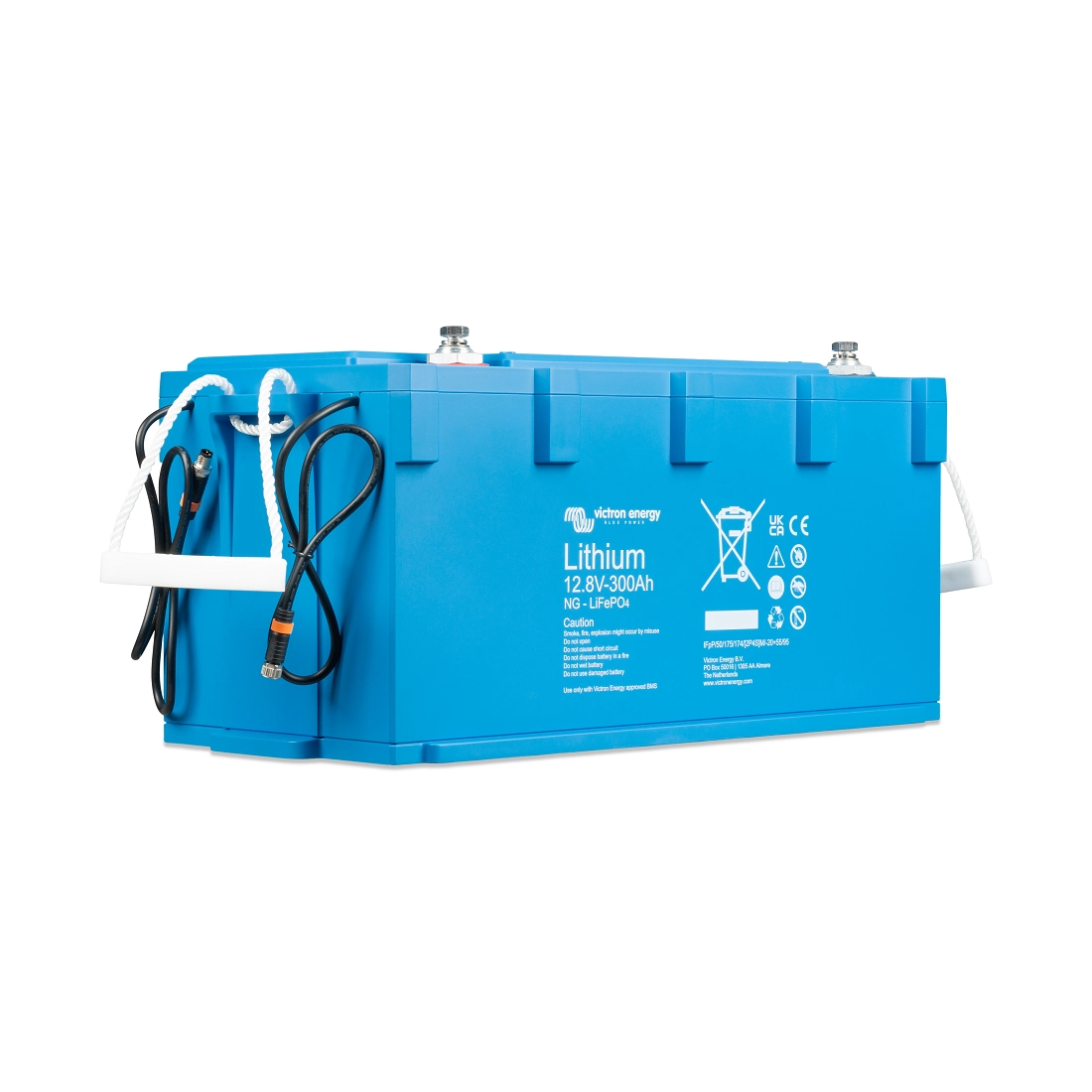

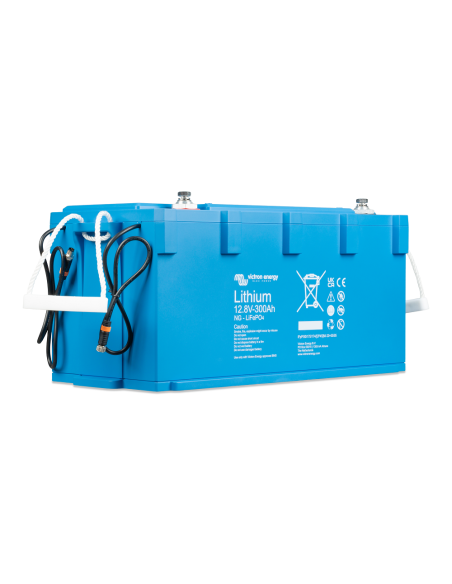

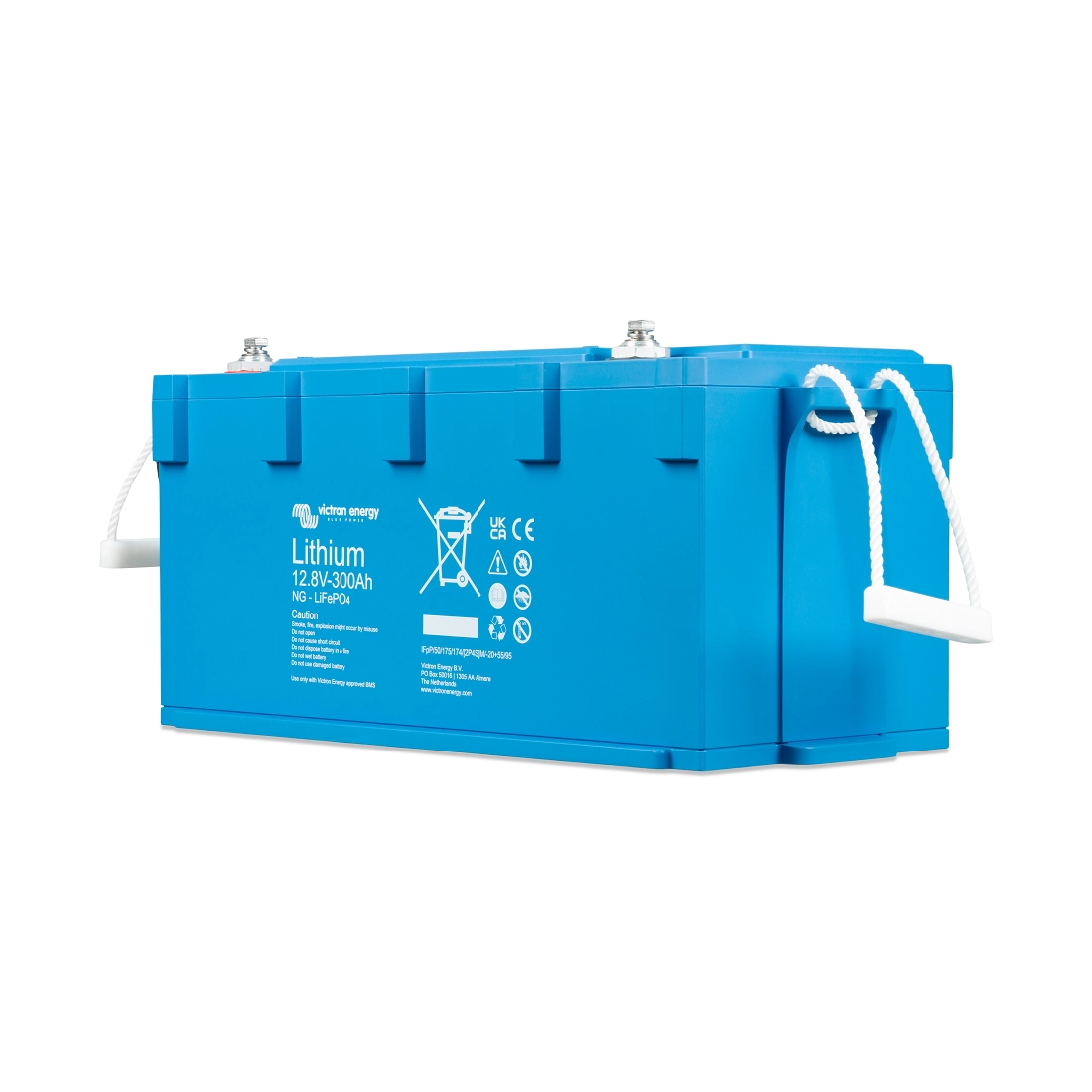

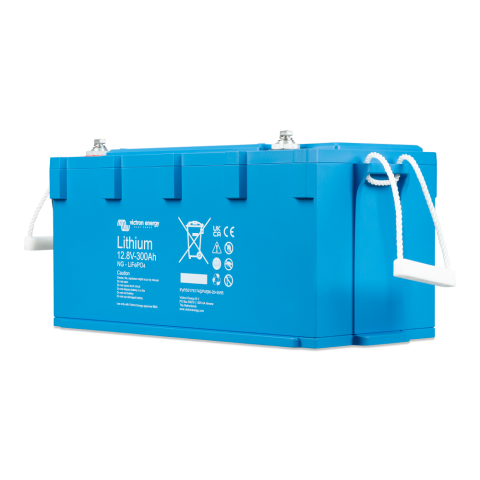

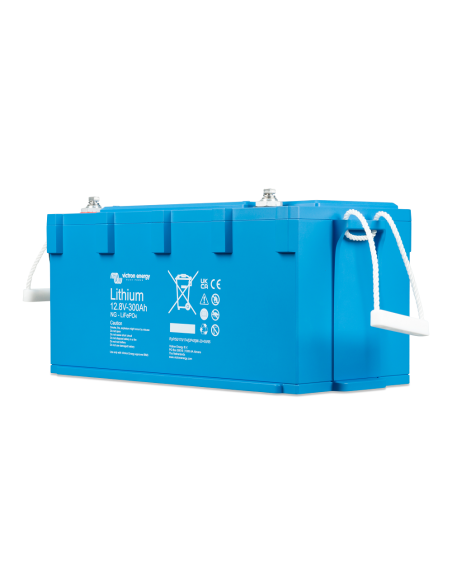

Victron LFP-NG 12,8/300 Lithium Battery

Name: Victron LFP-NG 12,8/300 Lithium Battery
Brand: VICTRON Energy
SKU: 25966M
Price: 1248 EUR
Availability: InStock

Reference 25966M

Nominal voltage: 12.8 V
Nominal capacity at 25 °C: 300 Ah
Nominal energy at 25 °C: 3840 Wh
Capacity loss: (per 100 cycles, at 25 °C, 100% DoD): <1%
Energy loss: (per 100 cycles, at 25 °C, 100% DoD): <1%
High round-trip efficiency: 92%
Max continuous discharge current (C-rate): 300 A (1C)
Max 10s pulse discharge current (C-rate): 600 A (2C)
End-of-discharge voltage: 11.2 V
Max continuous charge current (C-rate): 300 A (1C)
Max 10s pulse charge current (C-rate): 450 A (1.5C)

Download Scheda tecnica LFP-NG 12,8/300 Download Technical data LFP-NG 12,8/300

Product Details
Description

Voltage (V): 230
Charging voltage (V): Between 14 V / 28 V / 56 V e 14,4 V / 28,8 V / 56,8 V
Length (mm): 447
Width (mm): 205
Height (mm): 206
Weight (Kg): 29
Efficiency: 92
Nominal battery capacity: 300 Ah
LIFE CYCLE: DoD 80% - 2500 cycles

Brand

Victron LFP-NG 12.8/300 Lithium Battery

The Victron LFP-NG 12.8/300 is a lithium battery with a nominal voltage of 12.8 V and a nominal capacity of 300 Ah.

Key features:
- Integrated shunt
- Automatic configuration, monitoring, and control via the VictronConnect app or a GX device and the VRM portal
- Easy bracket-based mounting
- Enhanced ingress protection (IP rating)
- Low self-discharge rate

Technical specifications:
Nominal voltage: 12.8 V
Nominal capacity at 25 °C: 300 Ah
Nominal energy at 25 °C: 3840 Wh
Capacity loss: (per 100 cycles, at 25 °C, 100% DoD): <1%
Energy loss: (per 100 cycles, at 25 °C, 100% DoD): <1%
High round-trip efficiency: 92%
Max continuous discharge current (C-rate): 300 A (1C)
Max pulse discharge current (10s) (C-rate): 600 A (2C)
End-of-discharge voltage: 11.2 V
Max continuous charge current (C-rate): 300 A (1C)
Max pulse charge current (10s) (C-rate): 450 A (1.5C)

If you are looking for a product with similar characteristics CLICK HERE.

Images and technical data are purely indicative.
