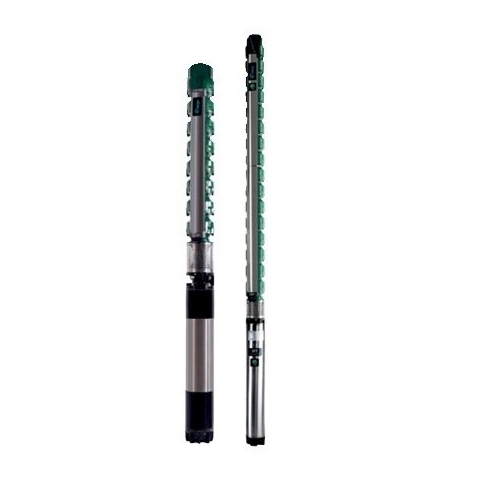

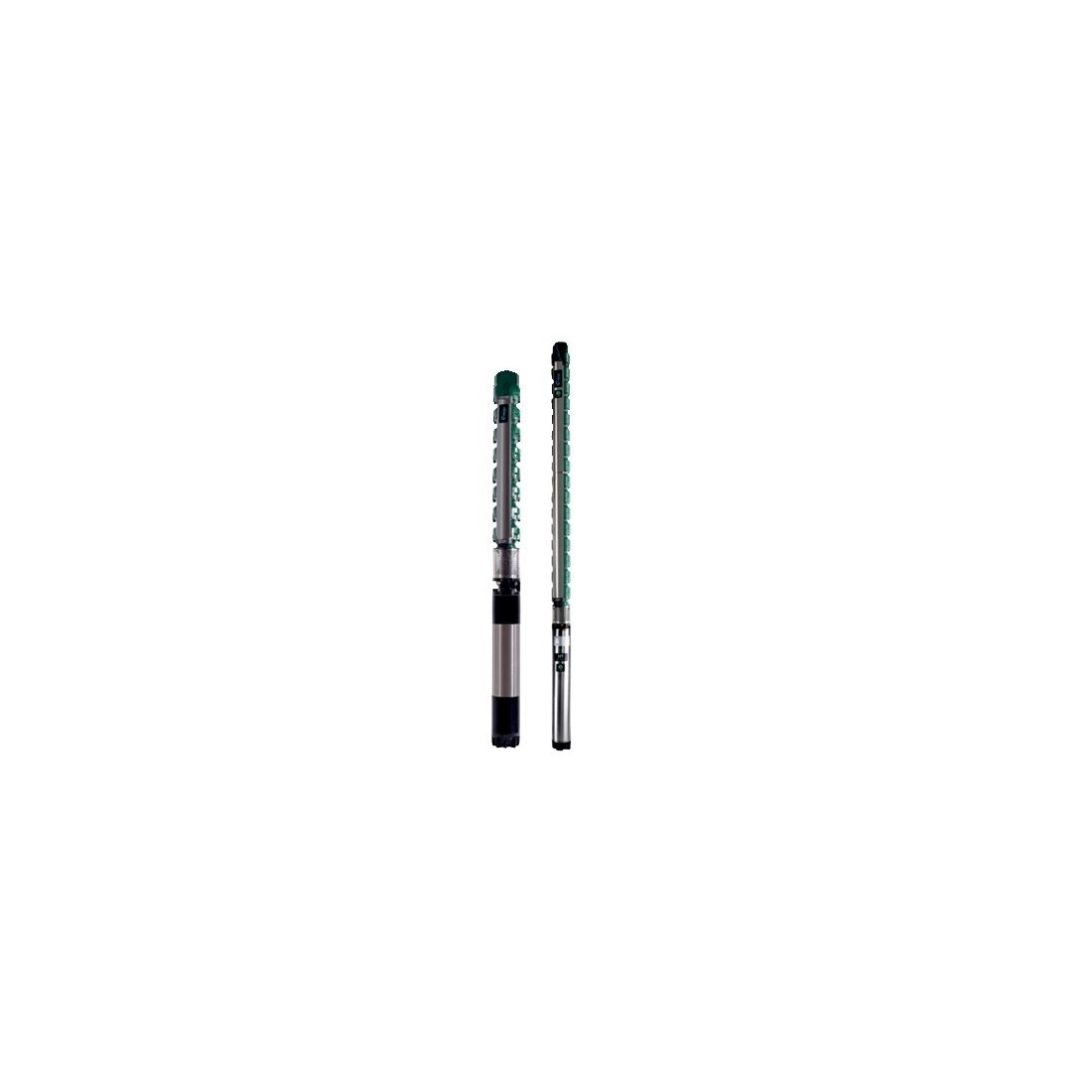

  • SUBMERSIBLE ELECTRIC PUMP CAPRARI E8P95/4C+MAC640A-8V
E8P95/4C
New product

Pumped liquid: Water
Max. temperature of pumped liquid: 35 °C
Maximum density: 1 kg/dm³
Maximum viscosity: 1 mm²/s
Max. solids content: 100 g/m³
Maximum number of starts per hour: 20
Minimum emergency distance: 507.5 mm
Flow rate: 1200 l/min
Nominal power: 30 KW - 40 Hp
Rated frequency: 50 Hz
Rated voltage: 400 V
Rated current: 62.5 A
Poles: 2
Revolutions per minute: 2870
Degree of protection: IP68
Delivery diameter: G5
Check valve diameter: 5'' GAS
Maximum diameter: 203 mm
Height: 2150 mm
Weight: 154.5 Kg
Number of stages: 4
Type of installation: vertical

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
2870
Efficiency (%)
79.5
Protection degree
IP68
Nominal power continuous
30 KW
Pump type
Submersible Pump
Fluid type
Water
Height of suction (m)
109
Maximum output capacity (Lt/min)
1200
Total head (m)
104
Width (mm)
203
Height (mm)
2150
Details
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
