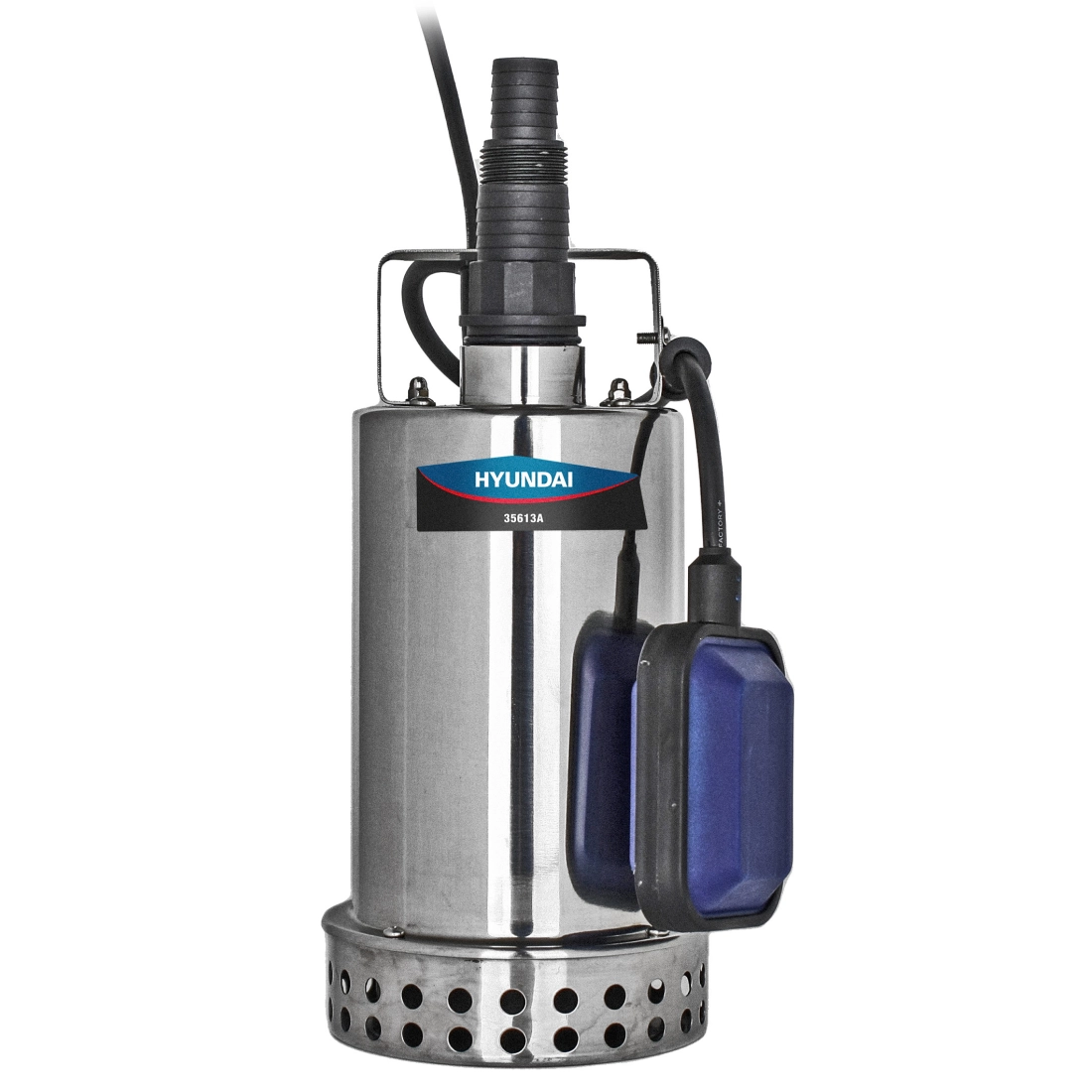

HYUNDAI 35613 Submersible electric pump INOX 550 W Clear and dirty water

search
HYUNDAI
35613
New product

Power: 550 W
Voltage: 230 V
Frequency: 50 Hz
Type: Fresh water/dirty water
Maximum depth of use: 7 m
Maximum height: 7.5 m
Maximum flow: 8.5 mc/h
IP rating: IPX8
Delivery pipe diameter: G1-1/4''
Power cable length: 10 m
Product dimensions: 200 x 150 x 295 mm
Packaging dimensions: 220 x 160 x 330 mm
Gross weight: 5.4 Kg

Technical features
Frequency (Hz)
50
Voltage (V)
230
Pump type
Submersible Pump
Fluid type
Dirty water
Maximum output capacity (Lt/min)
140
Power (W)
550
Main body material
Stainless steel
Float
Yes
Thermal protection
Yes
Maximum use depth (m)
7
Maximum height (m)
7.5
Maximum flow (m³/h)
8.5
IP classification
IPX8
Diameter feed pipe
G1-1/4''
Power cable length (m)
10
Package dimensions (mm)
220 x 160 x 330
Gross weight (Kg)
5.4
Outlet diameter thread type (mm/inches)
32 mm 1 1/4"
Details

Submersible electric pump for the movement of infiltration water, irrigation of small gardens, emptying of cellars, garages and basements, drainage of small construction sites and wells of wastewater.
It can be used in fixed or mobile installations.
Equipped with integrated float that determines the start when there is a situation of excessive water level.

Specific for clear/dirty water.

Equipment
- Float
- Power cable 10 m
- Stainless steel pump body
The main body of the pump is entirely made of stainless steel resistant to oxidation with increased durability.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
