GENERAC DF7500 MPT DUST FIGHTER DUST COLLECTION SYSTEM

GENERAC Dust Fighter DF7500 MPT is a dust suppression system equipped with a 17 KW Diesel powered engine, with a maximum horizontal coverage of 40 m.

GENERAC DF7500 MPT is equipped with a water tank with a maximum capacity of 2000 l, the 4-wheel trailer and 17 kW power generator, this allows the machine to work in any area even in the absence of electricity.

Thanks to the GENERAC DF7500 MPT, it will be possible to work safely even in areas where access to water and electricity is difficult or impossible.

Thanks to the system of nebulization of water particles up to 180 microns, dust particles bind and end up on the ground more easily. In addition, the atomization method allows you to completely cover the dust cloud saving you significant amounts of water.

GENERAC DF7500 MPT comes complete with:

2000 litre tank made entirely of stainless steel
Integrated 17 kW generator
Chassis complete with 4 wheels, drawbar and pockets for forklift handling
On-board control panel
2 peripheral impeller water pumps
Flow switch for pump protection
Pressure gauge for outlet pressure reading
Stainless steel nozzle holder crown
Water circuit draining
4 height-adjustable stabilisers
Electric tilting
Radio control for remote on/off of fan, pump and electric rotation, complete with macro-sequential controls
Electric rotation control

TECHNICAL FEATURES GENERAC DF7500 MPT

Electric motor power (fan): 7.5 kW

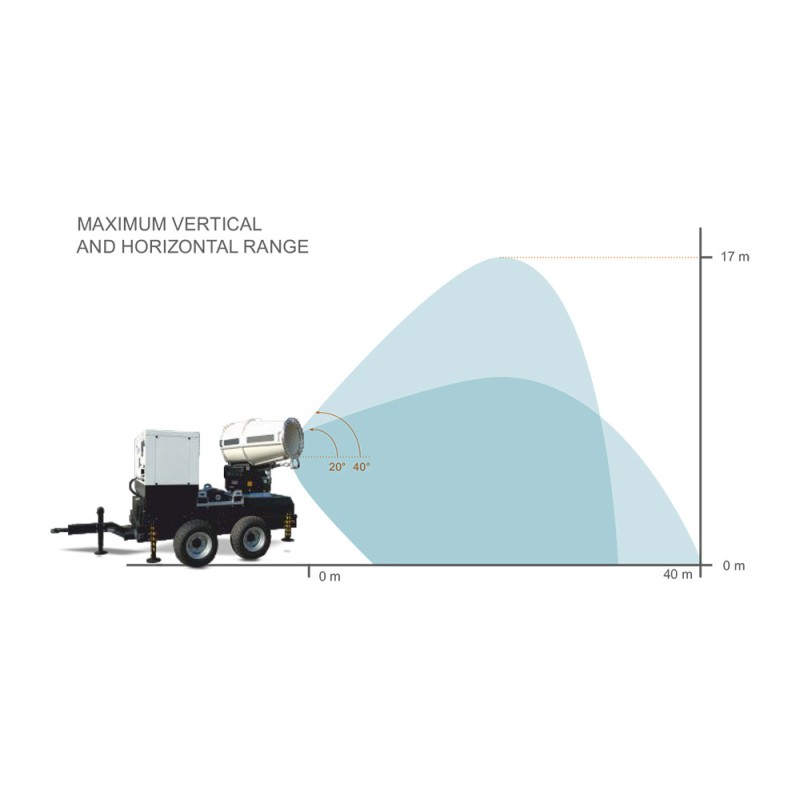

Coverage (*without wind): 30 - 40 m
Generator set: 17 KW motor
Power supply: Diesel
Engine speed. 1500 rpm
Tank capacity: 2000 liters
Working pressure: 7 - 12 bar
Water consumption: 35 l/min (12 bar) - 23 l/min (7 bar)
Autonomy: 60 minutes (12 bar) - 85 minutes (7 bar)
Water inlet filter: 180 µ
Working angle: 335°
Inclination: 0 - 40°
Width: 4370 mm
Length: 2190 mm
Height: 2640 mm
Dry weight: 2450 kg

Looking for a Dust Fighter with different technical characteristics? Here you can find the whole range of Generac or other specialized brands.

The images and technical data are not binding.
