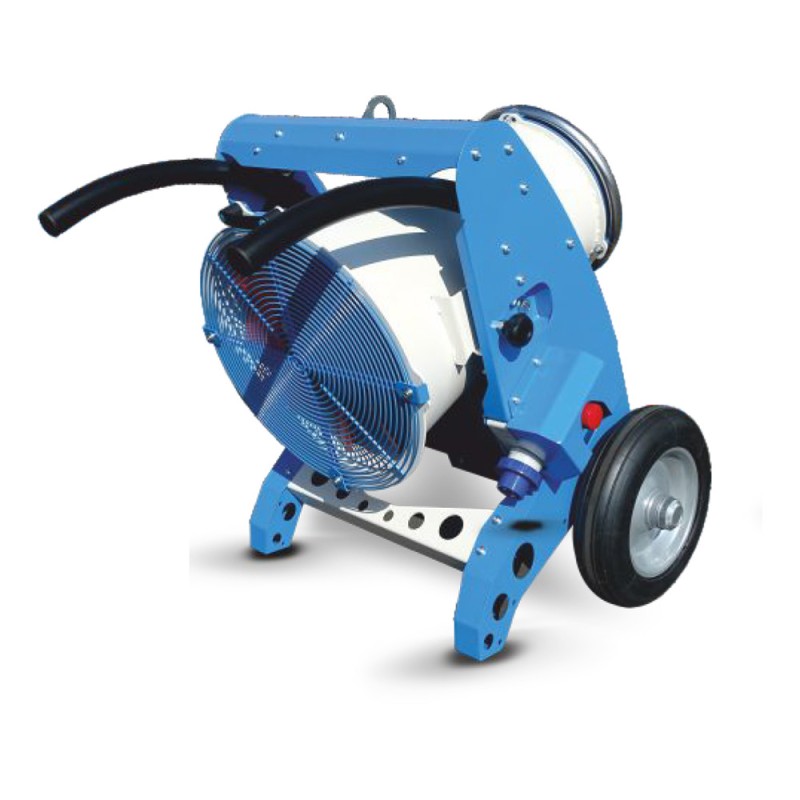

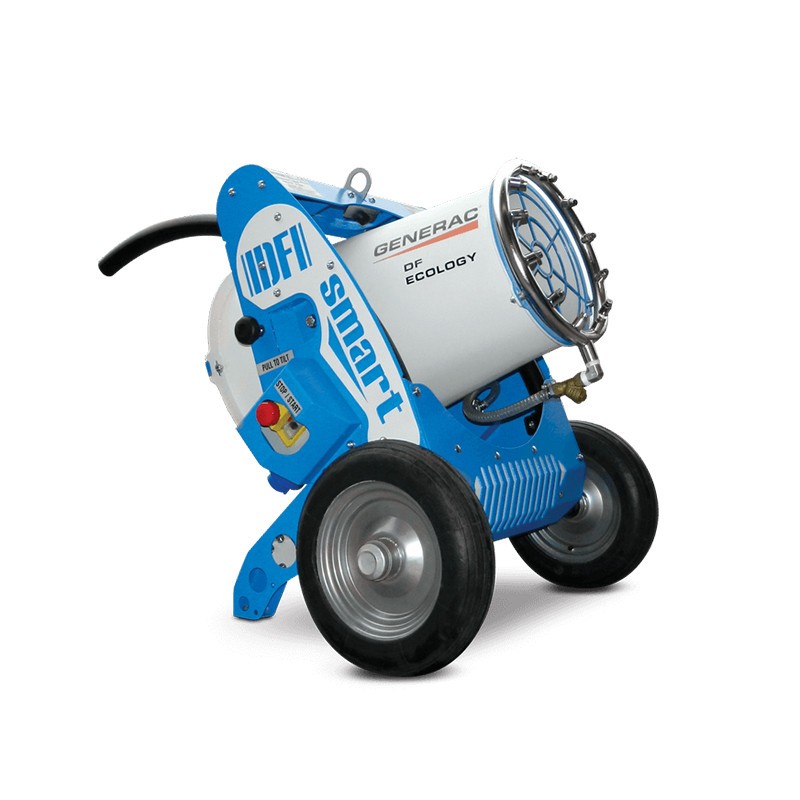

GENERAC DF SMART DUST FIGHTER DUST COLLECTION SYSTEM

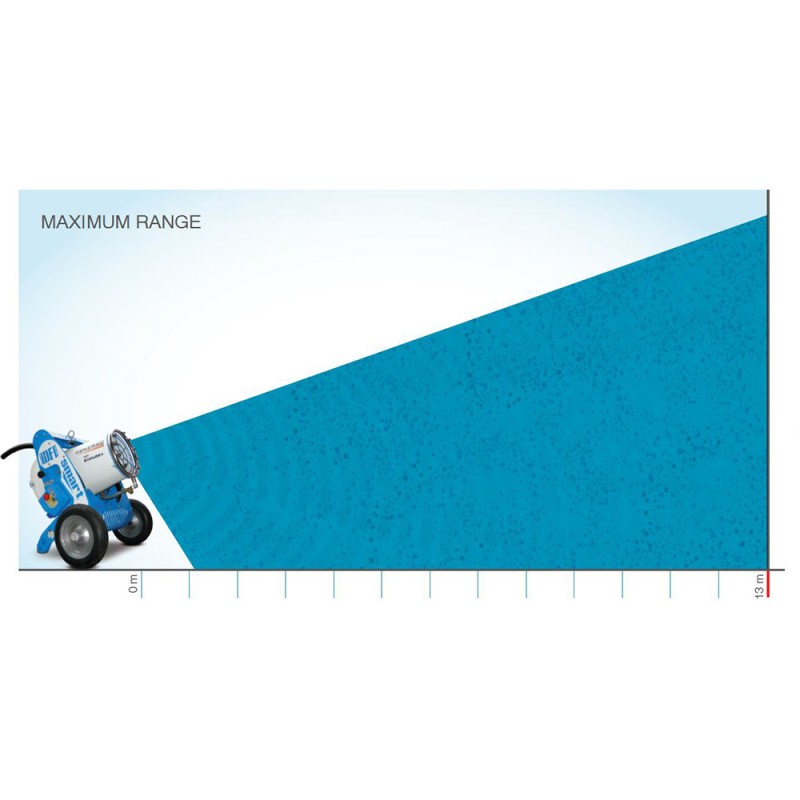

GENERAC Dust Fighter DFSMART is a dust suppression system with a maximum horizontal coverage of 13 meters, ideal for small to medium sized work areas.

GENERAC Dust Fighter DFSMART aims to solve in the most efficient way the problem of volatile dust abatement in all environments where it is necessary to contain the emission of dust into the atmosphere.

Thanks to the system of nebulization of water particles up to 300 microns the GENERAC DFSMART dust particles bind and fall to the ground more easily. In addition, the atomization method allows you to completely cover the dust cloud saving you significant amounts of water.

GENERAC DFSMART comes complete with:

- Wheels and handles for transportation
- Stainless steel crown with nozzles
- Water inlet filter
- Emergency stop button
- Tilting system

DUST FIGHTER GENERAC DFSMART TECHNICAL FEATURES

Electrical motor: Single-phase 230 V 50 Hz - 2,2 kW
Electrical connection: Socket 2 P+E - 16 A - IP 67
Water connection: Express connection type 1/2"
Fan: 9 nylon blades, aluminium hub
Air flow: 90 mc/min
Coverage (without wind): 13 mt
Nozzle holder: Stainless steel with 12 connection
Rated pressure: 1 to 5 bar
Water filter: 300 micron
Range of inclination: 10° to 50°
Width: 985 mm
Length: 785 mm
Height: 835 mm
Dry weight: 79 Kg

Water consumption:
1,0 bar - 5,4 l/min
1,5 bar - 6,6 l/min
2,0 bar - 7,5 L/min
2,5 bar - 8,5 L/min

Looking for a Dust Fighter with different technical specifications? Here you can find the whole range of Generac or other specialized brands.

Images and technical data are not binding and may be subject to revision by the manufacturer.
