FINI BK 119-270F-5,5 TWO STAGE BELT DRIVEN COMPRESSOR 5,5 HP
      FINI BK 119-270F-5,5 TWO STAGE BELT DRIVEN COMPRESSOR 5,5 HP

      FINI BK 119-270F-5,5 TWO STAGE BELT DRIVEN COMPRESSOR 5,5 HP

      BRNN701FNM653

      Power supply phase: Three phase
      Power supply voltage: 400 V
      Power supply frequency: 50 Hz
      Pump: BK119
      Cylinder capacity: 270 l
      RPM: 920 RPM
      Power: 4 KW - 5,5 HP
      Air output: 620 Lt/min - 21.9 cfm
      Pressure: 10 bar - 145 psi
      BSP: 2'
      Length: 1640 mm
      Width: 560 mm
      Height: 1330 mm
      Dry weight: 150 Kg

      List price
      3,408.68 € tax incl.
      2,794.00 € tax excl.
      Discounted Price
      1,533.91 € tax incl.
      1,257.30 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      FINI
      BRNN701FNM653

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50
      Voltage (V)
      400
      Engine rpm (rpm)
      Power (KW)
      4
      Pressure (bars)
      10
      Air output (L/min)
      Mechanical power (hp)
      5.5
      Length (mm)
      1640
      Width (mm)
      560
      Height (mm)
      1330
      Dry weight (Kg)
      Tank Capacity (l)

      Specific References

      EAN13
      8017750193694
      New

      FINI BK 119-270F-5,5 TWO-STAGE BELT DRIVEN COMPRESSOR 5,5 HP

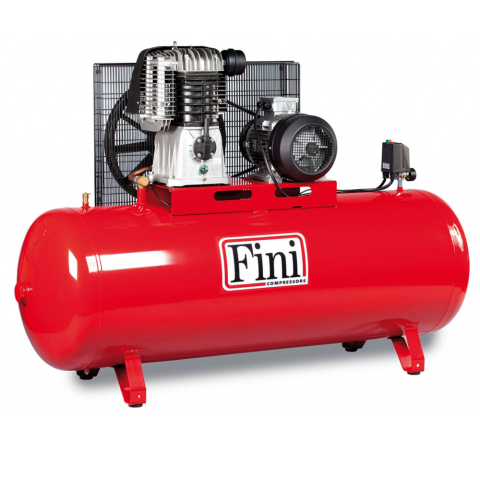

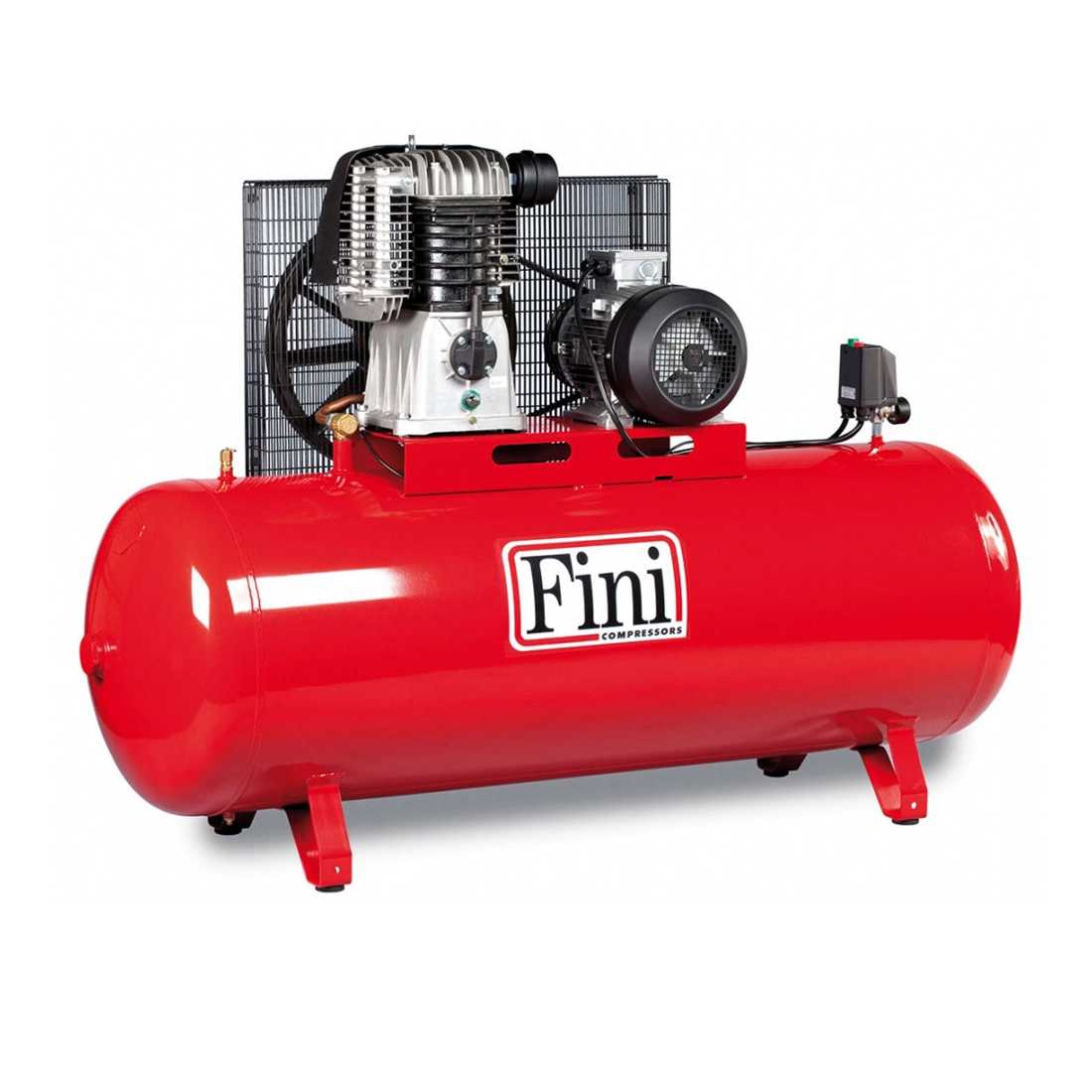

      FINI BK 119-270F-5,5 is a two-stage belt driven compressor, equipped with a BK119 two-cylinder three-phase pump, capable of delivering a mechanical power of 5,5 Hp.

      The Fini compressor is composed of powerful pumping groups that guarantee very high efficiency and reliability at the highest levels, capable of generating a pressure of 10 bar.

      FINI BK 119-270F-5,5 combines a powerful and reliable group with a large air reserve, with a cylinder able to contain up to 270 l of air, this makes this compressor suitable for all pneumatic accessories that require high air consumption.

      The FINI BK 119-270F-5,5 compressor is designed and manufactured to meet the needs of craftsmen and small industries. Thanks to the quality of the components, the precision of the assembly and the efficiency of the design, it gives an incredible longevity also due to the increased displacement of the new low rpm groups.

      FINI BK 119-270F-5,5 pumping group is equipped with large manifolds for a better cooling, complete with large anti-vibration feet for a better stability during operation.

      TECHNICAL FEATURES FINI BK 119-270F-5,5

      Power supply phase: Three phase
      Power supply voltage: 400 V
      Power supply frequency: 50 Hz
      Pump: BK119
      Cylinder capacity: 270 l
      RPM: 920 RPM
      Power: 4 KW - 5,5 HP
      Air output: 620 Lt/min - 21.9 cfm
      Pressure: 10 bar - 145 psi
      BSP: 2'
      Length: 1640 mm
      Width: 560 mm
      Height: 1330 mm
      Dry weight: 150 Kg

      Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to FINI compressors or other specialized brands.

      Images and technical data are not binding.

      Nunc tincidunt vestibulum ante, non commodo erat porta in. Morbi elementum, tortor eget vulputate facilisis, dolor lacus consectetur turpis, sed dictum augue justo id tellus. Phasellus hendrerit dolor eget dolor elementum, eleifend porta erat sagittis. Sed vulputate libero dui, at auctor elit eleifend sed. In elit mauris, ornare et quam in, tincidunt ultricies odio. Sed vehicula ex in augue dictum, quis molestie nisl mollis. Quisque mauris nulla, tempor suscipit magna in, sagittis maximus quam. In sagittis scelerisque nibh et rhoncus. Vestibulum vitae diam magna. Phasellus blandit felis eu scelerisque tincidunt. Morbi rhoncus diam nec neque iaculis fermen

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
