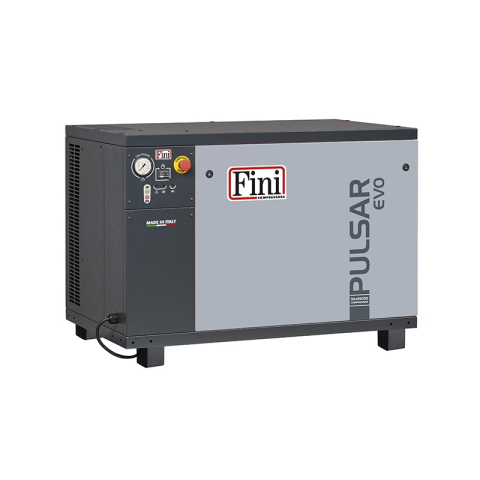

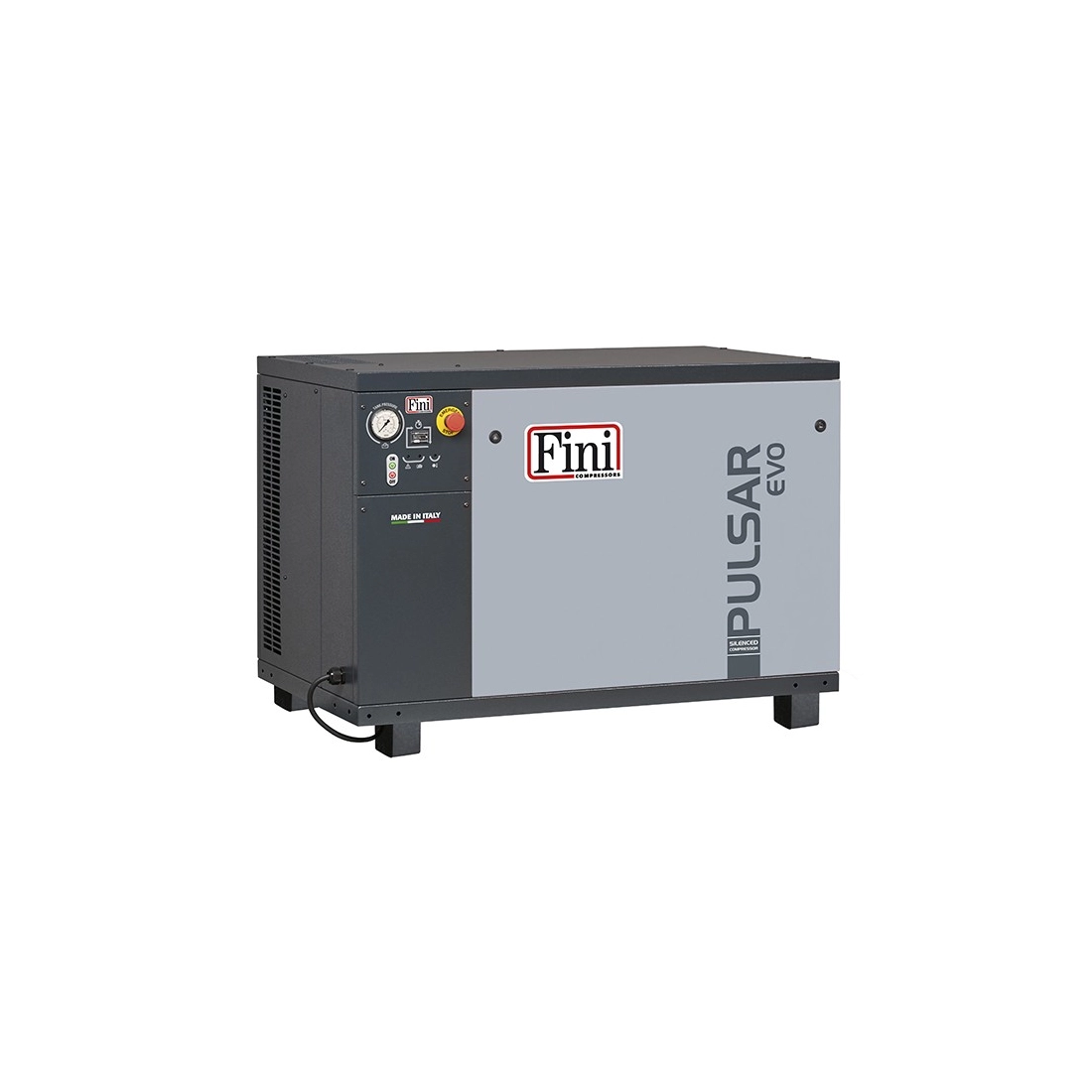

FINI PULSAR EVO BK119-7,5 PUMPING GROUP 7.5HP

Name: FINI PULSAR EVO BK119-7,5 PUMPING GROUP 7.5HP
Brand: FINI
SKU: BRAT801FNN315
Price: 2501.79 EUR
Availability: InStock

Reference BRAT801FNN315

Voltage: 400 V
Frequency: 50 Hz
Pump: BK119
RPM: 1250 RPM
Power: 5.5 KW - 7.5 HP
Air output: 840 Lt/min - 29. 7 cfm
Pressure: 10 bar - 145 psi
BSP: 2'
Acoustic pressure: 64 dB(A)
Length: 1200 mm
Width: 810 mm
Height: 1210 mm
Weight: 188 Kg

List price

5,559.54 € tax incl.

4,557.00 € tax excl.

Discounted Price

2,501.79 € tax incl.

2,050.65 € tax excl.

Shipping from 97.60 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference BRAT801FNN315

Data sheet

Frequency (Hz): 50
Voltage (V): 400
Engine rpm (rpm): 1250
Power (KW): 5.5
Pressure (bars): 10
Air output (L/min): 840
Mechanical power (hp): 7.5
Acoustic pressure: 64 dB(A)
Length (mm): 1200
Width (mm)
Height (mm)
Dry weight (Kg)

Specific References

Condition New

FINI PULSAR EVO BK119-7,5 PUMPING UNIT 7.5HP

FINI PULSAR EVO BK119-7,5 is a silenced pumping unit that can deliver a maximum pressure of 10 bar by means of a BK119 pump with a power of 5.5KW.

FINI PULSAR EVO BK119-7,5 have been designed to solve the problem of noise in working environments, they stand out on the market for the lowest noise level in their category. The pumping unit is the heart of a piston compressor and for this reason Fini pumping units are designed and manufactured to ensure high performance, efficiency and reliability over time.

The durability and efficiency of the pumping unit is largely determined by the number of revolutions per minute of the head. The lower the number of revolutions, the longer the life of the compressor will be. The multiplication of the number of revolutions is obtained by means of pulleys of different diameters applied to the motor and the head respectively.

The induction motor of the FINI PULSAR EVO BK119-7,5 is characterized by its long life and low maintenance requirements. In fact, this motor is brushless, the main component subject to wear in electric motors.

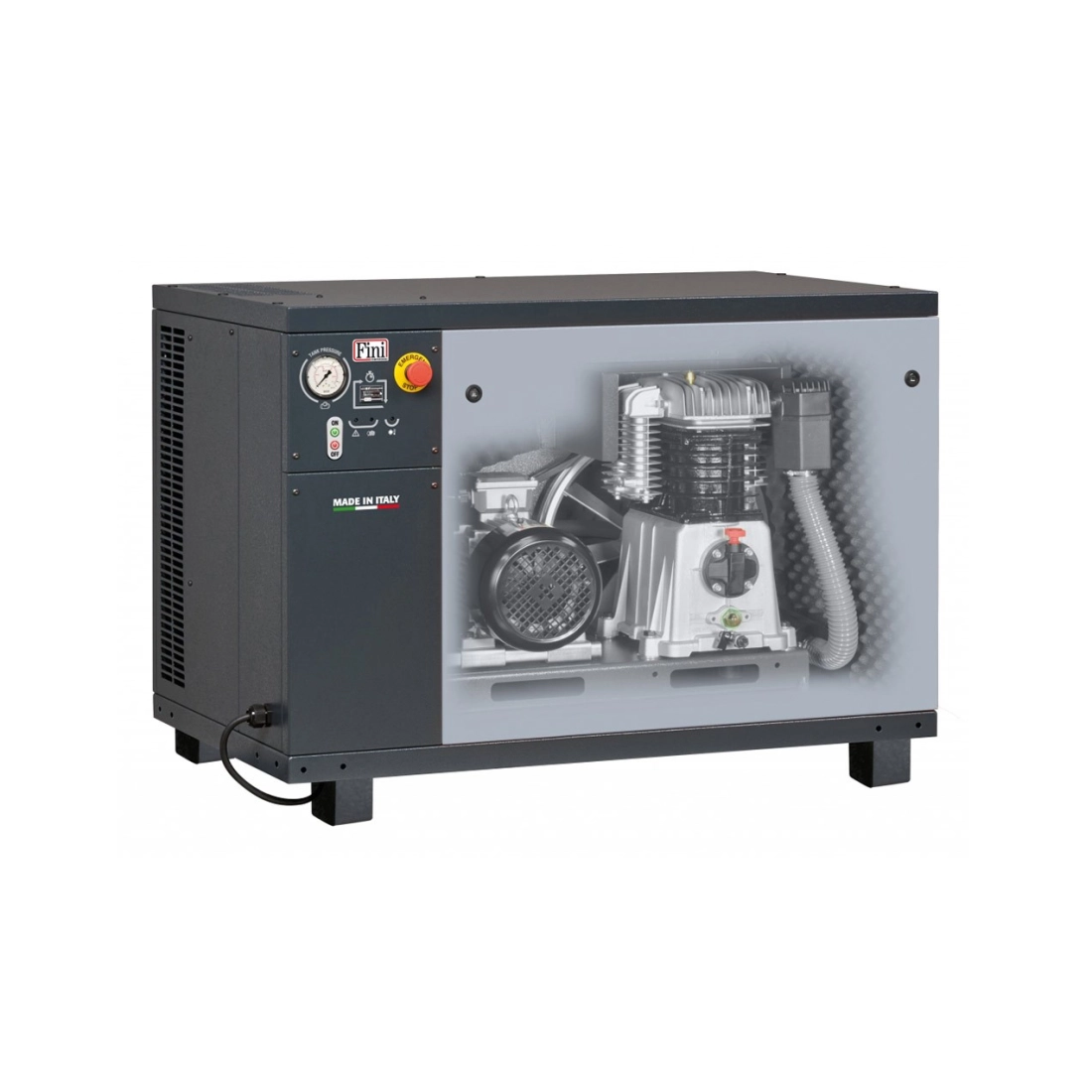

The motor of the FINI PULSAR EVO is covered with sound-absorbing panels that decrease the noise level, allowing the compressor to be used even in uncomfortable rooms.

TECHNICAL FEATURES FINI PULSAR EVO BK119-7,5

If you are looking for another product then you can see on our catalog other compressors FINI or other specialized brands.

Images and technical data are not binding and may be subject to revision by the manufacturer.
