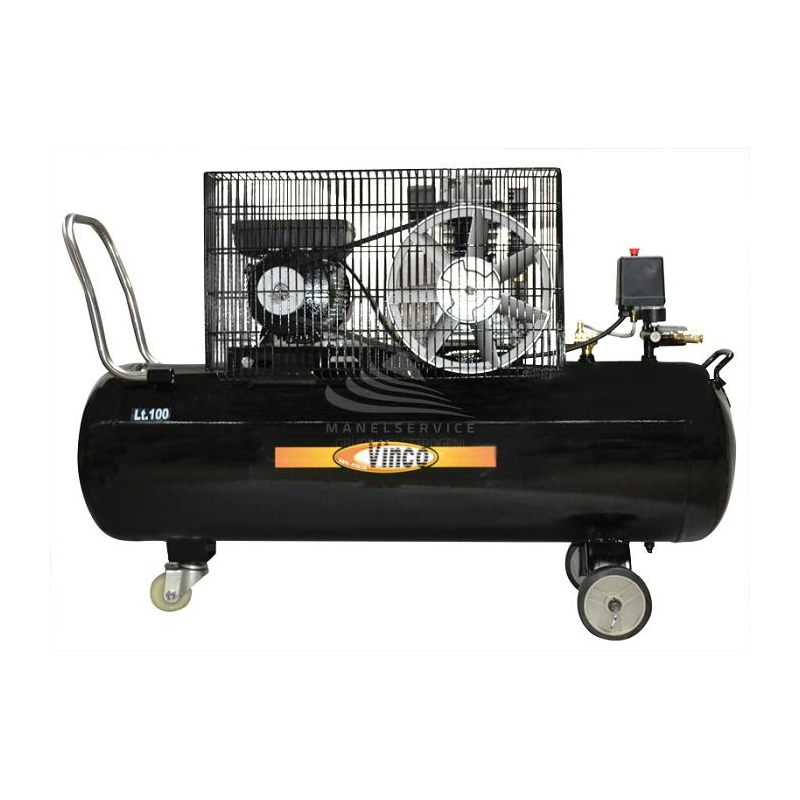

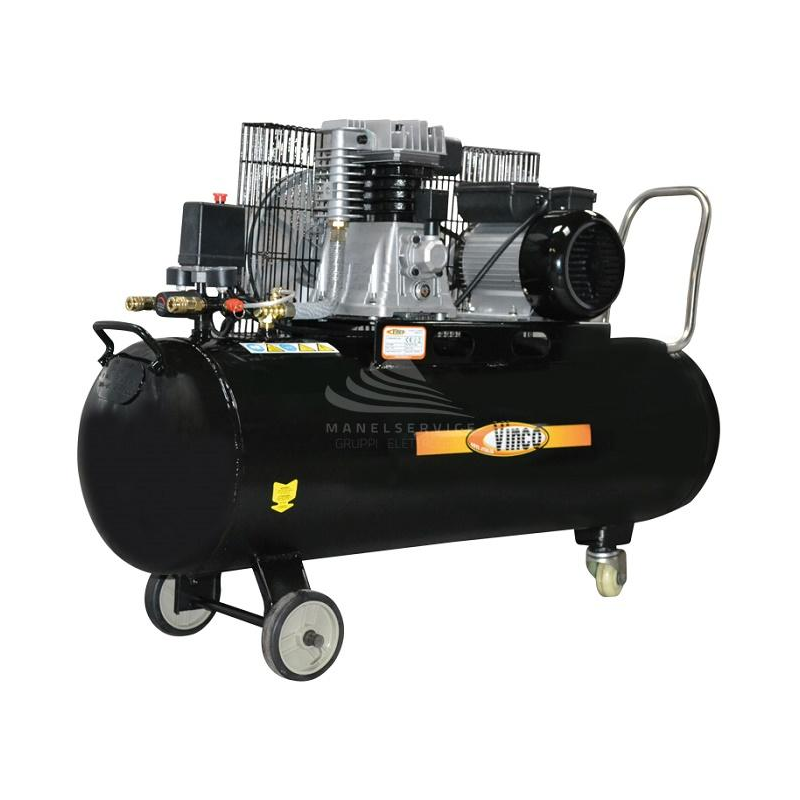

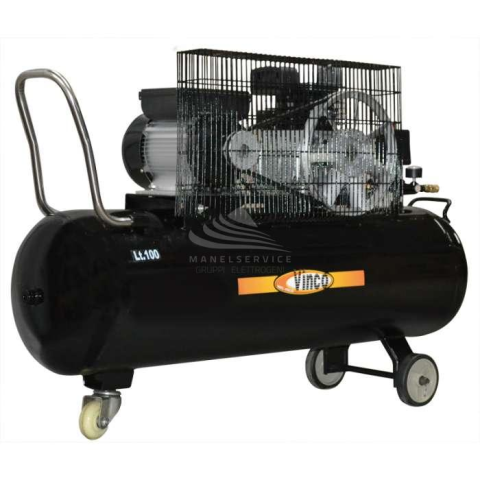

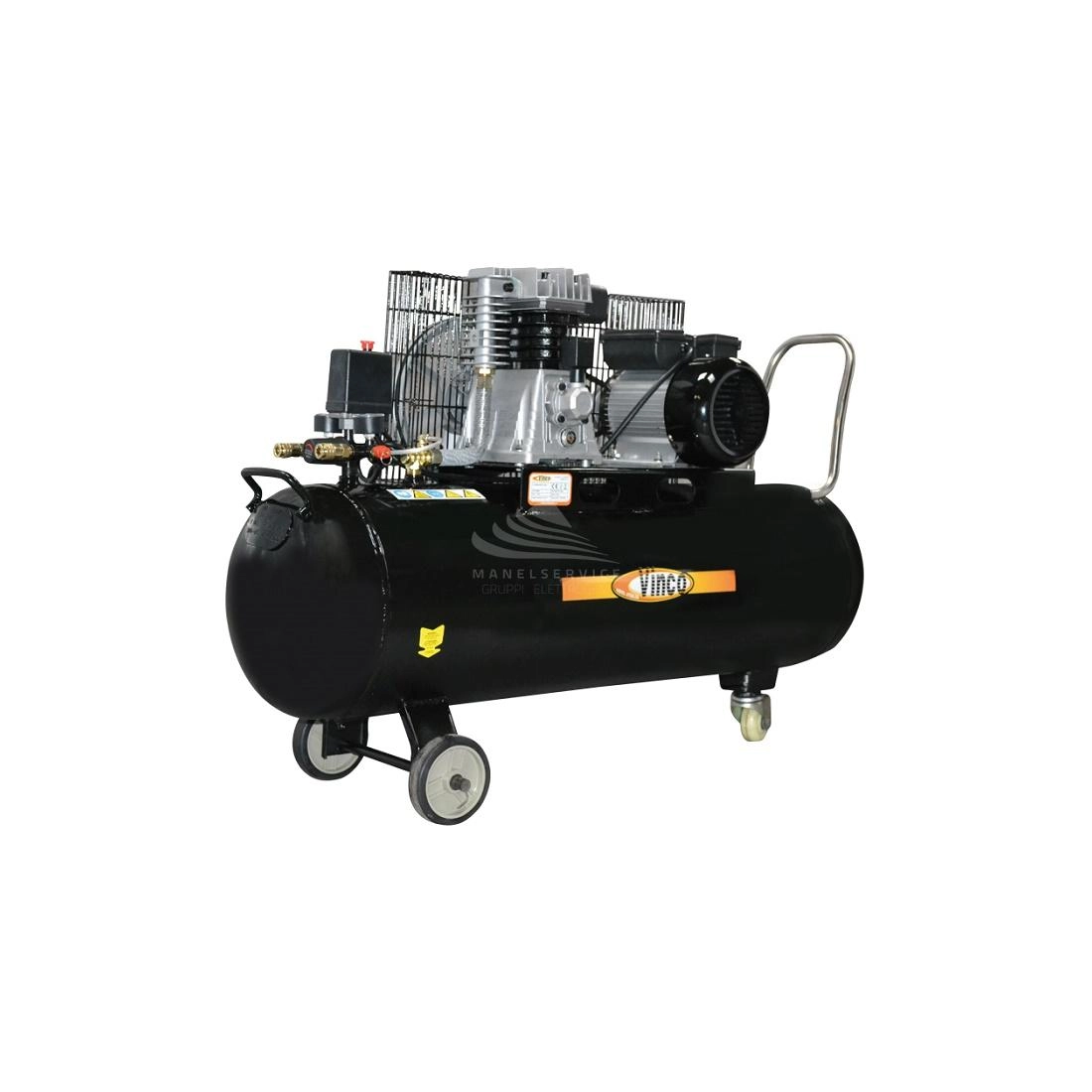

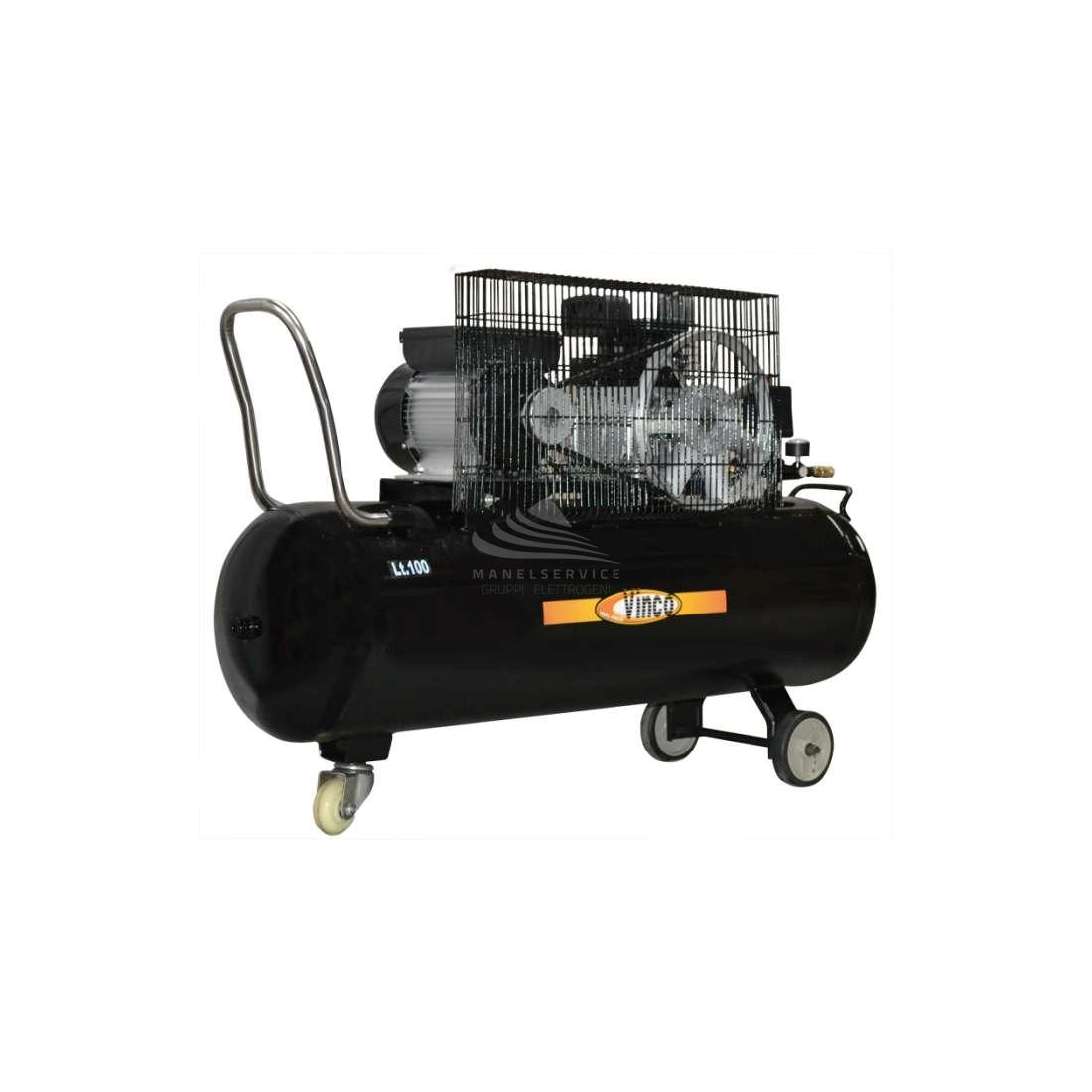

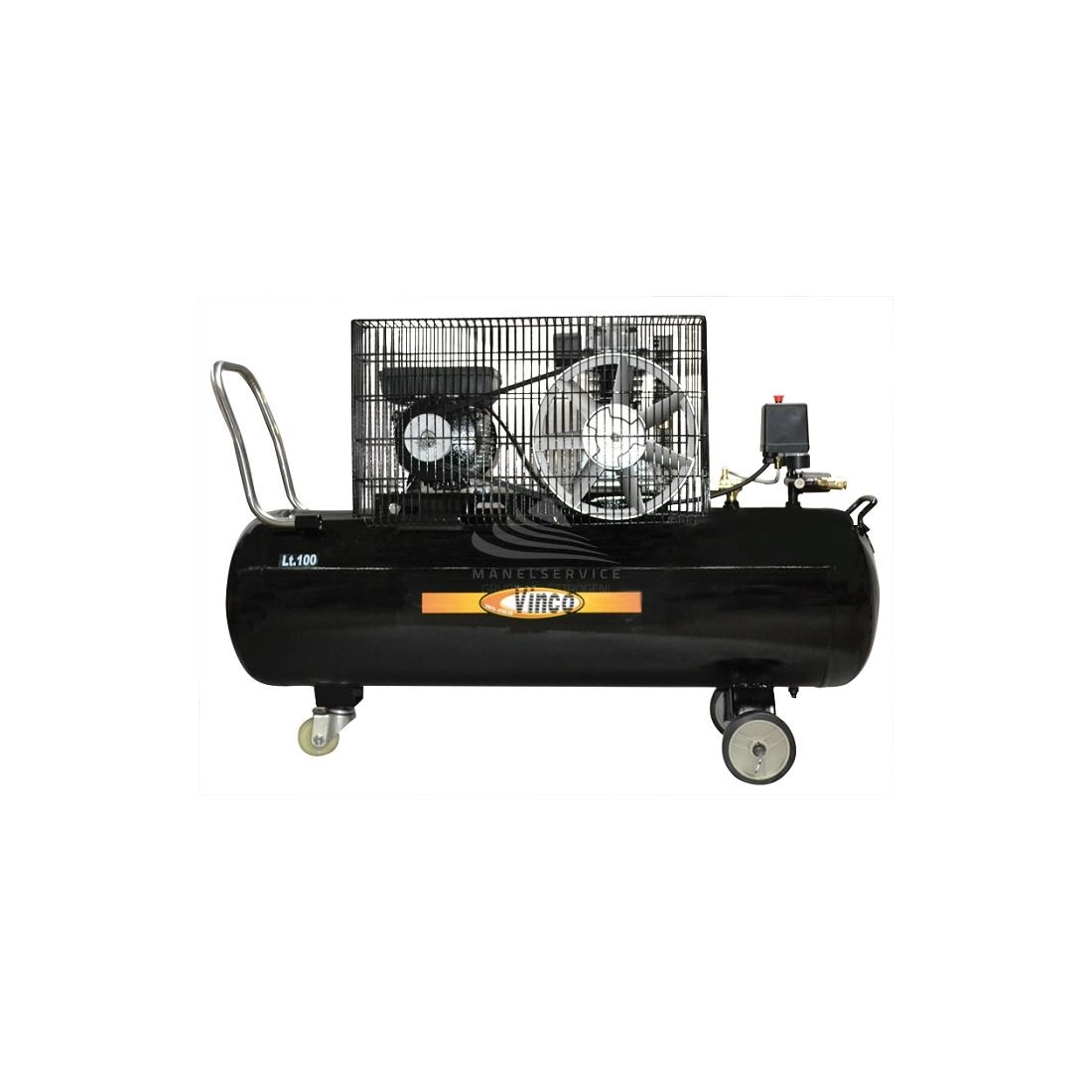

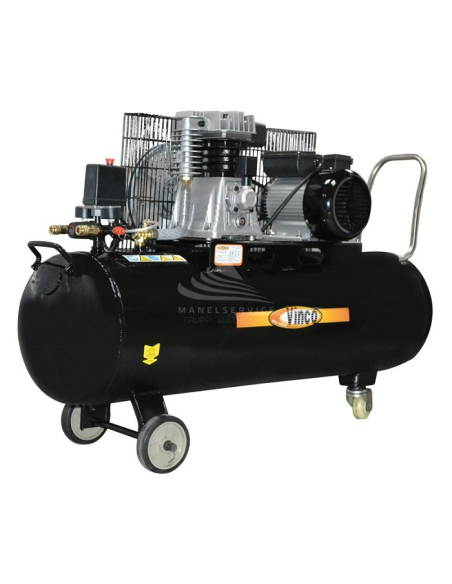

VINCO COMPRESSOR ZB-0.1/8-BAMA - COD. 60604

VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
VINCO COMPRESSORE ZB-0.1/8-BAMA - COD. 60600
60604

Phase Type: Single-phase
Voltage: 230 V
Frequency: 50 Hz
Power: 3 HP / 1.5 KW
Tank capacity: 100 Lt
Pressure: 8 bar
Intake air: 250 Lt/min
Length: 1090 mm
Width: 390 mm
Height: 760 mm
Weight: 45 Kg

Download

Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Net power (kW)
1.5
Intake air (L/m)
250
Pressure (bars)
8
Tank capacity (L)
100
EAN13
8028815606042
Brand

- Cast iron cylinder block with large cooling fins and aluminium cylinder head

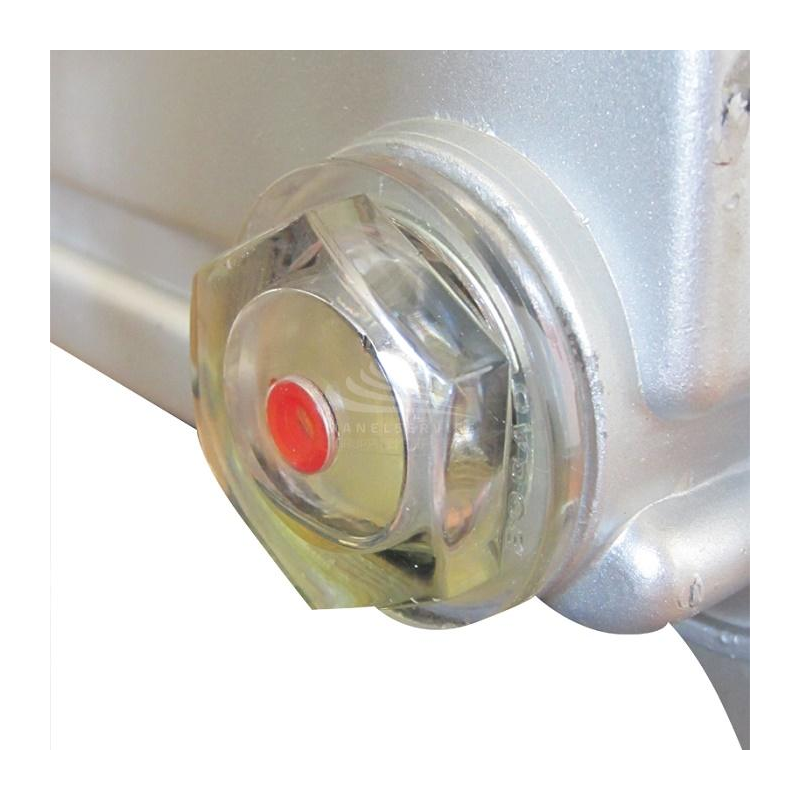

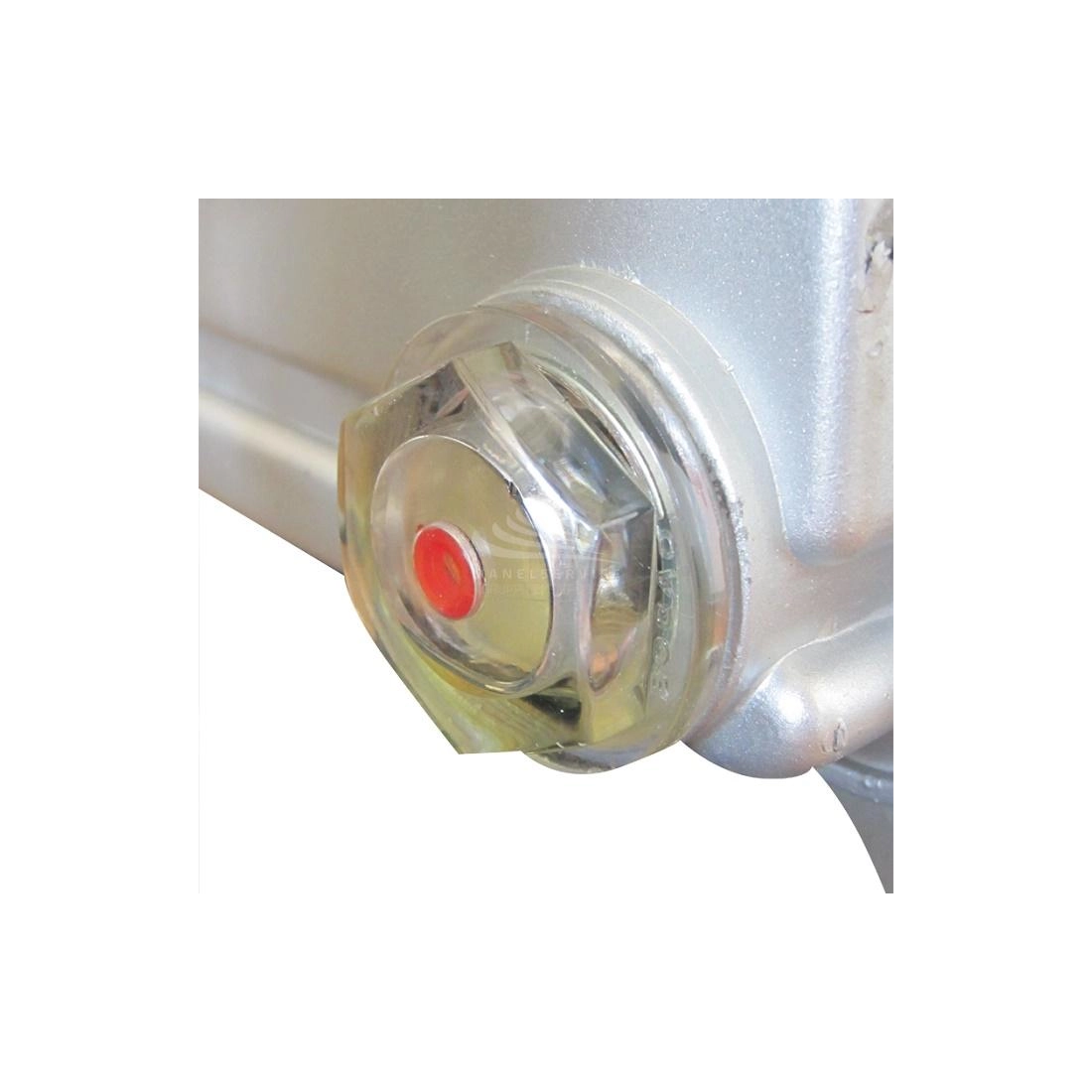

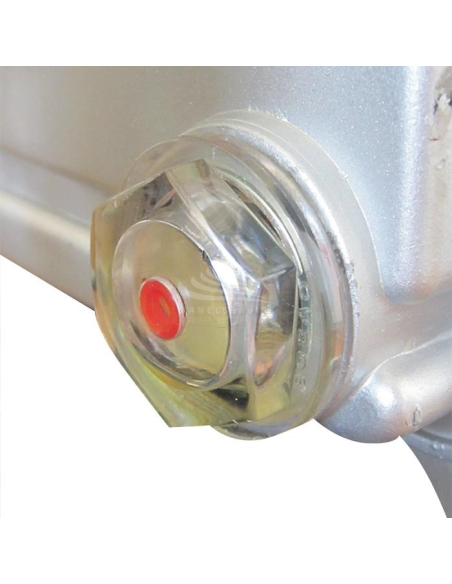

- Visual oil level indicator
- Dynamically balanced cast iron shaft

The images are purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
