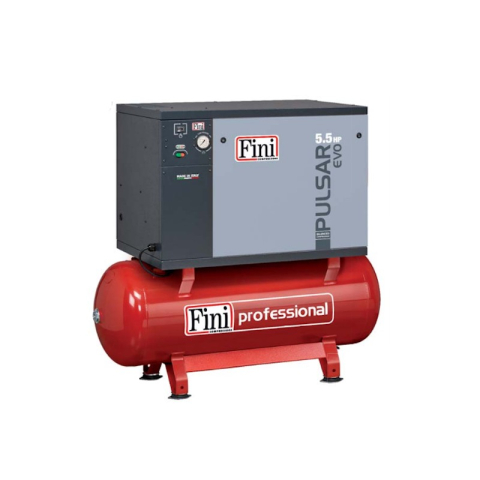

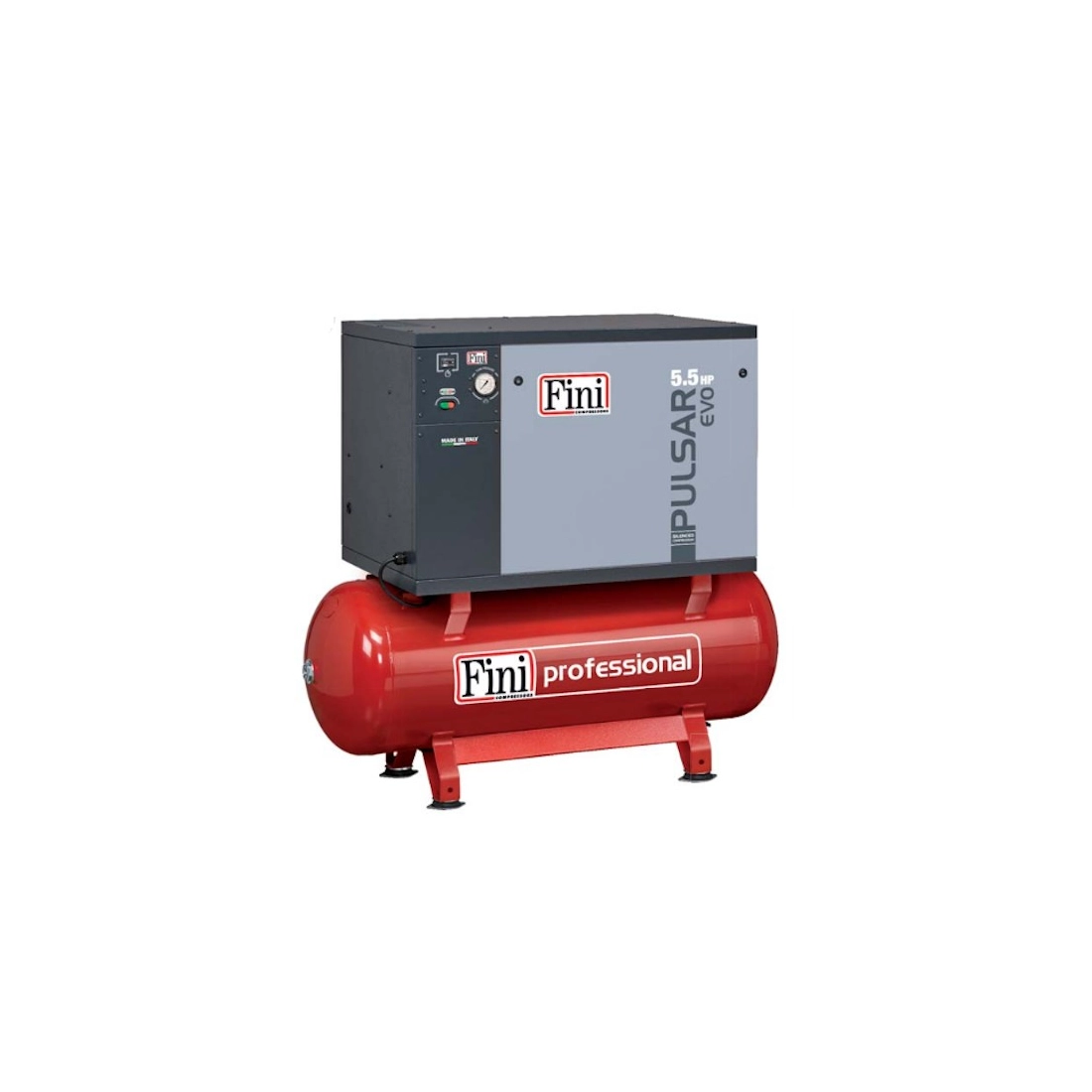

FINE EVOBK120-10 PULSAR COMPRESSOR

The Compressor Fini Pulsar EVOBK120-10 Silenced with a capacity of 500 l can deliver a maximum pressure of 10 bar by means of a BK120 pump with a power of 7,5 KW.

The Fini silenced compressor is composed of powerful pumping units that guarantee very high efficiency and reliability at the highest levels.

The Fini Pulsar EVOBK120-10 model is a professional silenced compressor equipped with a practical front door for any maintenance intervention, facilitating all the small maintenance operations and reducing the risk of sudden and irreversible breakdowns.

The Fini Pulsar EVOBK120-10 compressor is equipped with a practical control panel that includes all the necessary instrumentation to operate the machine. Included in the compressor supply is the control unit for the star triangle connection.

The Fini silenced compressor is easily transportable by pallet trucks thanks to the bar placed between the feet at the base of the tank.

The silenced compressor exploits the system thanks to which Fini is world famous for the "direct coaxial towing". The shaft and drive shaft are made in a single element, allowing: maximum mechanical efficiency, no transmission parts, no exposed moving parts.

The silenced compressor is an efficient way to solve the problem of noise in the working environment, these compressors stand out on the market for the lowest noise level in their category. The combination of high quality materials and the highest accuracy in machine assembly ensures quietness, excellent performance and long life.

TECHNICAL CHARACTERISTICS OF THE EVOBK120-10 FINE PULSAR COMPRESSOR

Voltage:400V
Frequency: 50Hz
Pump: BK120
Cylinder capacity: 500 l
RPM: 1100 RPM
Power: 7.5 KW - 10 HP
Air yield: 1080 Lt/min - 38.1 cfm
Pressure: 10 bar - 145 psi
BSP: 2'
Sound Pressure: 64 dB(A)
Length: 980 mm
Width: 1290 mm
Height: 1060 mm
Weight: 220 Kg

If you are looking for another product then you can consult on our catalog other FINI compressors or other specialized brands.

Images and technical data are not binding.
