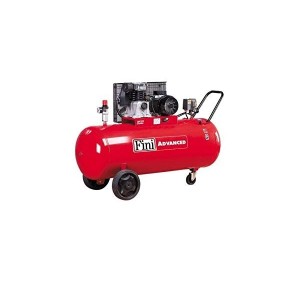

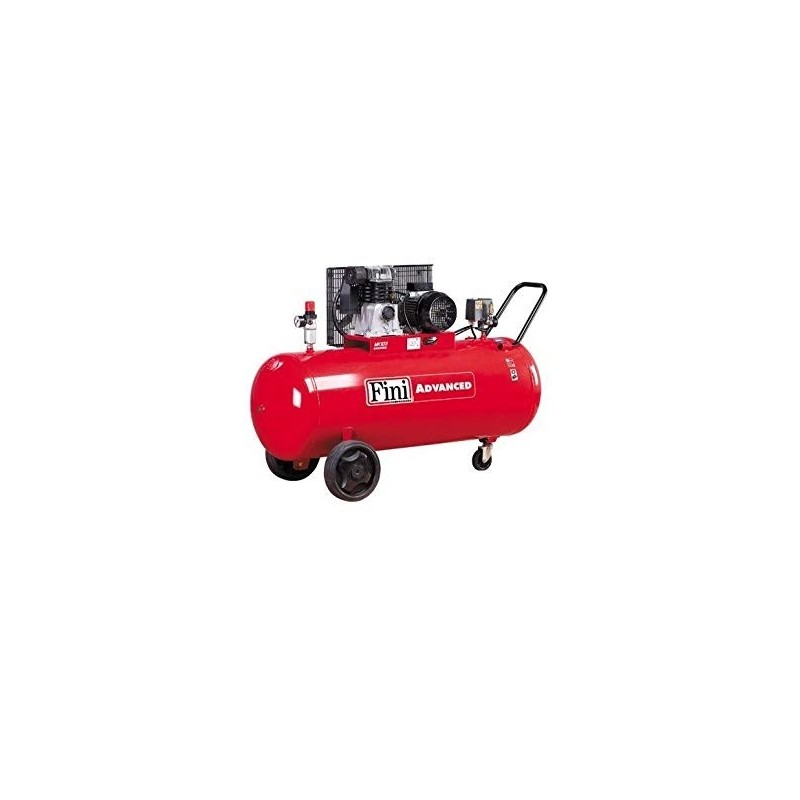

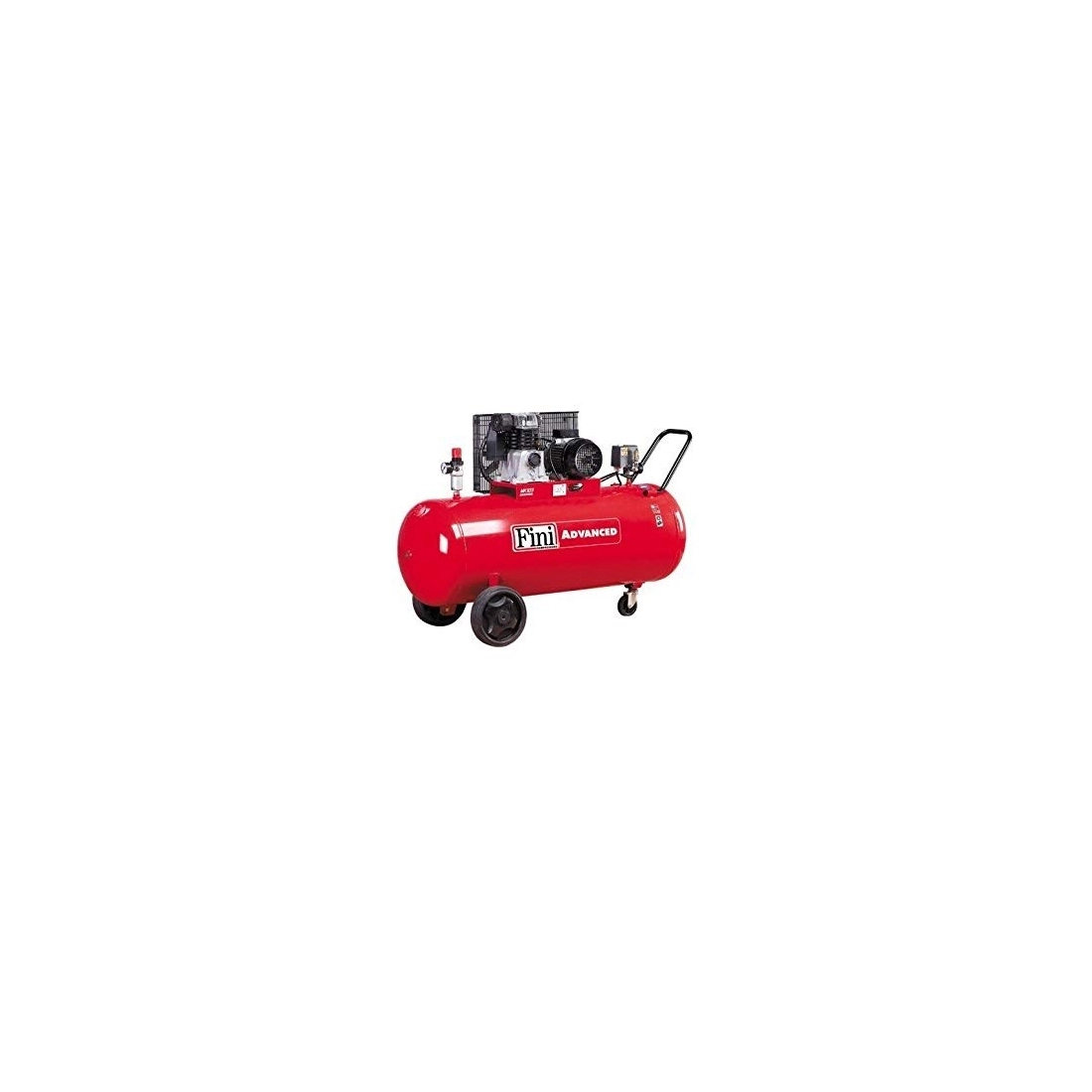

FINI ADVANCED MK 103-200-3M COMPRESSOR WITH 200 LITRES TANK
      FINI ADVANCED MK 103-200-3M COMPRESSOR WITH 200 LITRES TANK
      FINI ADVANCED MK 103-200-3M COMPRESSOR WITH 200 LITRES TANK

      FINI ADVANCED MK 103-200-3M COMPRESSOR WITH 200 LITRES TANK

      BNLC504FNM515

      Phase Type: Single-phase
      Supply voltage: 230 V
      Pumping air intake: 365 lt/min.
      Pumping type: belt type
      Maximum pressure: 10 bar
      Electric motor power: 3 HP
      Tank: Horizontal 200 lt
      Length: 890 mm
      Width: 1440 mm
      Height: 550 mm
      Net weight: 103 Kg
      Trailer

      List price
      1,853.18 € tax incl.
      1,519.00 € tax excl.
      Discounted Price
      833.93 € tax incl.
      683.55 € tax excl.
      Shipping from 50.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      FINI
      BNLC504FNM515

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      1375
      Number cylinders
      2
      Power (KW)
      2,2 KW - 3 HP
      Maximum flow (m³/h)
      21,9
      Intake air (L/m)
      365
      Pressure (bars)
      10
      Tank capacity (L)
      200
      Acoustic power
      93 dB(A)
      Acoustic pressure
      79 dB(A) at 7 m
      Length (mm)
      1460
      Width (mm)
      550
      Height (mm)
      950
      Dry weight (Kg)
      1030
      Product type
      Compressor

      Specific References

      New

      FINI ADVANCED MK 103-200-3M Compressor 3 HP - Horizontal tank 200 lt


      MK103 - twin-cylinder compressor - wheeled - horizontal 200-litre tank - 10 Bar Max - single-phase - cooling manifold - wheels and handle.

      The FINI ADVANCED MK 103 200-3M compressor is the reference for demanding hobbyists and professionals who want a reliable, high-performance and long-lasting machine.

      It is equipped with an electric motor with a power of 3 HP, has a compressed air intake capacity of 365 liters of air per minute, can express a maximum pressure of 10 bar.

      It has a horizontal compressed air storage tank of 200 litres.

      The induction motor is characterised by its very long life and low maintenance requirements.

      This motor is in fact free of brushes, the main component subject to wear in electric motors. The absence of this component gives the motor its proverbial durability.

      Intake air production: 365 lt/min
      Head type: twin-cylinder with cast iron cylinders
      Suction type: single-stage
      Lubrication: oil lubrication
      Speed: 1375 rpm


      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
