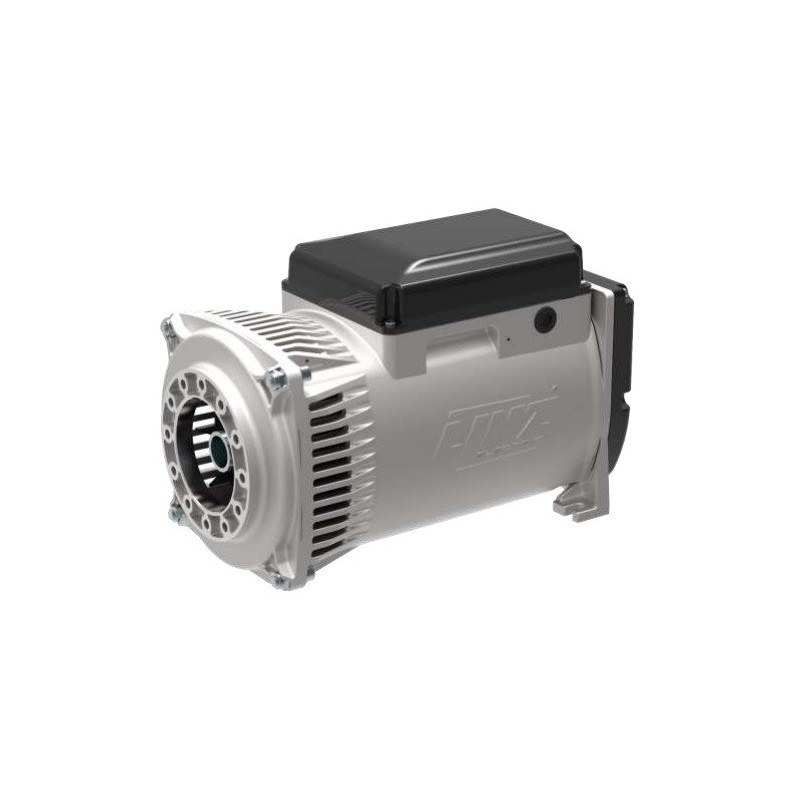

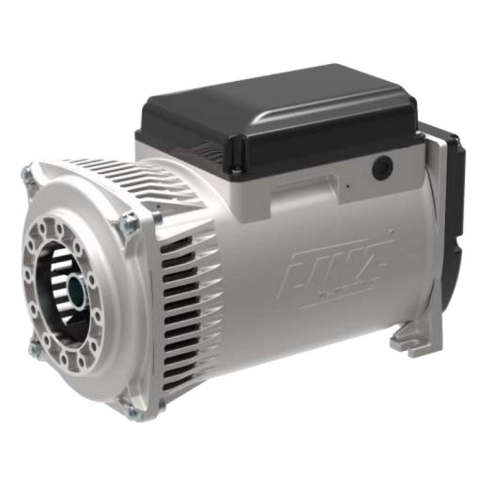

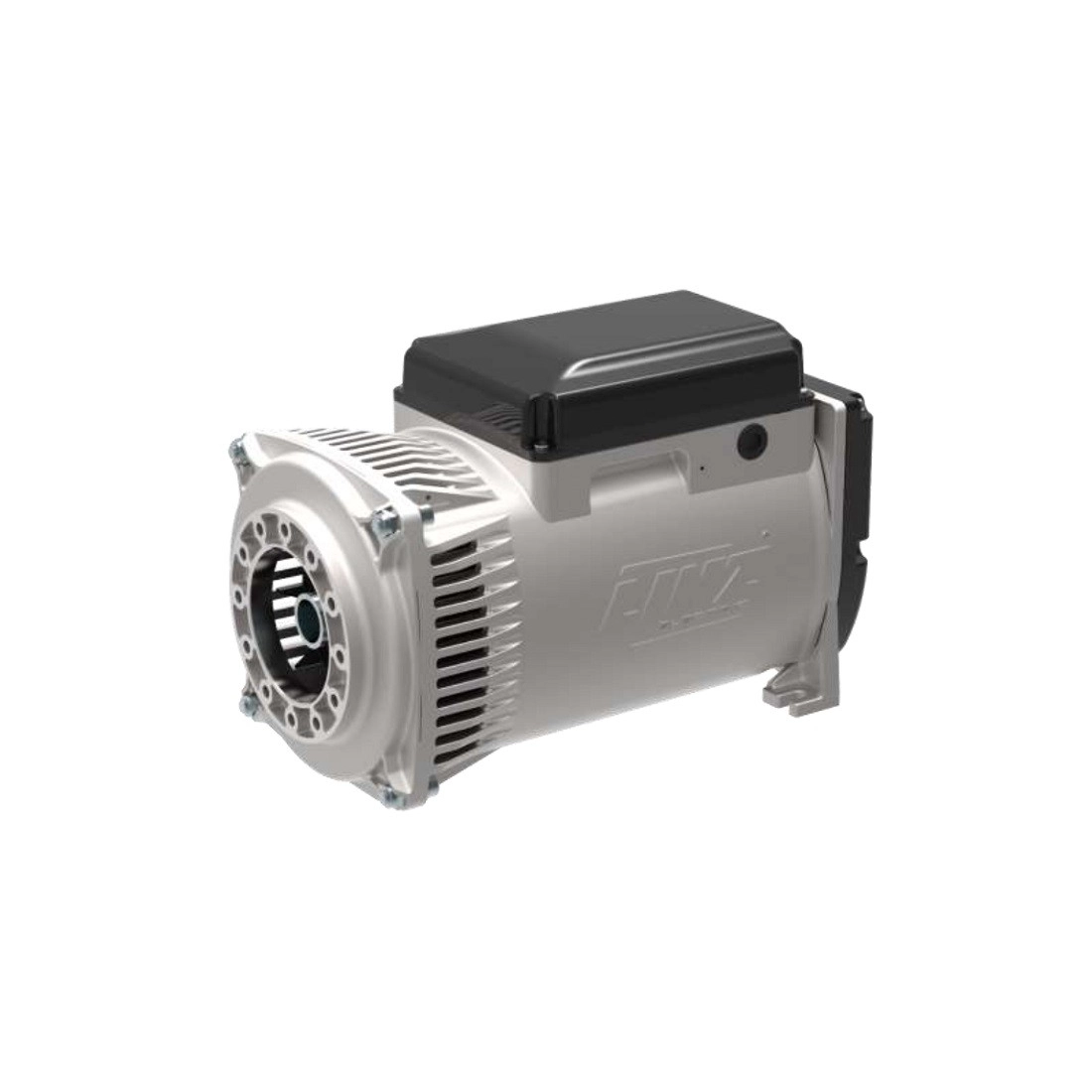

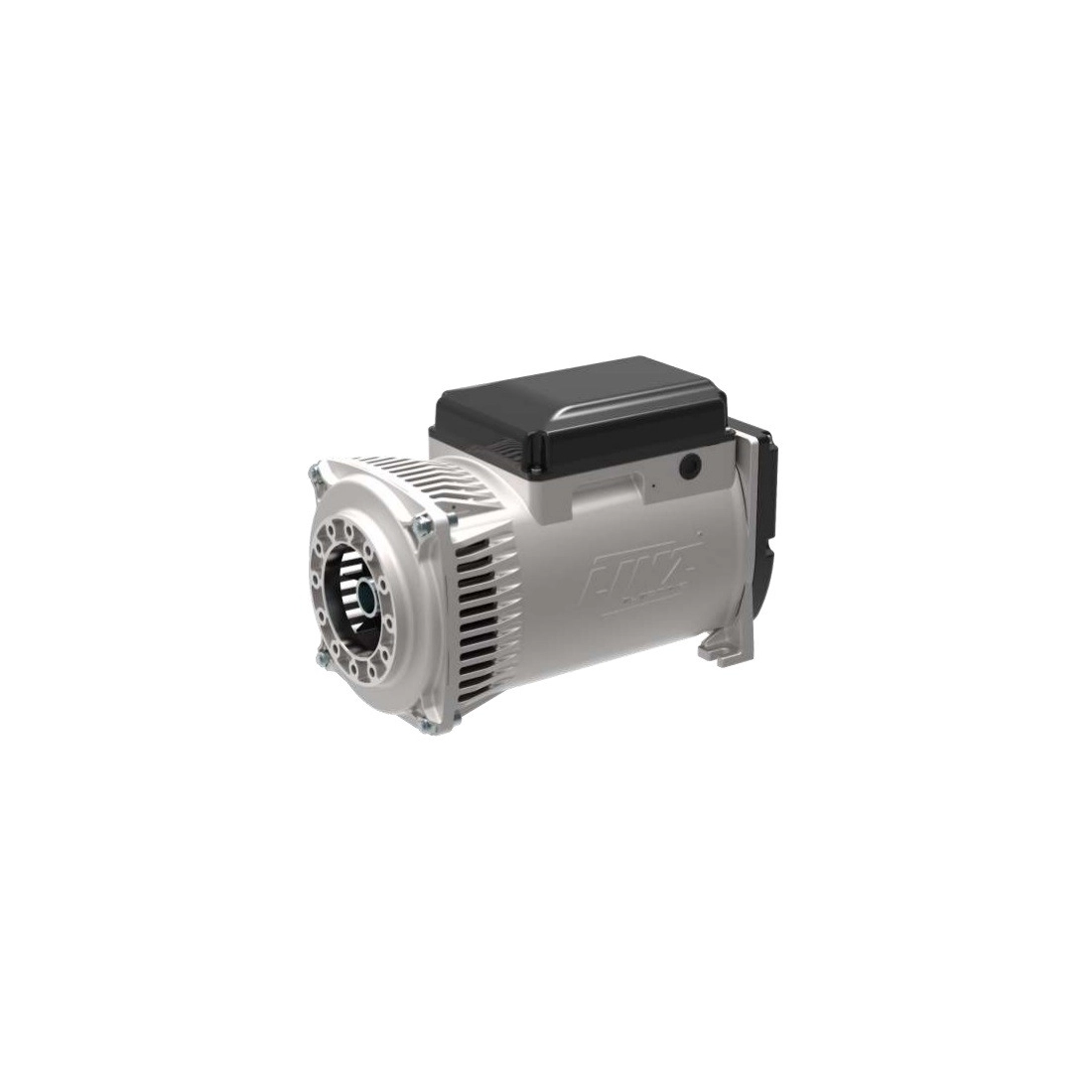

LINZ E1C11M C Single-phase alternator 115/230V 12 kVA 50 Hz Brushless

Name: LINZ E1C11M C Single-phase alternator 115/230V 12 kVA 50 Hz Brushless
Brand: LINZ ELECTRIC
SKU: E1C11M C 50 Hz
Price: 691.81 EUR
Availability: InStock

Reference E1C11M C 50 Hz J609b

Rated power at 50Hz (kVA): 12
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.8 at 50Hz
Suppression standard R.F.F.I. EN55011

List price

918.66 € tax incl.

753.00 € tax excl.

Discounted Price

691.81 € tax incl.

567.06 € tax excl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference E1C11M C 50 Hz J609b

Data sheet

Phase: Single phase
Continuous power single phase (KW): 12
Continuous power single phase (KVA): 12
Frequency (Hz): 50
Voltage (V): 115 / 230
Engine rpm (rpm): 3000
Alternator: Synchronous, brushless
Poles: 2
Single-phase power (KVA): 12
Protection degree: IP21
Motor insulation class: H
Length (mm): 440
Width (mm): 230
Height (mm): 275
Brushes: No
Type of alternator: Constant Speed
Voltage regulator: Capacitor
Weight (Kg): 52.3

Specific References

Condition New

The E1C11M series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.

CHARACTERISTICS

Compact and easy to assemble
Possibility of feeding any type of load
Wide range of accessories
High efficiency
Gamma: Single-phase alternators
Poles: 2
Phases: Single-phase
Adjustment: CONDENSER
Application: FLOW-UP
Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
