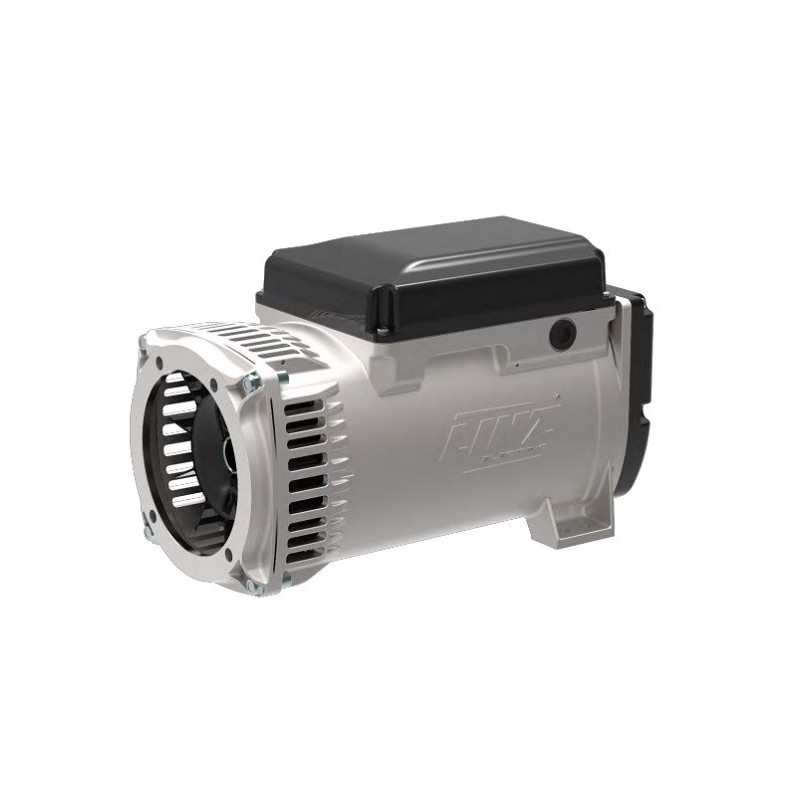

LINZ E1C10M H Single-phase alternator 115/230V 6 kVA 50 Hz Brushless
E1C10M H 50 Hz J609a
Rated power at 50Hz (kVA): 6
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 3.6 at 50Hz
Suppression standard R.F.F.I. EN55011
E1C10M H 50 Hz J609a
Data sheet
- Phase
- Single phase
- Continuous power single phase (KW)
- 6
- Continuous power single phase (KVA)
- 6
- Frequency (Hz)
- 50
- Voltage (V)
- 115 / 230
- Engine rpm (rpm)
- 3000
- Alternator
- Synchronous, brushless
- Poles
- 2
- Single-phase power (KVA)
- 6
- Protection degree
- IP21
- Motor insulation class
- H
- Length (mm)
- 395
- Width (mm)
- 195
- Height (mm)
- 249
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- Capacitor
- Weight (Kg)
- 29.3
Specific References
New
The E1C10M series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.
CHARACTERISTICS
- Compact and easy to assemble
- Possibility of feeding any type of load
- Wide range of accessories
- High efficiency
- Gamma: Single-phase alternators
- Poles: 2
- Phases: Single-phase
- Adjustment: CONDENSER
- Application: FLOW-UP
- Images and technical data are not binding.
