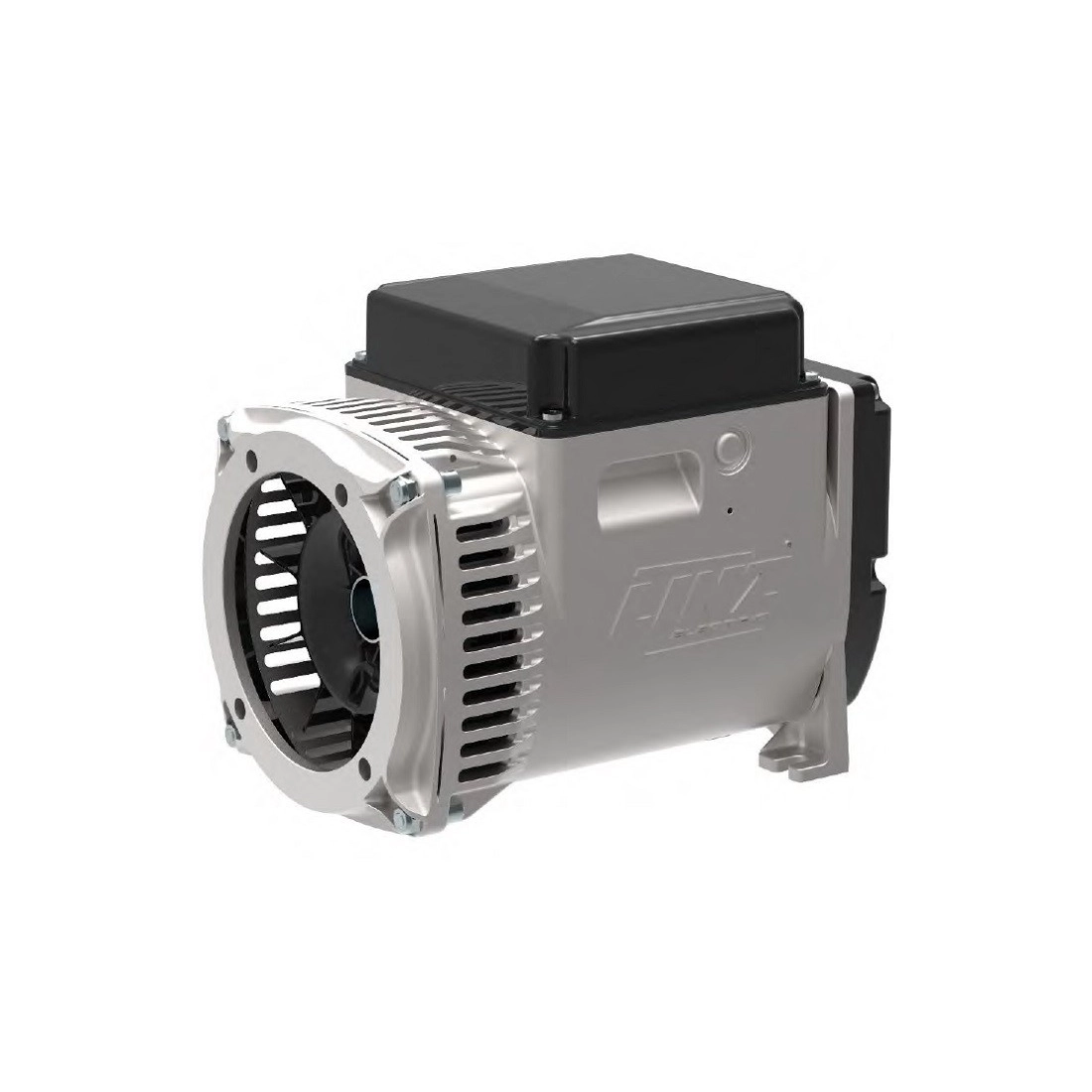

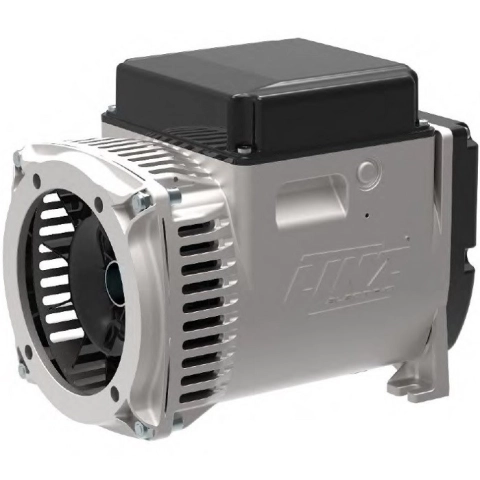

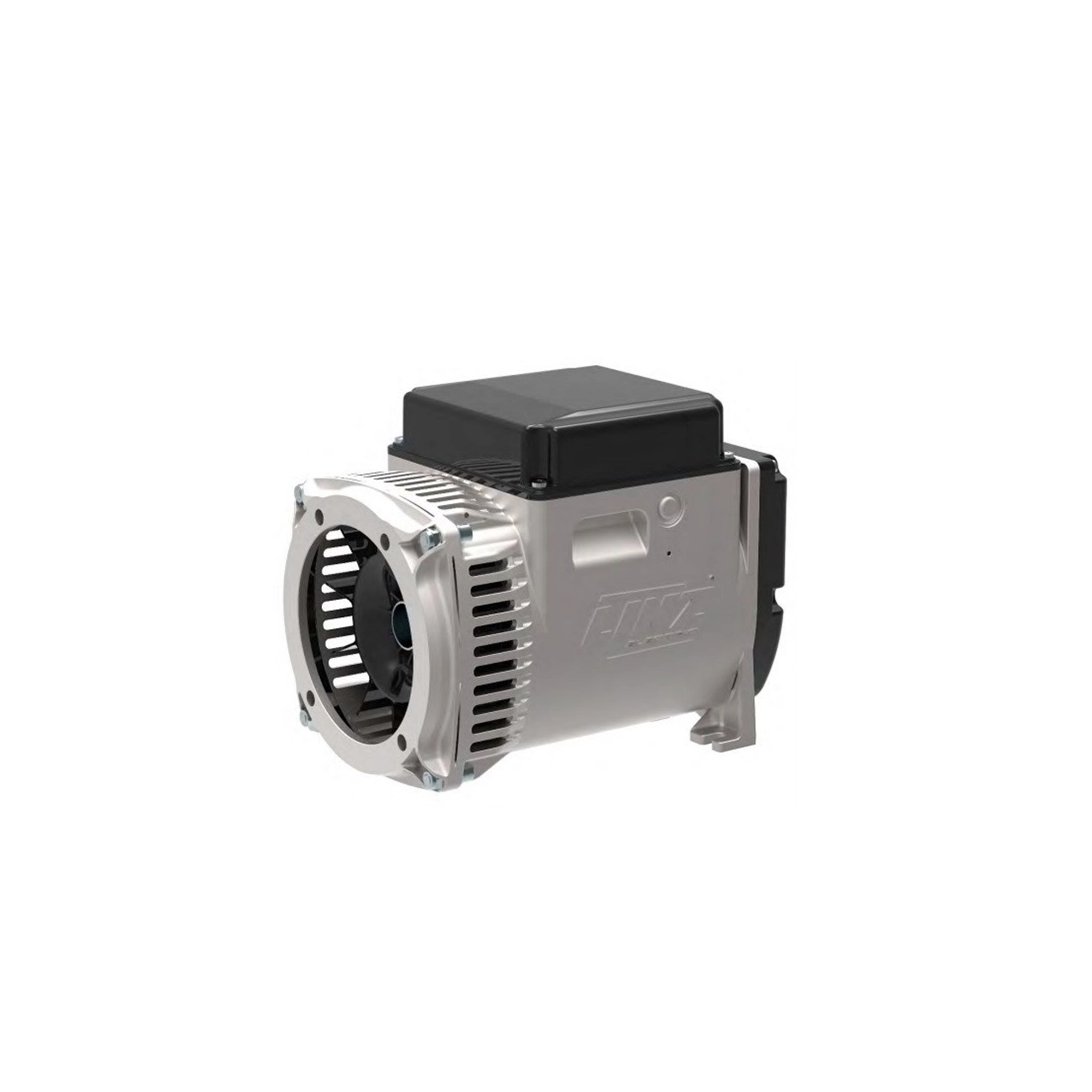

LINZ E1C10S B Single-phase Alternator 110/220V 2.7 kVA 60 Hz Brushless

LINZ E1C10S B Single-phase Alternator 110/220V 2.7 kVA 60 Hz Brushless
search
  • LINZ E1C10S B Single-phase Alternator 110/220V 2.7 kVA 60 Hz Brushless
  • LINZ E1C10S B Single-phase Alternator 110/220V 2.7 kVA 60 Hz Brushless
  • LINZ E1C10S B Single-phase Alternator 110/220V 2.7 kVA 60 Hz Brushless
LINZ ELECTRIC

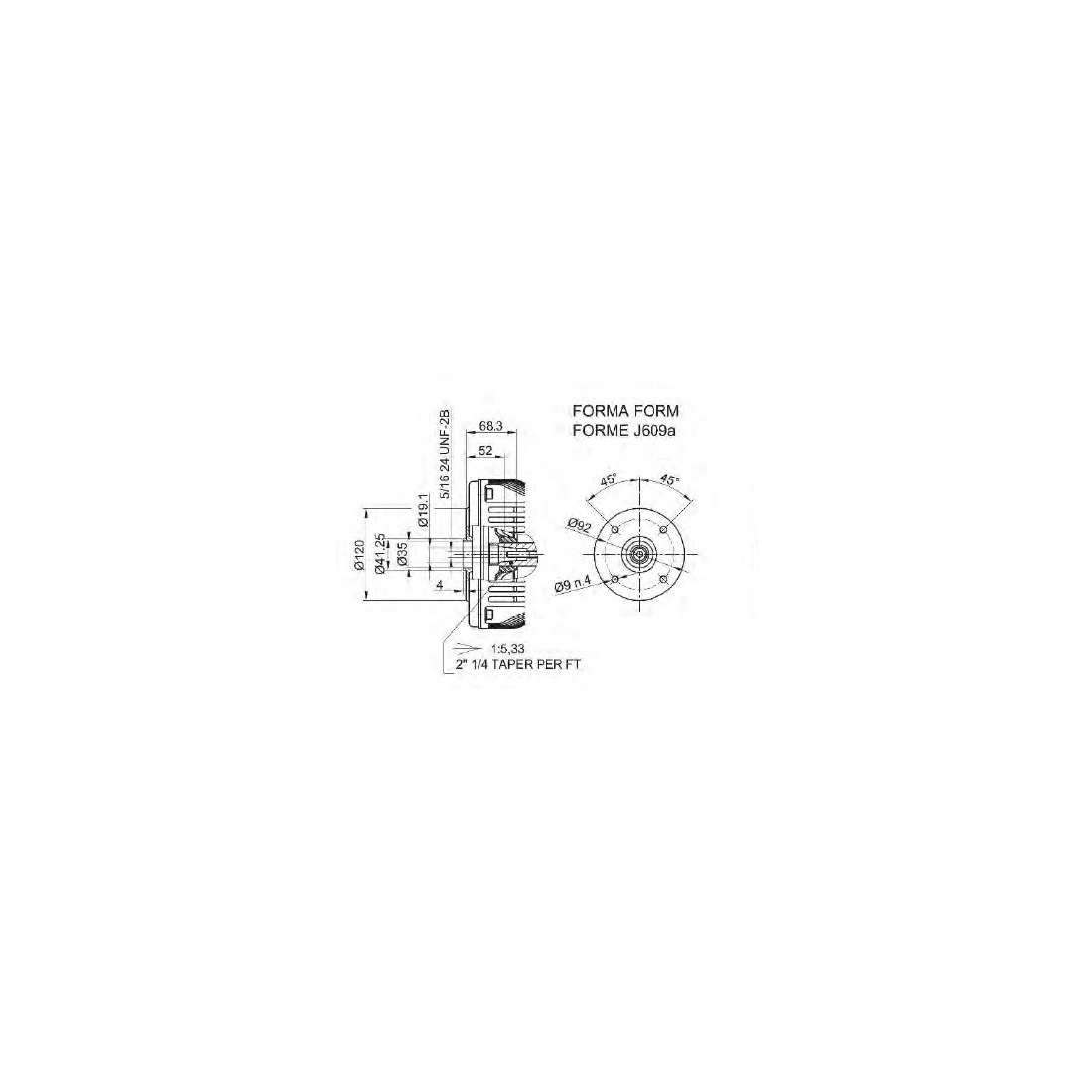

E1C10S B 60 Hz J609a
New product

Rated power at 60Hz (kVA): 2.7
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.80 at 60Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Single phase
Continuous power single phase (KW)
2.7
Continuous power single phase (KVA)
2.7
Frequency (Hz)
60
Voltage (V)
110 / 220
Engine rpm (rpm)
3600
Alternator
Synchronous, brushless
Poles
2
Single-phase power (KVA)
2.7
Protection degree
IP21
Motor insulation class
H
Length (mm)
294
Width (mm)
195
Height (mm)
245
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
Capacitor
Weight (Kg)
15.8
Details

The E1C10S series consists of single-phase, brushless, 2-pole alternators with auxiliary winding (charged on the condenser) that ensures voltage regulation.

CHARACTERISTICS

  • Compact and easy to assemble
  • Possibility of feeding any type of load
  • Wide range of accessories
  • High efficiency
  • Gamma: Single-phase alternators
  • Poles: 2
  • Phases: Single-phase
  • Adjustment: CONDENSER
  • Application: FLOW-UP
  • Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Technical data E1C10S B

(993.25k)
Related Accessories
List price
380,64 € tax incl.
312,00 € tax excl.
Discounted Price
284,82 € tax incl.
233,46 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
