SINCRO ET2 MCF Single / Three Phase Synchronous AC Alternator 7 kVA Compound
      SINCRO ET2 MCF Single / Three Phase Synchronous AC Alternator 7 kVA Compound
      SINCRO ET2 MCF Single / Three Phase Synchronous AC Alternator 7 kVA Compound

      SINCRO ET2 MCF Single / Three Phase Synchronous AC Alternator 7 kVA Compound

      ET2 MCF J609b c22.14

      Phase: Single / Three Phase
      Poles: 2
      Voltage (V): 230 / 400
      Frequency (Hz): 50
      Rpm Speed: 3000
      Single Phase Output (kVA): 4
      Three Phase Output (kVA): 7
      Constant Speed Alternator
      Compound
      Brushes
      Weight (Kg): 32.3
      Protection: IP23

      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote
      Product: SINCRO ET2 MCF Single / Three Phase Synchronous AC Alternator 7 kVA Compound

      PERSONAL DATA

      Ask a question
      Product: SINCRO ET2 MCF Single / Three Phase Synchronous AC Alternator 7 kVA Compound
      Offer on letterhead
      Product: SINCRO ET2 MCF Single / Three Phase Synchronous AC Alternator 7 kVA Compound
      SINCRO
      ET2 MCF J609b c22.14

      Data sheet

      Phase
      Single phase / Three phase
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KW)
      3.2
      Single-phase power (KVA)
      4
      Three-phase power (KW)
      5.6
      Three-phase power (KVA)
      7
      Efficiency (%)
      89
      Protection degree
      IP23
      Dry weight (Kg)
      32.3
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      Compound

      Specific References

      New

      Three phase brushes alternator - Compound.

      - Self-regulated
      - IP23
      - Standard voltage 230/400 V - 50 Hz
      - Short circuit current greater than 3 In
      - Standard coupling IM B35 cone 22.14 / cone 25.4 / cone 35
      - Couplings IM B34, IM B35, SAE
      - With reinforced phase

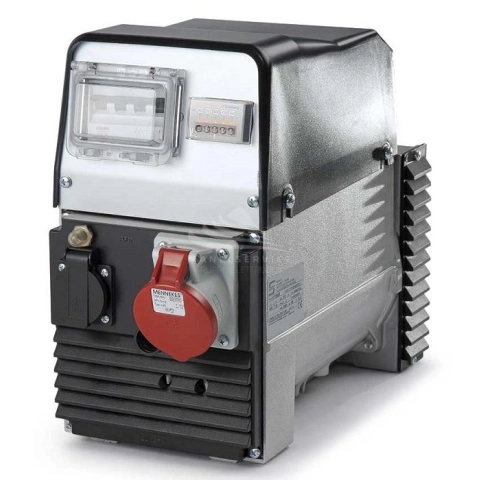

      The image is purely indicative.
