SINCRO ER2 CBA Single Phase Synchronous AC Alternator 4.8 kVA AVR
      SINCRO ER2 CBA Single Phase Synchronous AC Alternator 4.8 kVA AVR
      SINCRO ER2 CBA Single Phase Synchronous AC Alternator 4.8 kVA AVR

      SINCRO ER2 CBA Single Phase Synchronous AC Alternator 4.8 kVA AVR

      ER2 CBA J609b c25.4

      Phase Type: Single-phase
      Maximum single-phase output: 4.8 KW
      Maximum single-phase continuous output: 3.8 KW
      Maximum single-phase output: 6.0 KVA
      Maximum single-phase continuous output: 4.8 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection class: IP23
      Alternator speed: 3000 rpm
      Number of poles: 2
      Weight: 21.6 Kg
      Brushes
      Voltage regulator: AVR
      Type of alternator: constant speed

      List price
      734.44 € tax incl.
      602.00 € tax excl.
      Discounted Price
      445.30 € tax incl.
      365.00 € tax excl.
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      ER2 CBA J609b c25.4

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KW)
      4.8
      Single-phase power (KVA)
      4.8
      Efficiency (%)
      78
      Protection degree
      IP23
      Dry weight (Kg)
      21.5
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR

      Specific References

      New

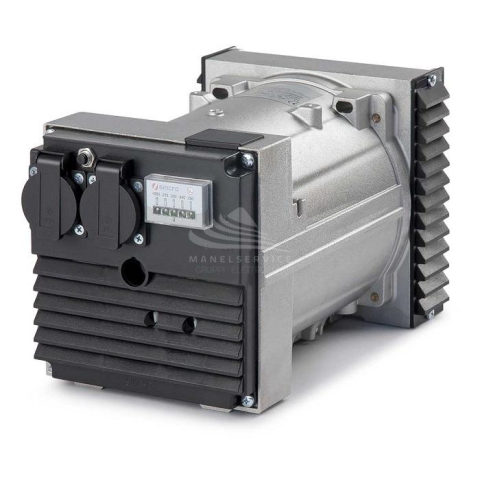

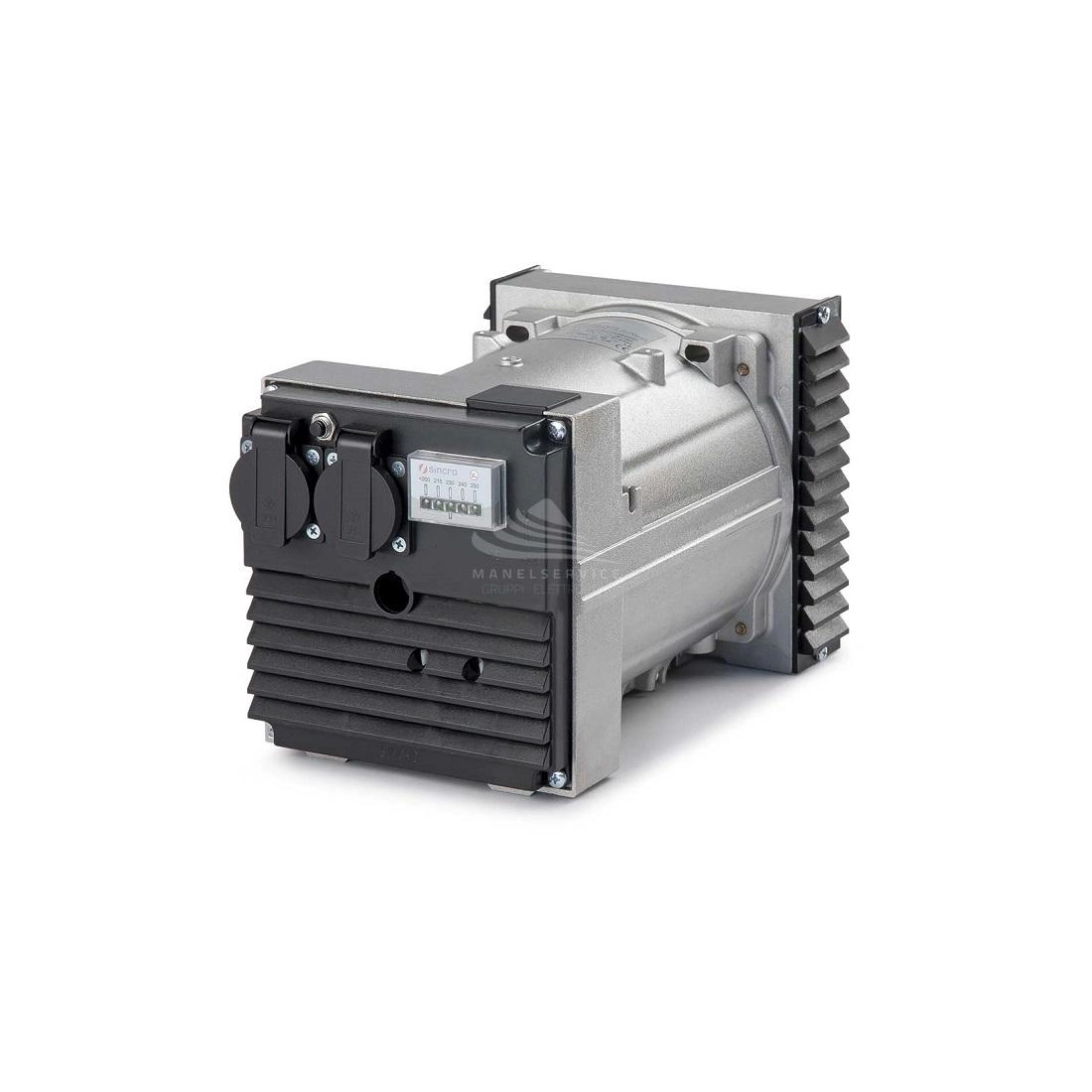

      SINCRO ER2 CBA ALTERNATOR 4,8 KVA SINGLE-PHASE

      Alternator SINCRO ER2 CBA single-phase with a power of 4,8KVA, this unit has a Brushes operation equipped with AVR voltage regulator.

      The alternator is foreseen for the operation at frequency 50 or 60 HZ, the possibility to work on these two frequencies makes possible its application for any service voltage increasing its versatility, for the correct operation. SINCRO ER2 CBA has been realized with the body entirely in steel, this makes the alternator very resistant and suitable for heavy duty use.

      All the components that make up the SINCRO ER2 CBA alternator are subjected to a specific coating and/or impregnation process to safeguard the functionality of the generator and protect the critical peers in the various conditions of use.

      SINCRO ER2 CBA is a brushes alternator, this feature together with the high efficiency of the regulator ensure a low level of interference with radio waves.

      SINCRO alternators are all equipped with a voltage regulator, in the case of the ER2 CBA AVR model.

      The voltage regulator is an electronic device which regulates the alternating current coming from the alternator and transforms it into direct current.

      In our field voltage regulators are widely used in the latest generation of synchronous generators.

      All synchronous machines need an electronic control system to work, and this device, known as "voltage regulator" or "AVR" (acronym of Automatic Voltage Regulator), guarantees the good working of the machine and above all of the electric network underneath it.

      Select the alternator that reflects the technical specifications you require, visit our dedicated section to understand how.

      TECHNICAL FEATURES SINCRO ER2 CBA

      Phase Type: Single-phase
      Maximum singlephase output: 4.8 KW
      Maximum singlephase continuous output: 3.8 KW
      Maximum singlephase output: 6.0 KVA
      Maximum singlephase continuous output: 4.8 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection class: IP23
      Alternator speed: 3000 rpm
      Number of poles: 2
      Weight: 21.6 Kg
      Brushes
      Voltage regulator: AVR
      Type of alternator: constant speed

      Looking for a product with different features? Here you can find the full range SINCRO and other specialized brands.

      Images and technical data are not binding and subject to changes by the manufacturer

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
