      EK2 LAT J609b c 25.4

      Phase Type: Single Phase
      Maximum singlephase output: 6.4 KW
      SinglePhase Continuous Output: 5.6 KW
      Maximum singlephase output: 8.8 KVA
      SinglePhase Continuous Output: 7.0 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Degree of protection: IP23
      Alternator speed: 3000 rpm
      Number of poles: 2
      Weight: 30.5 Kg
      Without brushes
      Voltage regulator: Condenser
      Alternator type: Constant speed

      List price
      821.06 € tax incl.
      673.00 € tax excl.
      Discounted Price
      498.98 € tax incl.
      409.00 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      EK2 LAT J609b c 25.4

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KW)
      7
      Single-phase power (KVA)
      7
      Efficiency (%)
      80
      Protection degree
      IP23
      Dry weight (Kg)
      30.5
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      Capacitor

      Specific References

      New

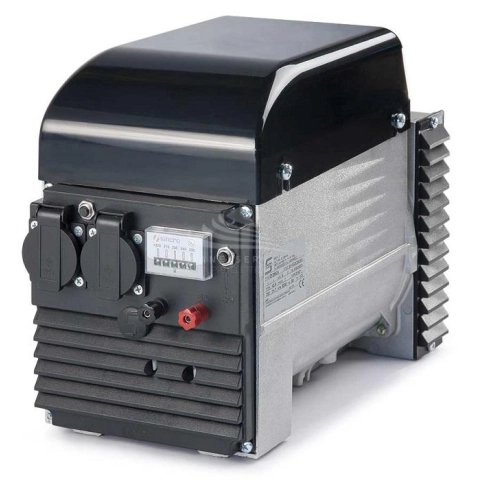

      SINCRO EK2 LAT ALTERNATOR 8,8KVA SINGLE-PHASE

      Alternator SINCRO EK2 LAT Singlephase with a power of 8,8KVA, this unit has a Brushless operation equipped with capacitor voltage regulator.

      The alternator is foreseen to work at frequency 50 or 60 HZ, the possibility to work on these two frequencies makes possible its application for any service voltage increasing its versatility, for a correct operation.

      All the components that make up the SINCRO EK2 LAT alternator are subjected to a specific coating and/or impregnation process aimed at safeguarding the generator's functionality and protecting the critical peers in the various conditions of use.

      For extreme weather conditions, models are available that also guarantee IP23 standard protection against water up to 60° from vertical. SINCRO EK2 LAT is a brushless alternator, this feature together with the high efficiency of the regulator ensure a low level of interference with radio waves.

      SINCRO alternators are all equipped with a voltage regulator, in the case of the EK2 LAT model with a capacitor. The voltage regulator is an electronic device that automatically regulates the voltage and, if necessary, the frequency and/or the electrical current according to set values. These values can be modified or bound to the technical characteristics of the regulator itself.

      The voltage regulator, applied to synchronous current generators, has the objective of maintaining constant operation of the machine, in its regime of greatest efficiency. Generally, this means maintaining the power factor at values close to 1, but if the synchronous machine is also used to phase other users present in the same settlement, these values may vary.

      Select the alternator that reflects the technical specifications you require, visit our dedicated section to understand how.

      TECHNICAL FEATURES SINCRO EK2 LAT

      Phase Type: Single Phase
      Maximum singlephase output: 6.4 KW
      SinglePhase Continuous Output: 5.6 KW
      Maximum singlephase output: 8.8 KVA
      SinglePhase Continuous Output: 7.0 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Degree of protection: IP23
      Alternator speed: 3000 rpm
      Number of poles: 2
      Weight: 30.5 Kg
      Without brushes
      Voltage regulator: Condenser
      Alternator type: Constant speed

      Looking for a product with different characteristics? Here you can find the full range SINCRO and other specialized brands.

      Images and technical data not binding and subject to change by the manufacturer

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
