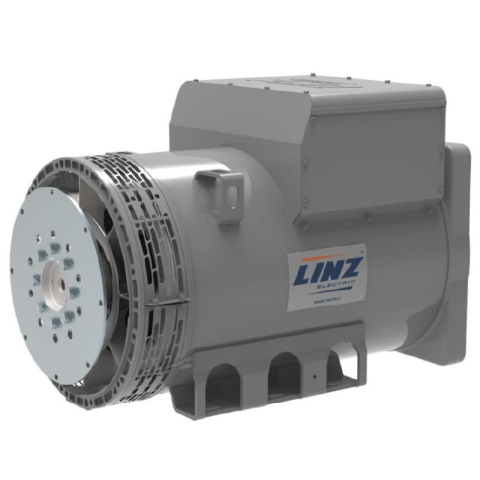

LINZ PRO22M G/4 Three-phase alternator 4 poles 192 kVA 60 Hz AVR
      LINZ PRO22M G/4 Three-phase alternator 4 poles 192 kVA 60 Hz AVR
      LINZ PRO22M G/4 Three-phase alternator 4 poles 192 kVA 60 Hz AVR

      LINZ PRO22M G/4 Three-phase alternator 4 poles 192 kVA 60 Hz AVR

      PRO22M G/4 60 Hz SAE3 d11.5

      Rated power at 60 Hz (kVA): 192
      Rated power factor: 0.8
      Rated temperature (°C): 40
      Control system: self-excited
      Design: brushless
      Type of regulation: AVR
      Insulation class: H
      Protection: IP23
      Maximum excess travel speed (rpm): 2250
      110% overload of rated power for one hour in a 6-hour cycle
      Suppression standard R.F.F.I. EN55011
      6 wires winding

      List price
      8,261.84 € tax incl.
      6,772.00 € tax excl.
      Discounted Price
      4,942.51 € tax incl.
      4,051.24 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      LINZ ELECTRIC
      PRO22M G/4 60 Hz SAE3 d11.5

      Data sheet

      Phase
      Three phase
      Continuous power three phase (KVA)
      192
      Frequency (Hz)
      60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      1800
      Alternator
      Synchronous
      Poles
      4
      Three-phase power (KVA)
      160
      Protection degree
      IP23
      Motor insulation class
      H
      Length (mm)
      760
      Width (mm)
      450
      Height (mm)
      566
      Brushes
      No
      PMG
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      499

      Specific References

      New

      The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

      CHARACTERISTICS

      • Compact and mechanically resistant
      • Excellent wave form
      • Minimum maintenance
      • High efficiency
      • Type: Three-phase alternators
      • Poles: 4
      • Phases: Three-phase
      • Regulation: AVR
      • Application: INDUSTRIAL, COGENERATION

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
