LINZ SLT18 MC Three-phase alternator 4 poles 18 kVA 60 Hz AVR

LINZ SLT18 MC Three-phase alternator 4 poles 15 kVA 50 Hz AVR
LINZ SLT18 MC Three-phase alternator 4 poles 15 kVA 50 Hz AVR
LINZ SLT18 MC Three-phase alternator 4 poles 15 kVA 50 Hz AVR
LINZ SLT18 MC Three-phase alternator 4 poles 15 kVA 50 Hz AVR
SLT18 MC 60 Hz SAE3 d6.5

Rated power at 60 Hz (kVA): 18
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011
AVR: HVR11
Sensing: single-phase
Voltage Regulation: ±1%
Sustained Short Circuit: > 250% of rated current


Phase
Three phase
Continuous power three phase (KVA)
18
Frequency (Hz)
60
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
15
Protection degree
IP23
Motor insulation class
H
Length (mm)
370
Width (mm)
362
Height (mm)
439
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
114
Brand

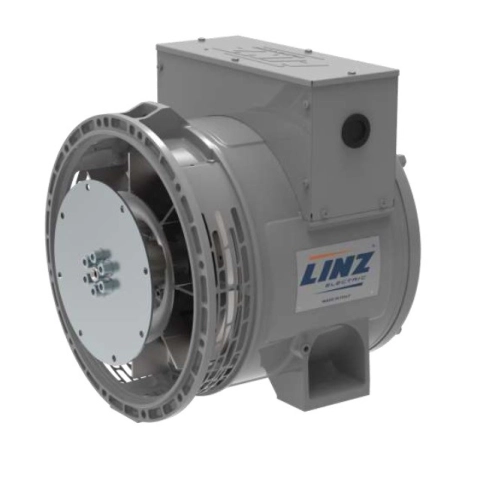

The alternators of SLT18 series are three-phase 4 poles brushless with electronic regulation (AVR) with single-phase sensing.

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, TELECOMMUNICATION

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€1,173.22 €1,173.22
Choose the type of coupling
  • SAE3 disk joint 6.5
  • SAE3 disk joint 7.5
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE4 disk joint 11.5
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE5 disk joint 10
  • SAE5 disk joint 11.5

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
