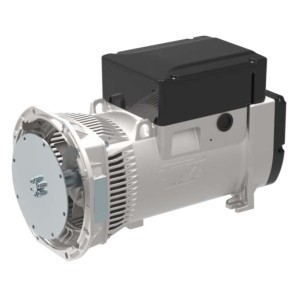

LINZ E1X13M E/4 Three-phase alternator 4 poles 17 kVA 60 Hz AVR

  • New
LINZ E1X13M E/4 Three-phase alternator 4 poles 14 kVA 50 Hz AVR
search
  • LINZ E1X13M E/4 Three-phase alternator 4 poles 14 kVA 50 Hz AVR
  • LINZ E1X13M E/4 Three-phase alternator 4 poles 14 kVA 50 Hz AVR
LINZ ELECTRIC
E1X13M E/4 60 Hz J609b
New product

Rated power at 60 Hz (kVA): 17
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KVA)
17
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
14
Protection degree
IP21
Motor insulation class
H

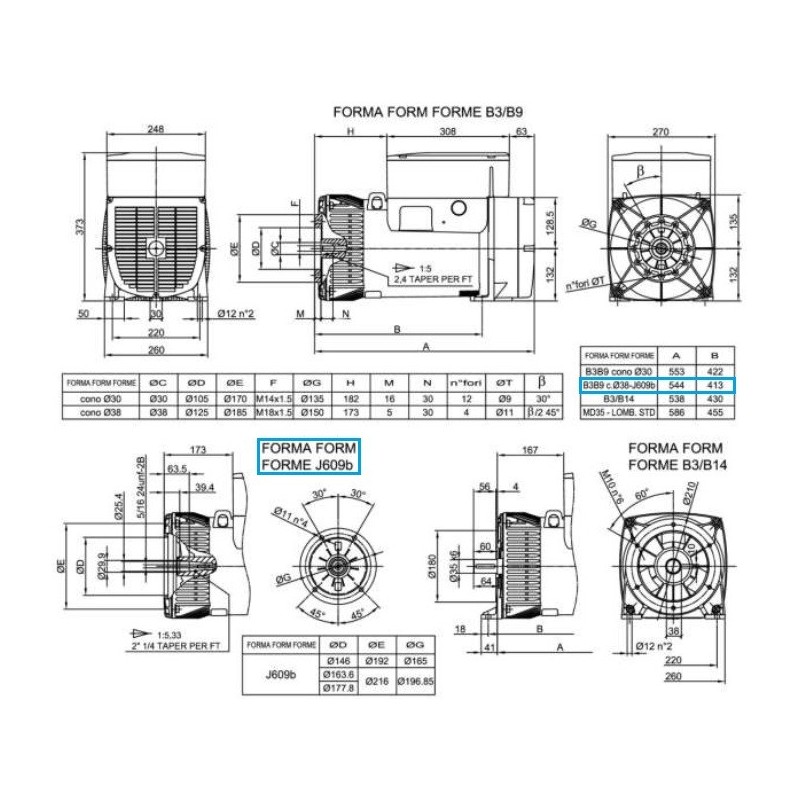

Length (mm)
544
Width (mm)
260
Height (mm)
373
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
92
Details

E1X13/4 series are three-phase brushless alternators 4 poles with exciter and electronic regulation (AVR).

CHARACTERISTICS

  • Compact and mechnically resistant
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: PORTABLE, TELECOMMUNICATION

Related Accessories
List price
2.034,96 € tax incl.
1.668,00 € tax excl.
Discounted Price
1.627,18 € tax incl.
1.333,75 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
