SINCRO SK355 LM SINGLE-THREE PHASE ALTERNATOR 650KVA D-AVR

SINCRO THREE PHASE ALTERNATOR SK355
SINCRO THREE PHASE ALTERNATOR SK355
SINCRO THREE PHASE ALTERNATOR SK355
SINCRO THREE PHASE ALTERNATOR SK355
SK355 LM SAE1 d14

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 650
Constant Speed Alternator
D-AVR
Brushless
Weight (Kg): 1420
Protection: IP23

Download Technical data SK355

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
520
Three-phase power (KVA)
650
Efficiency (%)
94.6
Protection degree
IP23
Dry weight (Kg)
1420
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

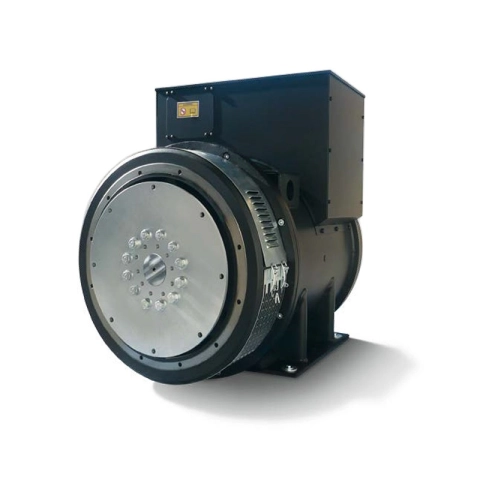

The image is purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€14,080.00 €14,080.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE1 disk joint 14
  • SAE1/2 disk joint 14
  • SAE0 disk joint 14
  • SAE0 disk joint 18

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
