SINCRO SK250 MM SINGLE-THREE PHASE ALTERNATOR 200KVA AVR

SINCRO THREE PHASE ALTERNATOR SK250
SINCRO THREE PHASE ALTERNATOR SK250
SINCRO THREE PHASE ALTERNATOR SK250
SINCRO THREE PHASE ALTERNATOR SK250
SK250 MM SAE3 d11.5

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 200
Constant Speed Alternator
AVR
Brushless
Protection: IP23

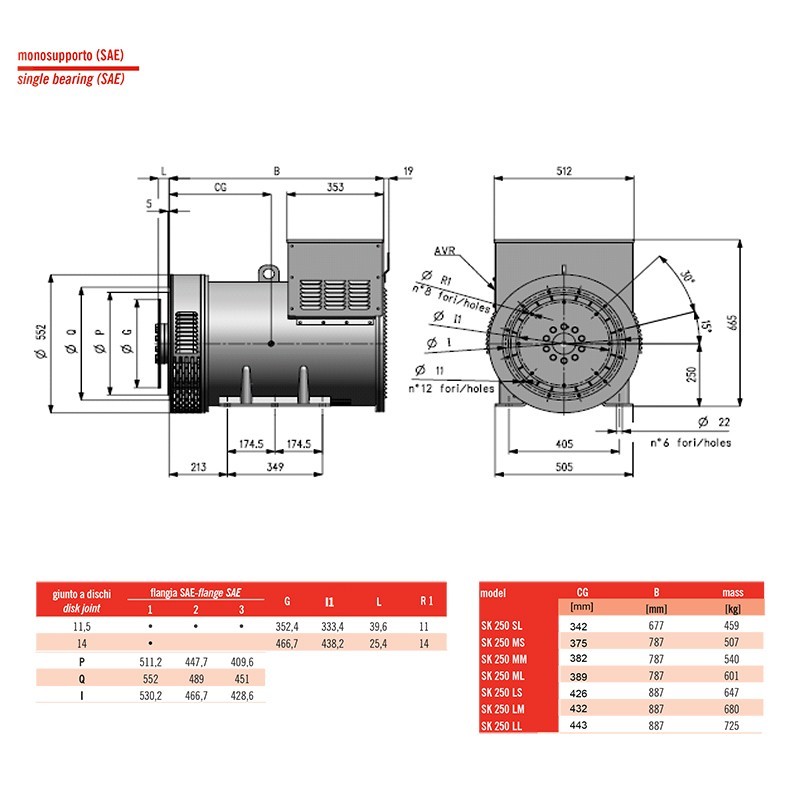

Download Technical data SK250

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
128
Three-phase power (KVA)
160
Efficiency (%)
91.7
Protection degree
IP23
Dry weight (Kg)
459
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Brand

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

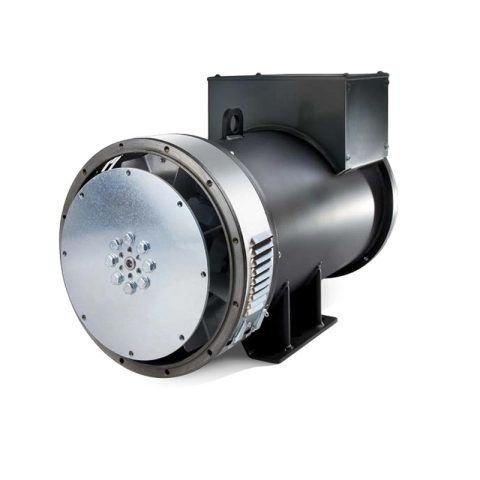

The image is purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€5,300.00 €5,300.00
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE3 disk joint 11.5
  • SAE2 disk joint 11.5
  • SAE1 disk joint 11.5
  • SAE1 disk joint 14

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
