MECC ALTE ECP32-M/2 C-TYPE THREE PHASE ALTERNATOR 66 KVA AVR
      MECC ALTE ECP32-M/2 C-TYPE THREE PHASE ALTERNATOR 66 KVA AVR
      MECC ALTE ECP32-M/2 C-TYPE THREE PHASE ALTERNATOR 66 KVA AVR
      MECC ALTE ECP32-M/2 C-TYPE THREE PHASE ALTERNATOR 66 KVA AVR

      MECC ALTE ECP32-M/2 C-TYPE THREE PHASE ALTERNATOR 66 KVA AVR

      ECP32-M/2 SAE3 d6.5

      Phase Type: Single Phase / Three Phase
      Maximum Single Phase Output:
      (50Hz) 43KVA / 43KW
      (60Hz) 51.5KVA / 51.5KW
      Single phase continuous output:
      (50Hz) 39KVA / 39KW
      (60Hz) 46.8KVA / 46.8KW
      Three phase maximum output:
      (50Hz) 66KVA / 52.8KW
      (60Hz) 79.5KVA / 63.6KW
      Three phase continuous output:
      (50Hz) 60KVA / 48KW
      (60Hz) 72KVA / 57.6KW
      Frequency: 50 / 60Hz
      Voltage: 230 / 400 V
      Degree of Protection: IP23
      Alternator RPM: 3000 rpm
      Number of Poles: 2
      Efficiency: 88.4%

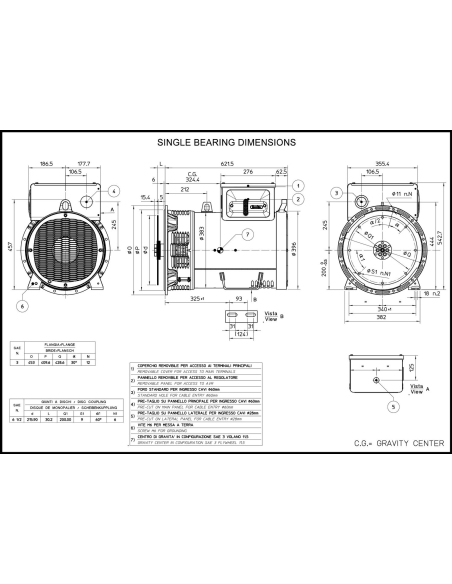

      Width: 553 mm
      Length: 683.5 mm
      Height: 542.7 mm
      Weight: 212 Kg
      Constant speed alternator
      Brushless
      Voltage regulator: AVR

      List price
      5,199.64 € tax incl.
      4,262.00 € tax excl.
      Discounted Price
      4,003.72 € tax incl.
      3,281.74 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MECC ALTE
      ECP32-M/2 SAE3 d6.5

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      43 (50Hz) - 51.5 (60Hz)
      Continuous power single phase (KW)
      39 (50Hz) - 46.8 (60Hz)
      Maximum power single phase (KVA)
      43 (50Hz) - 51.5 (60Hz)
      Continuous power single phase (KVA)
      39 (50Hz) - 46.8 (60Hz)
      Maximum power three phase (KW)
      52.8 (50Hz) - 63.6 (60Hz)
      Continuous power three phase (KW)
      48 (50Hz) - 57.6 (60Hz)
      Maximum power three phase (KVA)
      66 (50Hz) - 79.5 (60Hz)
      Continuous power three phase (KVA)
      60 (50Hz) - 72 (60Hz)
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KVA)
      51.5
      Three-phase power (KVA)
      79.5
      Efficiency (%)
      88.4
      Protection degree
      IP23
      Acoustic pressure
      77 dB(A) at 7 m
      Length (mm)
      553
      Width (mm)
      683.5
      Height (mm)
      542.7
      Dry weight (Kg)
      212
      Brushes
      No
      PMG
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR
      Weight (Kg)
      225

      Specific References

      New

      MECC ALTE ECP32-M/2 C-TYPE THREEPHASE ALTERNATOR 66 KVA DSR

      Alternator MECC ALTE ECP32-M/2 C-TYPE threephase with a power of 66KVA, this unit has a Brushless self-exciting and self-regulating operation equipped with DSR voltage regulator.

      The ECP32-M/2 alternator is complete with self-regulation which is achieved through a digital electronic regulator powered by an auxiliary winding.

      The MECC ALTE ECP32-M/2 alternator is ruggedly suited to meet industry requirements and the most demanding technological specifications needed in various applications. They are available as a bearing in single or dual bearing configurations.

      The ECP32-M/2 alternator consists of a fixed stator with inclined slots and a rotating inductor. In addition, models above 15 KVA are equipped with a damping cage as standard.

      The Standard level of protection refers to a generator that has the only impregnation resin applied to all active parts. Note that this level is standard on the Mecc Alte ECP32-M/2 series of generators: the voltages from turn to turn in this series are never dangerous for the duration of the insulation, so it is not necessary to apply any additional protection paint.

      The ECP32-M/2 alternators comply with the Italian CEI 2-3 file 11111. This corresponds to the European EN 60034-1 and the international IEC 60034-1, is linked to the British BS 4999 Part 101, is equivalent to the German stanard VDE 0530 Part 1 and is included in the French NF 51.111.

      TECHNICAL CHARACTERISTICS MECC HIGH ALTERNATOR ECP32-M/2 C-TYPE

      Phase Type: SinglePhase / ThreePhase
      Maximum SinglPhase Output:
      (50Hz) 43KVA / 43KW
      (60Hz) 51.5KVA / 51.5KW
      Singlephase continuous output:
      (50Hz) 39KVA / 39KW
      (60Hz) 46.8KVA / 46.8KW
      Threephase maximum output:
      (50Hz) 66KVA / 52.8KW
      (60Hz) 79.5KVA / 63.6KW
      Threephase continuous output:
      (50Hz) 60KVA / 48KW
      (60Hz) 72KVA / 57.6KW
      Frequency: 50 / 60Hz
      Voltage: 230 / 400 V
      Degree of Protection: IP23
      Alternator RPM: 3000 rpm
      Number of Poles: 2
      Efficiency: 88.4%
      Width: 553 mm
      Length: 683.5 mm
      Height: 542.7 mm
      Weight: 212 Kg
      Constant speed alternator
      Brushless
      Voltage regulator: AVR

      Looking for a product with different features? Here you can find the full range MECC ALTE and other specialized brands.

      Images and technical data are not binding and subject to changes by the manufacturer

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
