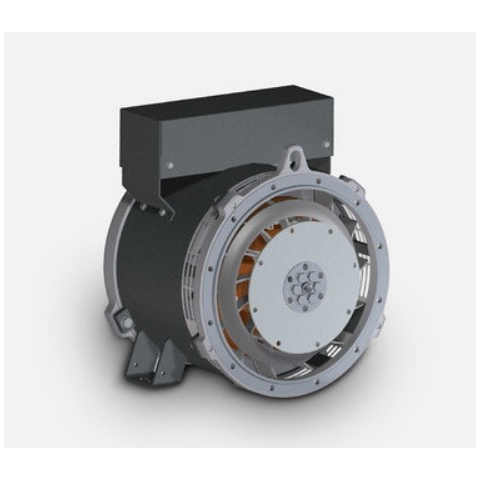

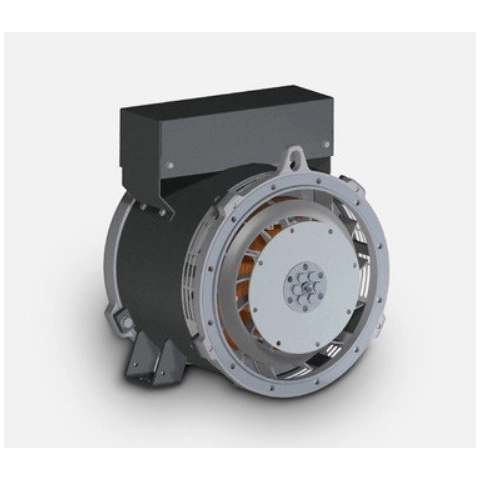

MECC ALTE NPE 31-B2 SINGLE PHASE DEDICATED WINDING ALTERNATOR 8 KVA AVR

  • New
MECC ALTE NPE 31-B2 SINGLE PHASE DEDICATED WINDING ALTERNATOR 8 KVA AVR
search
  • MECC ALTE NPE 31-B2 SINGLE PHASE DEDICATED WINDING ALTERNATOR 8 KVA AVR
  • MECC ALTE NPE 31-B2 SINGLE PHASE DEDICATED WINDING ALTERNATOR 8 KVA AVR
MECC ALTE
NPE 31-B/2 M SAE3 d6.5
New product

Phase: Single phase
Maximum single phase power: 8 KVA
Frequency: 50 Hz
Voltage: 115/230 V
Protection: IP21
Rpm speed: 3000 rpm
Poles: 2
Efficiency: 78.5%
Weight: 83 Kg
Constant speed alternator
Brushless
Voltage regulator: AVR

Technical features
Phase
Single phase
Maximum power single phase (KVA)
8
Frequency (Hz)
50
Voltage (V)
115 / 230
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KVA)
8
Efficiency (%)
78.5
Protection degree
IP21
Acoustic pressure
75 dB(A) at 7 m
Brushes
No
PMG
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
81
Precision of voltage regulation
± 1%
Details

NPE31 2 pole generator

MECC ALTE NPE 31-B/2 SINGLE PHASE DEDICATED WINDING ALTERNATOR 8 KVA AVR

The NPE31 range has many product features designed into the alternator.
Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.
We guarantee an almost constant supply from the generator – under any possible operating condition.
A rotating inductor is fitted with a damper cage.
The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
The entire series is manufactured according to, and complies with, the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.



Not binding images and technical data.
