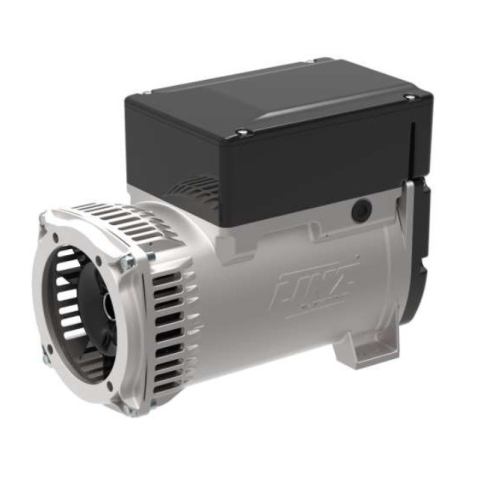

LINZ E1S10M I KE Three-phase alternator 277V/480V 8.5 kVA 60 Hz AVR + Compound
E1S10M I KE 60 Hz J609a
Rated power at 60 Hz (kVA): 8.5
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushes
Type of regulation: AVR + compound
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.5 at 60 Hz
Suppression standard R.F.F.I. EN55011

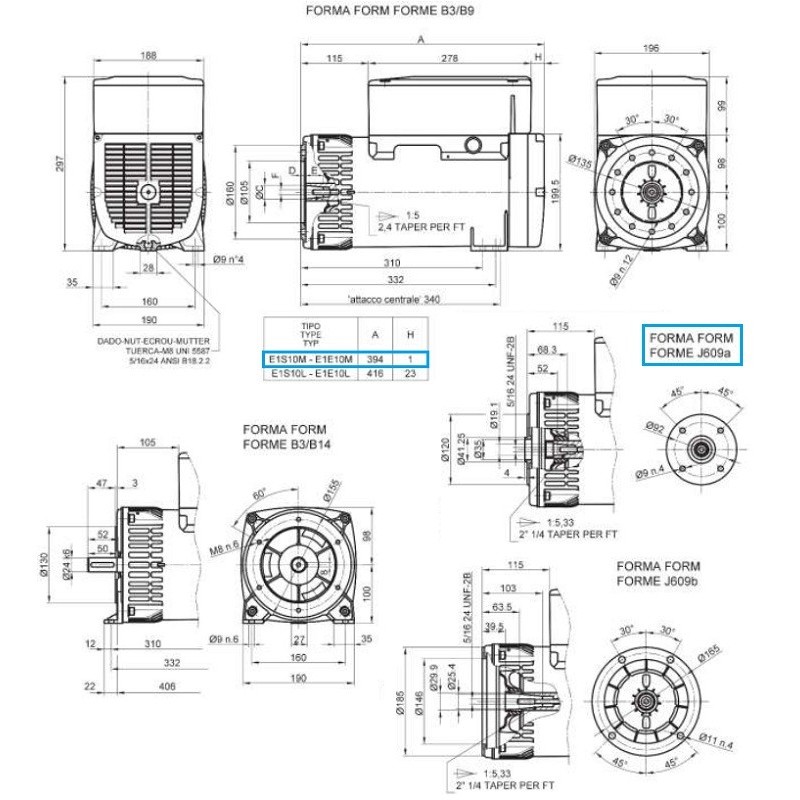

E1S10M I KE 60 Hz J609a
Data sheet
- Phase
- Three phase
- Continuous power three phase (KW)
- 6.8
- Continuous power three phase (KVA)
- 8.5
- Frequency (Hz)
- 60
- Voltage (V)
- 277 / 480
- Engine rpm (rpm)
- 3600
- Alternator
- Synchronous
- Poles
- 2
- Single-phase power (KVA)
- 8.5
- Protection degree
- IP21
- Motor insulation class
- H
- Length (mm)
- 294
- Width (mm)
- 195
- Height (mm)
- 295
- Brushes
- Yes
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR+Compound
- Weight (Kg)
- 37
Specific References
New
E1S-KE series are three-phase 2 poles alternators with brushes and mixed regulation: compound and electronic (AVR).
CHARACTERISTICS
- Possibility to feed any type of load
- Compact and easy to assemble
- High starting capacity
- High efficiency
- Type: Three-phase alternators
- Poles: 2
- Phases: Three-phase
- Regulation: COMPOUND AND AVR
- Application: PORTABLE
