CHILLER CLIMMA DC35 35000 BTU

MDC00351JNNNN
      CHILLER CLIMMA DC35 35000 BTU
      CHILLER CLIMMA DC35 35000 BTU
      CHILLER CLIMMA DC35 35000 BTU
      CHILLER CLIMMA DC35 35000 BTU

      Power Supply: 230V - 50-60 Hz
      Capacity (Cool Mode): 2.5 - 10 kW (8k - 35k Btu)
      Capacity (Heat Mode): 2.5 - 10 kW (8k - 35k Btu)
      Power Consuption (A) - Cool Mode: 0 A - 9.5 A
      Power Consumption (kW) - Cool Mode: 0 kW - 2.2 kW
      Refrigerant and Charge: R410a
      Fresh Water Flow (m3/h): 1.8
      Sea Water Flow (m3/h): 1.8
      Sea Water Temp. (Heat Mode): > 5 °C
      Sea Water Temp. (Cool Mode): < 38 °C

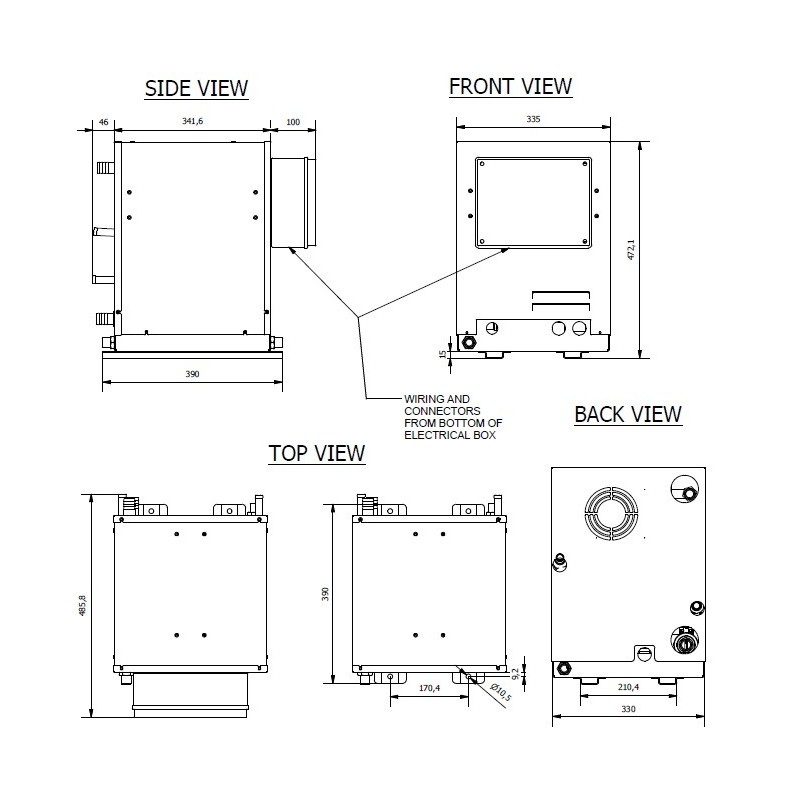

      Size (LxDxH in mm): 335 x 342 x 472
      electricl Box (LxDxH in mm): 240 x 190 x 90
      Weight: 48 Kg.


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      MDC00351JNNNN

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230
      Cooling
      Water
      Maximum flow (m³/h)
      1.8
      Inlet diameter thread type (mm/inches)
      16 mm Fresh Water / 25mm Sea Water
      Outlet diameter thread type (mm/inches)
      16 mm Fresh Water / 25mm Sea Water
      Maximum permissible current (A)
      13 A
      Refrigerating yield
      35000 BTU / 10 KW
      Heating power
      35000 BTU / 10 KW
      Length (mm)
      335
      Width (mm)
      342
      Height (mm)
      472
      Dry weight (Kg)
      48
      Type of climate control
      Chiller
      Power consumption (W)
      2200
      Voltage regulator
      Inverter
      Coolant
      R410A

      Specific References

      New

      CHILLER CLIMMA DC35 35000 BTU
      CWS INVERTER DC 35 RC 230/1/50-60

      The new Climma DC35 chiller is the latest new entry in the Climma DC serie of variable speed chillers; running from 5,000 up to 35,000 Btu. The smallest size on the market thanks to the unique water cooled inverter.
      • Variable Output
      Climma’s new DC chiller is programmed to run at the optimum speed; depending on the heat load requirements, the compressor frequency varies controlling the output capacity from 5,000 to 35,000 Btu.
      • Unique Water Cooled Inverter
      Unique in the marine industry, Climma’s water cooled inverter protects the compressor from excessive temperature and irregular voltage supply, allowing it to be installed in the engine room without additional ventilation.
      • Climma Intelligent Control
      Heating and cooling capacity is managed by the Climma Intelligent Control unit (CIC) which uses specially congured
      algorithms to ensure maximum eciency.
      • ECO mode
      Climma DC chillers provide further eciency gain through a special ECO mode. ECO mode enables the chiller to work when only a courtesy/night generator is working or even while on the dock with a limited shore power supply.
      • No Start Load
      Climma DC chiller requires no additional amps to start the compressor.
      • Modularity
      Each Climma DC chiller can be installed independently, or with a modular conguration up to 4 units, for system up to 140,000 Btu, achieving variable output with full redundancy.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
