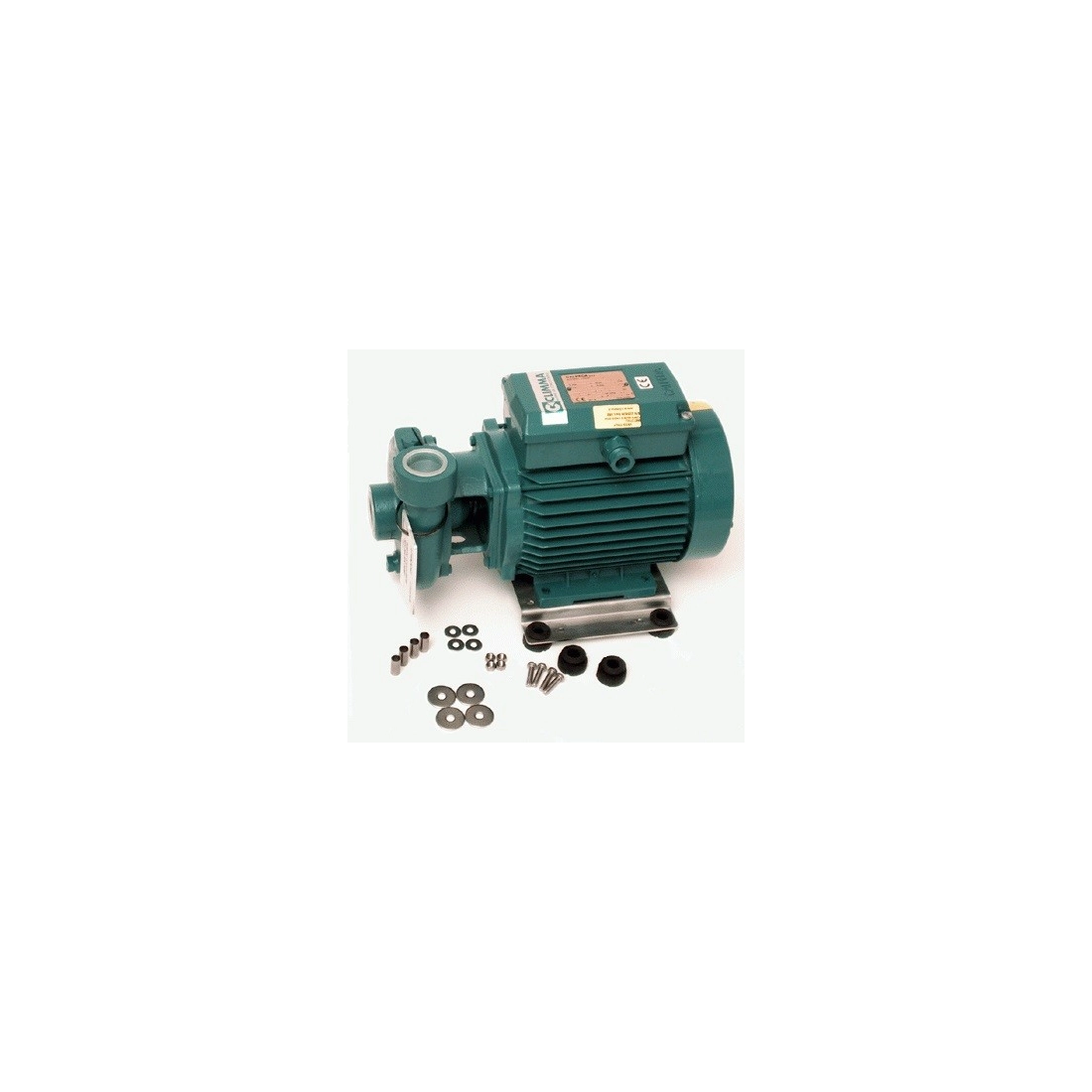

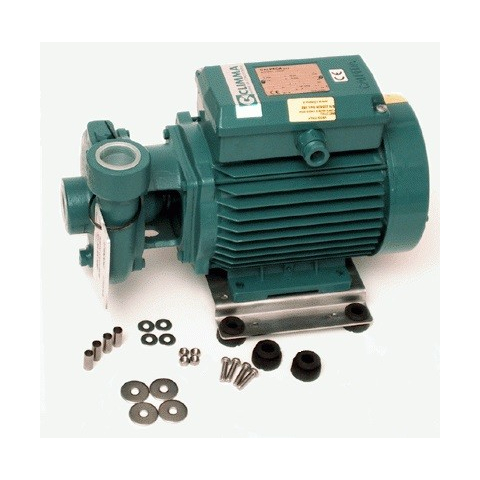

CLIMMA SEA PUMP B-CM20/A FOR CHILLER

Reference M67270U

Phase Type: Single-phase
Frequency: 50 Hz
Voltage: 230V
Nominal capacity Btu/h 72.000
Consumption 370W
Pump Type: Centrifugal Pump
Type of material Treated: Dirty water
Suction / delivery connections 1' F BSP
Flow rate L/m' - 60 GPM - 15
Head mt. 11 - ft 33
Weight Kg 9.5 - Lb 20.9

Product Details
Description

Phase: Single phase
Frequency (Hz): 50
Voltage (V): 230
Protection degree: IP54
Pump type: Centrifugal Pump
Fluid type: Dirty water
Maximum output capacity (Lt/min): 60
Input power (W): 370
Inlet diameter thread type (mm/inches): 25 mm - 1"
Outlet diameter thread type (mm/inches): 25 mm - 1"
Total head (m): 11
Dry weight (Kg): 9.5

CLIMMA SEA PUMP B-CM20/A FOR CHILLER

Centrifugal pump with great sturdiness and reliability. Pump body and impeller in bronze, 316 stainless steel shaft. Motor with special insulation. IP54. Suitable for pumping even moderately dirty water.

Nominal capacity Btu/h 72.000
Consumption 370W
Suction / delivery connections 1' F BSP
Flow rate L/m' - 60 GPM - 15
Head mt. 11 - ft 33
Weight Kg 9.5 - Lb 20.9

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
