TANKS / RESERVOIRS / JERRYCANS

DISCONTINUED PRODUCT Capacity: 330 Lt Flow rate 8.3 Lt/min Maximum pressure: 4.8 bar Length: 1200 mm Width: 800 mm Height: 650 mm Empty weight: 44 Kg

DISCONTINUED PRODUCT Capacity: 440 Lt Flow rate 8.3 Lt/min Maximum pressure: 4.8 bar Length: 1200 mm Width: 800 mm Height: 785 mm Empty weight: 52 Kg

Capacity: 3000 Liters Tank diameter: 1270 mm Tank length: 2450 mm Basin length: 2900 mm Basin width: 1400 mm Basin height: 910 mm Homologation: D.M. 22 November 2017 Category: C Tank Material: Carbon steel sheet S235JR Sheet thickness: 30/10 mm Manhole tank DN 400 NBR gasket for hydrocarbons M.I. approved 3" load. 90% load...

DISCONTINUED PRODUCT Capacity: 980 Lt Flow rate 8.3 Lt/min Maximum pressure: 4.8 bar Length: 995 mm Width: 1830 mm Height: 1000 mm Empty weight: 95 Kg

Type of product. Tank for fuels and flammable materials Axis: Horizontal Capacity: 3000 Litres Diameter: 1270 mm Length: 2900 mm width: 1400 mm Height: 910 mm With containment basin 110%

Type of product. Tank for fuels and flammable materials Axis: Horizontal from Interro Capacity: 1000 Litres Diameter: 1000 mm Length: 1454 mm Height: 1200 mm Manhole: DN 520 mm Anti-spill sump: 1000x1000x200 mm

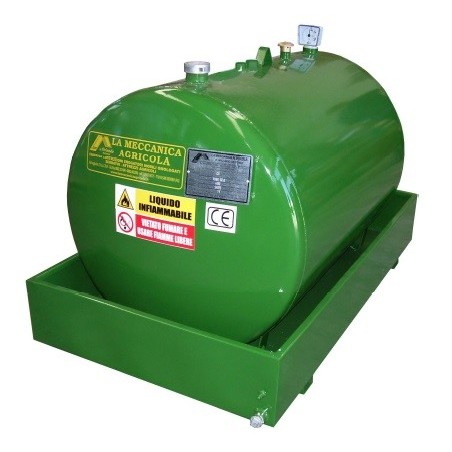

Product Type: Tank for fuel and flammable materials Axis: Horizontal Capacity: 2100 Liters Diameter: 2100 mm Length: 2100 mm Width: 1400 mm Height: 890 mm With 110% containment basin

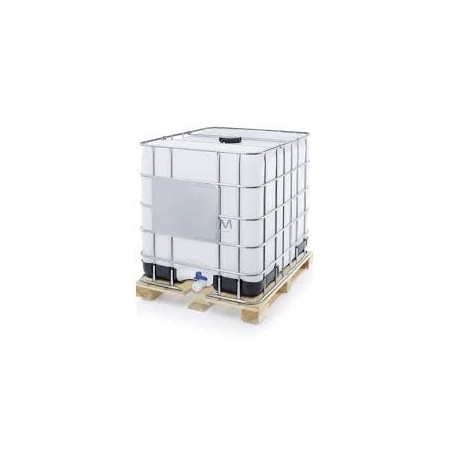

Cistern for the containment of non-food industrial liquids BOTTLE: RAW MAERIAL HDPE WEIGHT 14,5 Kg VOLUME BRIMFUL 1054 l COLOUR NATURAL TOP LID RAW MATERIAL HDPE SEAL EPDM/VITON DIAMETER 150 mm WEIGHT 0,16 kg BUTTERFLY VALVE RAW MATERIAL HDPE GASKET ETFE SEAL AL-PE DIAMETER 2’’ WEIGHT 0,25 kg ...

Cistern for the containment of non-food industrial liquids BOTTLE: RAW MAERIAL HDPE WEIGHT 15,5 Kg VOLUME BRIMFUL 1054 l COLOUR NATURAL TOP LID RAW MATERIAL HDPE SEAL EPDM/VITON DIAMETER 150 mm WEIGHT 0,16 kg BUTTERFLY VALVE RAW MATERIAL HDPE GASKET ETFE SEAL AL-PE DIAMETER 2’’ WEIGHT 0,25...

Cistern for the containment of non-food industrial liquids BOTTLE: RAW MAERIAL HDPE WEIGHT 15,5 Kg VOLUME BRIMFUL 1054 l COLOUR NATURAL TOP LID RAW MATERIAL HDPE SEAL EPDM/VITON DIAMETER 150 mm WEIGHT 0,16 kg BUTTERFLY VALVE RAW MATERIAL HDPE GASKET ETFE SEAL AL-PE DIAMETER 2’’ WEIGHT 0,25 kg ...

Product Type: Fuel tank Liquid Type: Diesel Material: Polyethylene Capacity: 330 L. Dimensions: mm 1200x800x650h. Weight empty: 32 Kg. Empty weight with pump unit 12V: 44 Kg.

CHL-5000 FIRST COLLECTION CHL-5000LTCapacity: 5000Lt Diameter: 1820 mm Height: 1875 mm Width: 2080 mm Butterfly valve: 2" Hatchway: 400mm

HORIZONTAL CYLINDRICAL FIRST COLLECTION TANKS FOR OUTDOOR USE Composition: Polyethylene Diameter: 1820 mm Height: 1920 mm Width: 2200 mm Hatchway: 520 mm

FIRST COLLECTION TANKS VERTICAL CYLINDRICAL OUTDOOR TANKS Composition: Polyethylene Diameter: 1800 mm Height: 2230 mm Hatchway: 400 mm Attachments: 1" - 1.5"

Capacity: 2100 Litres Tank diameter: 1270 mm Tank length: 1732 mm Basin length: 890 mm Basin width: 2100 mm Basin height: 1400 mm Homologation: D.M. 22 November 2017 Category: C Tank material: Carbon steel sheet S235JR Sheet metal thickness: 30/10 mm Tank manhole DN 400 NBR gasket for hydrocarbons 3'' load capacity M.I. approved<br...

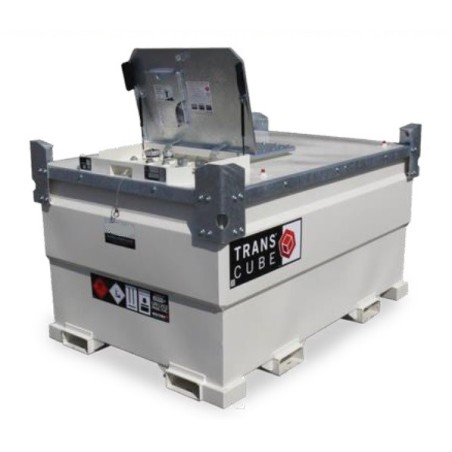

Type of material treated: fuel Tank capacity: 787 US GAL - 2980 Litres - 656 IMP GAL Length: 2296 mm Width: 1546 mm Height: 1323 mm Net Weight: 1021 Liters Weight at full load: 3976 Litres Liquid transfer pump: optional

Capacity: 5000 Liters Tank diameter: 1600 mm Tank length: 2600 mm  Basin length: 2900 mm Basin width: 1400 mm Basin height: 1115 mm Approval: D.M. November 22, 2017 Category: C Tank material: S235JR carbon steel sheet (UNI-EN 10025) Sheet metal thickness: 30/10 mm Tank: manhole DN 400 NBR gasket for hydrocarbons 3'' discharge...

Capacity: 950 Litres Tank diameter: 900 mm Tank height: 1730 mm Tank length: 1500 mm Tank width: 2200 mm Tank height: 335 mm Certification: M.I. Tank material: carbon steel sheet S 235 JR Manhole: Ø 420 mm Load: 3" brass M.I.-approved Level indicator: pneumatic with signal dial Load limiting valve at 90% M.I.-approved 1'' flameproof...

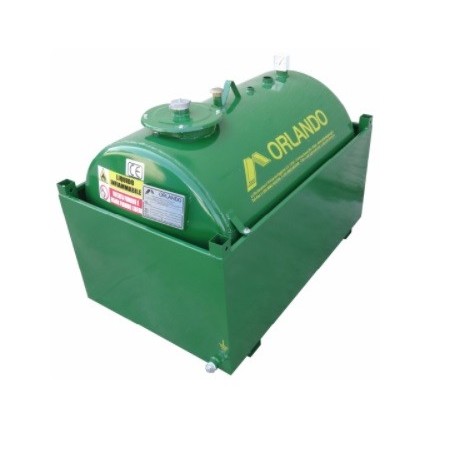

Product type. Tank for fuels and flammable materials Axis: Horizontal Capacity: 1100 Litres Diameter: 1100 mm Length: 1226 mm Width: 1230 mm Height: 715 mm With 110% retention basin

Product type. Tank for fuels and flammable materials Axis: Horizontal Capacity: 1100 Litres Diameter: 1100 mm Length: 1226 mm Width: 1230 mm Height: 715 mm With 110% retention basin

Capacity: 9000 Liters Diameter: 1900 mm Length: 3430 mm Tank thickness: 6mm

Diesel transport tank Effective capacity: 956 l Material: steel Dispensing unit: 12V pump Delivery tube length: 50 lt./min Quick couplings: NO Length: 1130 mm Width: 1530 mm Height: 1330 mm Weight: 404 Kg.

Capacity: 4400 Liters Approval: D.M. November 22, 2017 Category: C for flammable liquid Tank Material: carbon steel sheet S235JR (UNI-EN 10025) Sheet metal thickness: 30/10 mm Tank diameter: 1800 mm Tank length: 1880 mm Basin length: 2100 mm Basin width: 2100 mm Basin height: 1220 mm

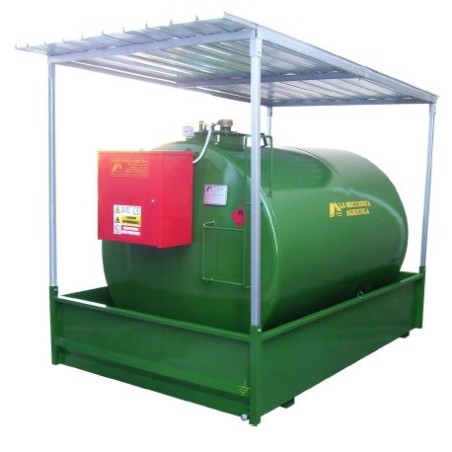

Optionals EXTERIOR CISTERS ITALY with 110% ROOF TANKS Outdoor diesel tanks approved by M.I. according to M.D. 22/11/2017. Complete with loading cap, venting mushroom, 90% load limiting valve and mechanical level indicator. Access ladder for models from 3000lt Dimensions: 4000 x 2200 x 2400h mm

Canopy for fuel tank 9000 tl Dimensions: 4000 x 2200 x 2400h mm

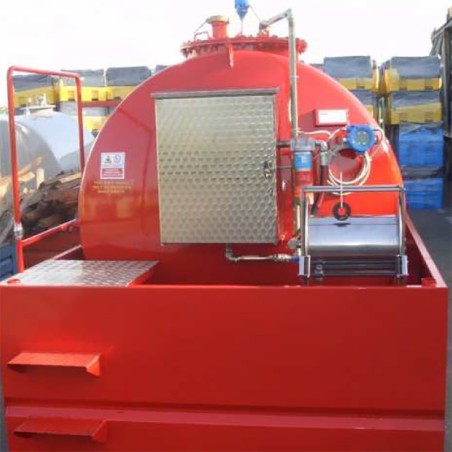

Fuel tank capacity: 4990Lt Inner diameter: 1900 mm Outside diameter: 1930 mm Height: 2490 mm Weight: 850 Kg Thickness: 3 mm inside + 2.5 mm outside 5K cabinet Voltage: 230V Flow rate: 50 l/min Cabinet dimensions: 600x700x320 mm Gun: automatic Nozzle diameter: 24 mm

Product includes: container , safety filling cap , lid , electric pump , 4ml rubber hose , automatic nozzle , documentation. Capacity: 230 litres Dimensions: 800x600x700 mm Weight: 30 kg Empty weight with 12V pump unit: 27 kg

Capacity: 4,900 litres Approval: Ministerial Decree 22 November 2017 Category: C (for flammable liquids) Tank diameter: 1600 mm Tank length: 2530 mm Tank length: 2900 mm Tank width: 1850 mm

Capacity: 330 litres Dimensions: 1295x885x665h mm Thickness: 11 mm Empty weight: 53 kg Empty weight with 12V pump unit: 65kg Fuel: diesel Product includes: Water Absorption Filter (F3) ATEX Digital Flow Meter (C2) Containment Basin For Carry Tank CTK 330

Product includes: container , safety filling cap , lid , electric pump , 4ml rubber hose , automatic nozzle , documentation. Capacità: 440 litri Dimensioni: 800x1200x700 mm Peso: 60 kg Peso a vuoto con Gruppo pompa 12V: 55 Kg

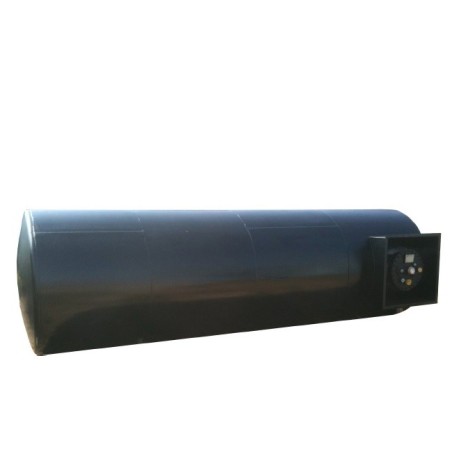

Product includes: Tank and hatch with standard connections, maintenance manual. Capacity: 1000 litres Dimensions: Outer diameter: 980 mm. Length: 1850 mm. Outer thickness: 3 mm Inside thickness: 3 mm Weight: 351 kg

Product includes: Tank and hatch with standard connections, maintenance manual. Capacity: 2000 litres Dimensions: Outer diameter: 1300 mm Length: 1850 mm Thickness: Outside: 3 mm Inside: 3 mm Weight: 495 kg

Product includes: Tank and hatch with standard connections, maintenance manual. Capacity: 3000 litres Dimensions: Outer diameter: 1460 mm. Length: 2250 mm. Outer thickness: 3 mm Inside thickness: 3 mm Weight: 657 kg

Product includes: Tank and hatch with standard connections, maintenance manual. Capacity: 4000 litres Outer diameter: 1460 mm. Length: 2850 mm. Outer thickness: 3 mm Inside thickness: 4 mm Weight: 1020 kg

Product includes: Tank and hatch with standard connections, maintenance manual. Capacity: 5000 litres Outer diameter: 1460 mm. Length: 3450 mm. Outer thickness: 4 mm Inside thickness: 4 mm Weight: 1210 kg

Product includes: Tank and hatch with standard connections, maintenance manual. Capacity: 6000 litres Outer diameter: 1630 mm Length: 3450 mm Outer thickness: 4 mm Inside thickness: 4 mm Weight: 1320 kg

Product includes: Tank and hatch with standard connections, maintenance manual. Capacity: 7000 litres Outer diameter: 1730 mm Length: 3450 mm Outer thickness: 4 mm Inside thickness: 5 mm Weight: 1573 kg

Product includes: Tank and hatch with standard connections, maintenance manual. Capacity: 8000 litres Outer diameter: 1830 mm Length: 3450 mm Outer thickness: 4 mm Inside thickness: 5 mm Weight: 1710 kg

Product includes: Tank and hatch with standard connections, maintenance manual. Capacity: 9000 litres Outer diameter: 1930 mm Length: 3450 mm Outer thickness: 4 mm Inside thickness: 5 mm Weight: 1916 kg

Product includes: Tank and hatch with standard connections, maintenance manual. Capacity: 10,000 litres Outer diameter: 2030 mm Length: 3450 mm Outer thickness: 4 mm Interior thickness: 5 mm Weight: 1920 kg
