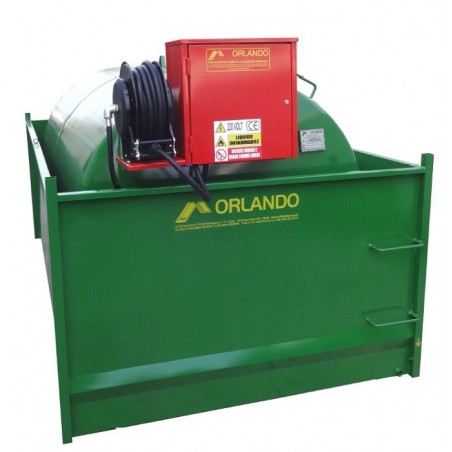

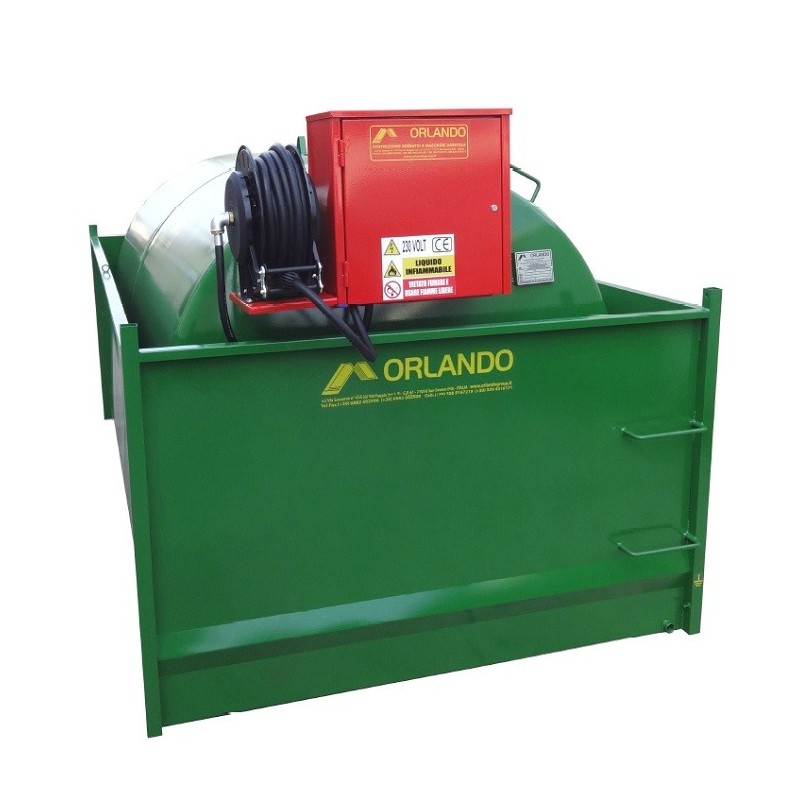

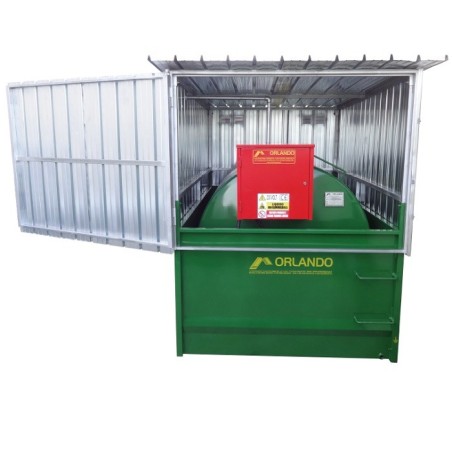

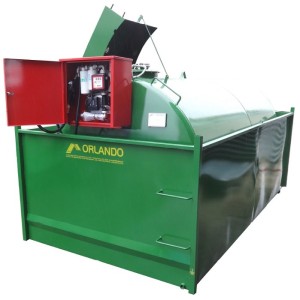

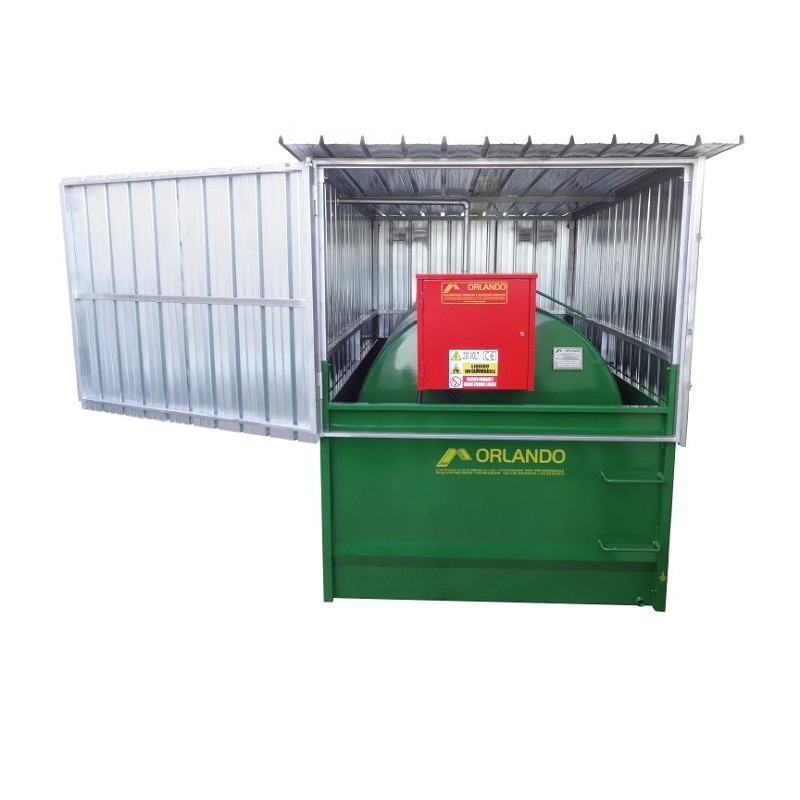

SEO 5 5000 LITRES TANK

Tank SEO 5 mobile with dispenser a nominal capacity of 5000 liters in the standard version for automotive category "C" with Homologation D.M. 22 November 2017.

The tanks of the range SEO from 5000 Liters are approved and certified by the Ministry of Interior in accordance with the D.M. November 22, 2017 and D.M. July 31, 1934, by approval of M.I. N.S. 7482 4113 sott.275 of 30-11-2001 and DCPST/A7/8470/AT/09275 of 20 September 2002 with subsequent extensions and renewals until the current year.

The SEO 5 are 5000 liters tanks approved for the storage and refueling of liquid fuels for automotive category "C", cylindrical horizontal axis carbon steel sheet S235JR (UNI-EN 10025), with a thickness of 30/10 mm, entirely welded in continuous wire and externally treated against corrosion by means of pickling of the sheet metal, zinc chromium primer and finishing with high quality bi-component enamel carried out in a painting booth, with scrupulous reduction of polluting agents in respect of the environment.

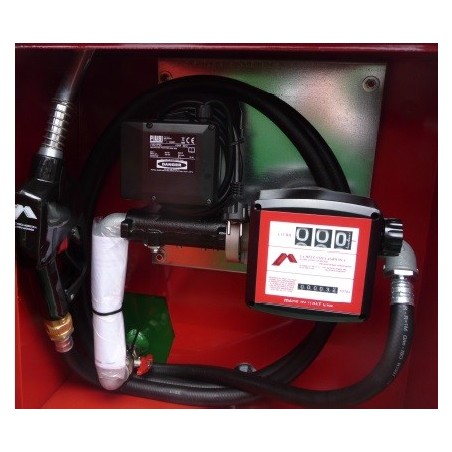

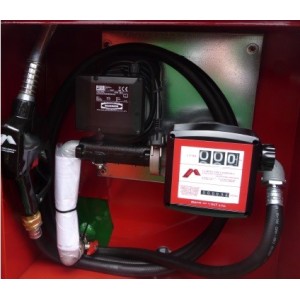

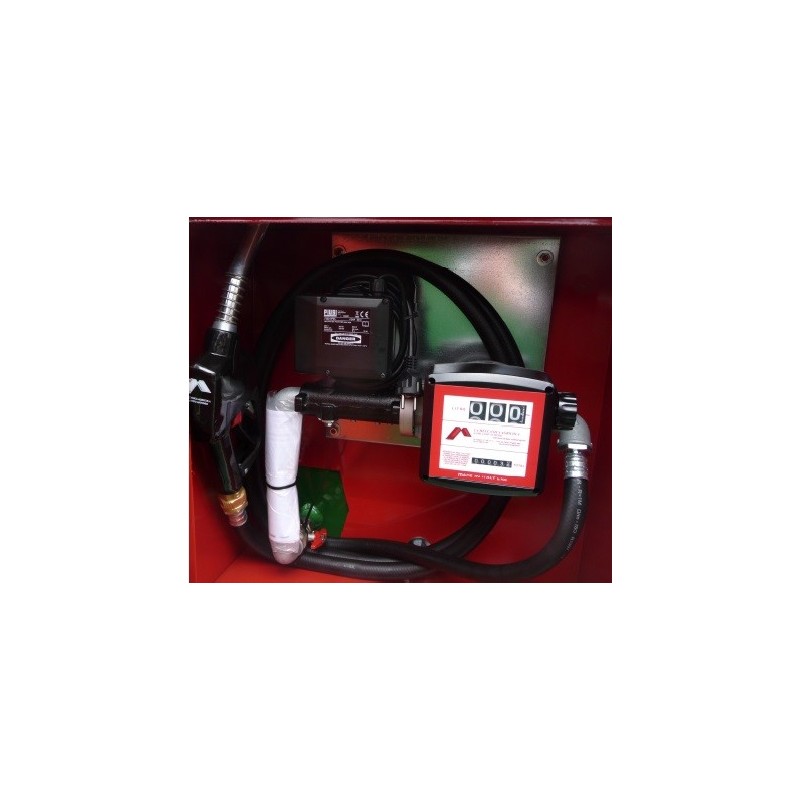

SEO 5 manhole tank DN 400 mm NBR gasket for hydrocarbons, 3" load relief valve homologated M.I., 90 % load relief valve homologated M.I., 1" flame cutter vent homologated M.I, Clock-style level indicators, table of comparisons, 1" check valve internal tank suction, mesh bottom filter, 1" full-passage intercepting valve, 1" full bottom drain and plug, external and internal service ladders, provision for equipotential grounding, tank support and anti-roll feet, vacuum lifting points.

TECHNICAL FEATURES TANK SEO 5

Capacity: 5000 Liters
Tank diameter: 1600 mm
Tank length: 2600 mm
Basin length: 2900 mm
Basin width: 1400 mm
Basin height: 1115 mm
Homologation: D.M. 22 November 2017
Category: C
Tank Material: Carbon steel sheet S235JR (UNI-EN 10025)
Sheet metal thickness: 30/10 mm
Tank: manhole DN 400
NBR gasket for hydrocarbons

Are you looking for a tank with different technical features? Here you can find the whole range of brands specialized in this field.

Images are indicative only.
