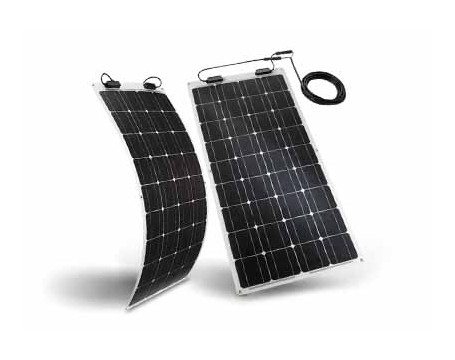

SOLAR PANELS FOR VEHICLES

Rated power (Pmax): 130W Rated voltage Pmax (Vmp): 18.36V Rated current Pmax (Imp): 7.10A Open circuit voltage (Voc): 22.03V Short-circuit current (Isc): 7.80A Maximum system voltage: 1000VDC (IEC) Class of application: Class A Maximum overcurrent: 15 A Operating temperature: 85% Rh -40°C~ +85°C Nominal cell operating temperature (NOCT): 47 ±...

DISCONTINUED PRODUCT Rated power (Pmax): 100W Rated voltage Pmax (Vmp): 18.5V Rated current Pmax (Imp): 5.41A Open circuit voltage (Voc): 22.7V Short-circuit current (Isc): 5.75A Maximum system voltage: 1000VDC (IEC) Class of application: Class A Maximum overcurrent: 10 A Operating temperature: 85% Rh -40°C~ +85°C Nominal...

Nominal power (Pmax): 110 W Nominal Pmax voltage (Vmp): 19.0V Nominal Pmax current (Imp): 5.79A Open circuit voltage (Voc): 23.5V Short circuit current (Isc): 5.97A Maximum system voltage: 600VDC (IEC) Operating temperature: 85% Rh -40°C ~ +85°C Nominal cell operating temperature (NOCT): 46 ± 2°C Temperature coefficient at Pmax (Pmp): -0. 1%/°C<br...
