LIGHTING TOWERS

Torri faro

Maximum height (m)

Between
and

Height closed (mm)

Lenght closed (mm)

Width closed (mm)

Riser

Maximum power single phase (KVA)

Between
and

Maximum power three phase (KVA)

Between
and

Type of Lamps

Transportability

Dry weight (Kg)

Between
and

Manufacturer

Price

3,167.00 € - 16,268.00 €

Stability to wind

Sale and Worldwide Shipping Lighthouse Towers | Man.El.Service

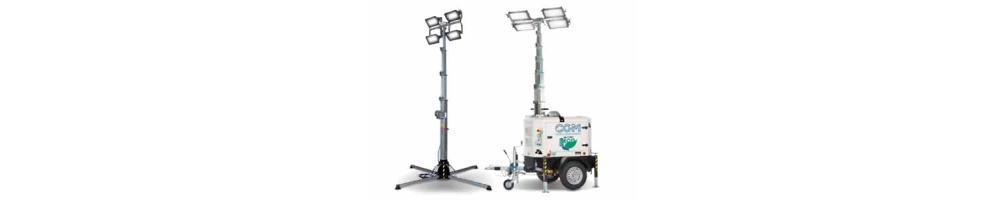

The lighting tower is a lighting system fixed on a vertical pole, which can be raised manually or hydraulically and sometimes powered by a generator. The light towers are designed to provide lighting in any situation, from the night work site to the large outdoor areas where sporting events, concerts and events take place.

WFM TA-L45MH
      Maximum Height (mt.): 5 Lifting System: Manual Illuminated Area: ----- Floodlihts: Halogen Projectors: 2 x 1000 W Transportability: Ruote e maniglie Wind Stability (Km/h): 80 Mast rotation: ----- Stabilizers: Tripod Single Phase Max. Output (kVA): 4.5 Engine: Honda GX270 Voltage: 230 V Lumen (Lm): 44000 Fuel: Petrol
      WFM TA-L45MH
          Maximum Height (mt.): 5 Lifting System: Manual Illuminated Area: ----- Floodlihts: Halogen Projectors: 2 x 1000 W Transportability: Ruote e maniglie Wind Stability (Km/h): 80 Mast rotation: ----- Stabilizers: Tripod Single Phase Max. Output (kVA): 4.5 Engine: Honda GX270 Voltage: 230 V Lumen (Lm): 44000 Fuel: Petrol
          Ask for availability
          WFM TA-B7000-DE
              Maximum Height (mt.): 5 Lifting System: Manual Illuminated Area: ----- Floodlihts: Halogen Projectors: 4 x 1000 W Transportability: Ruote e maniglie Wind Stability (Km/h): 80 Mast rotation: ----- Stabilizers: 2 Single Phase Max. Output (kVA): 6.9 Engine: Lombardini 15LD440 Voltage: 230 V Lumen (Lm): 88000 Fuel: Diesel
              WFM TA-B7000-DE
                  Maximum Height (mt.): 5 Lifting System: Manual Illuminated Area: ----- Floodlihts: Halogen Projectors: 4 x 1000 W Transportability: Ruote e maniglie Wind Stability (Km/h): 80 Mast rotation: ----- Stabilizers: 2 Single Phase Max. Output (kVA): 6.9 Engine: Lombardini 15LD440 Voltage: 230 V Lumen (Lm): 88000 Fuel: Diesel
                  Ask for availability
                  WFM TA-SE10000
                      Maximum Height (mt.): 6 Lifting System: Manual Illuminated Area: ----- Floodlihts: Halogen Projectors: 4 x 1000 W Transportability: Wheels and handles Wind Stability (Km/h): 80 Mast rotation: ------ Stabilizers: 2 Single Phase Max. Output (kVA): 10 Engine: Lombardini 25LD425 Voltage: 230 V Lumen (Lm): 88000 Fuel: Diesel
                      WFM TA-SE10000
                          Maximum Height (mt.): 6 Lifting System: Manual Illuminated Area: ----- Floodlihts: Halogen Projectors: 4 x 1000 W Transportability: Wheels and handles Wind Stability (Km/h): 80 Mast rotation: ------ Stabilizers: 2 Single Phase Max. Output (kVA): 10 Engine: Lombardini 25LD425 Voltage: 230 V Lumen (Lm): 88000 Fuel: Diesel
                          Ask for availability
                          WFM TA-M145
                              Maximum Height (mt.): 8.5 Lifting System: Automatic by compressor Illuminated Area: ----- Floodlihts: Halogen Projectors: 6 x 1500 W Transportability: Slow trailer Wind Stability (Km/h): 80 Mast rotation: ----- Stabilizers: 4 Single Phase Max. Output (kVA): 4.8 Three Phase Max. Output (kVA): 14.5 Engine: Perkins 403D-15G Voltage:...
                              WFM TA-M145
                                  Maximum Height (mt.): 8.5 Lifting System: Automatic by compressor Illuminated Area: ----- Floodlihts: Halogen Projectors: 6 x 1500 W Transportability: Slow trailer Wind Stability (Km/h): 80 Mast rotation: ----- Stabilizers: 4 Single Phase Max. Output (kVA): 4.8 Three Phase Max. Output (kVA): 14.5 Engine: Perkins 403D-15G Voltage:...
                                  Ask for availability
                                      Discounted price
                                      tax incl.
                                      16,267.48 €
                                      13,334.00 € tax excl.
                                      WFM TD8000IM
                                          Maximum Height (mt.): 9 Lifting System: Hidraulic Illuminated Area: ----- Floodlihts: Metal Halide Projectors: 4 x 1000 W Transportability: fast tow trailer Wind Stability (Km/h): Not reported Mast rotation: 360° Stabilizers: 4 Min. Dimensions (mm): 2450 x 1300 x 2300 Max. Dimensions (mm): 2450 x 2800 x 9200 Dry Weight (Kg): 1030<br...
                                          16,267.48 €Price
                                          WFM TD8000IM
                                              Maximum Height (mt.): 9 Lifting System: Hidraulic Illuminated Area: ----- Floodlihts: Metal Halide Projectors: 4 x 1000 W Transportability: fast tow trailer Wind Stability (Km/h): Not reported Mast rotation: 360° Stabilizers: 4 Min. Dimensions (mm): 2450 x 1300 x 2300 Max. Dimensions (mm): 2450 x 2800 x 9200 Dry Weight (Kg): 1030<br...
                                              Discounted price
                                              tax incl.
                                              16,267.48 €
                                              13,334.00 € tax excl.
