UPC

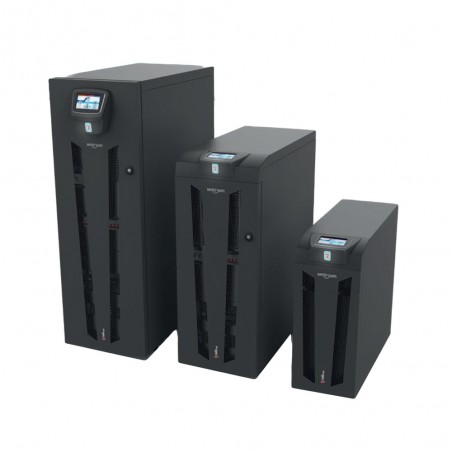

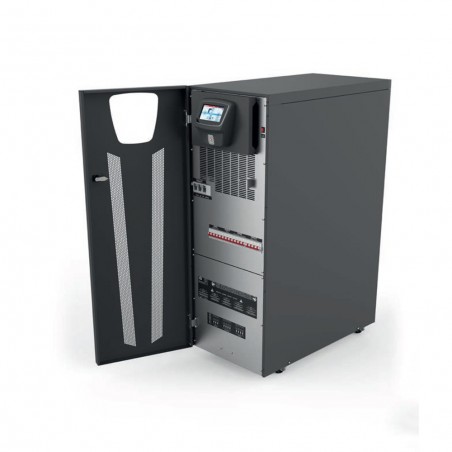

INPUT Rated Voltage (V): 380 / 400 / 415 three-phase + N Rated Frequency: 50 / 60 hZ Current Distortion: THDI ≤3% BYPASS Rated voltage (V): 380 / 400 / 415 three-phase + N Phase type: Three-phase Rated frequency: 50 or 60 Hz (selectable) Bypass overload: 110% infinite, 125% for 60 min, 150% for 10 min. OUTPUT Phase type:...

INPUT Rated Voltage (V): 380 / 400 / 415 three-phase + N Rated Frequency: 50 / 60 hZ Current Distortion: THDI ≤3% BYPASS Rated voltage (V): 380 / 400 / 415 three-phase + N Phase type: Three-phase Rated frequency: 50 or 60 Hz (selectable) Bypass overload: 110% infinite, 125% for 60 min, 150% for 10 min. OUTPUT Phase type:...

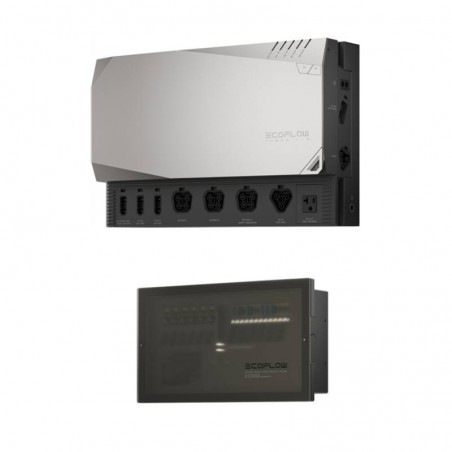

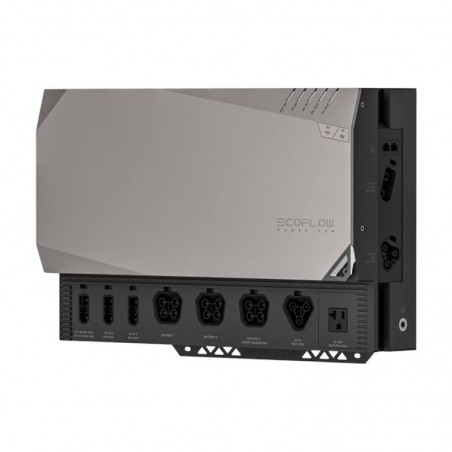

Pure sine wave AC output, 3600W (7200W flux), 120V, 50/60Hz. DC output 13.6V / 70A, 1000W max; 26.4V / 60A, 1600W max; AC input X-Stream fast charging 3000W max, 15A max. AC input voltage 220-240V, 50/60Hz< br />Solar charging inputs 15-150V 30A, 1600W max. Alternator charging inputs 13-60V 60A, 1600W max. Operating temperature -25°C - 60°C Storage...

Pure sine wave AC output, 3600W (7200W flux), 120V, 50/60Hz. DC output 13.6V / 70A, 1000W max; 26.4V / 60A, 1600W max; AC input X-Stream fast charging 3000W max, 15A max. AC input voltage 220-240V, 50/60Hz Solar charging inputs 15-150V 30A, 1600W max. Alternator charging inputs 13-60V 60A, 1600W max. Operating temperature -25°C - 60°C Storage temperature...

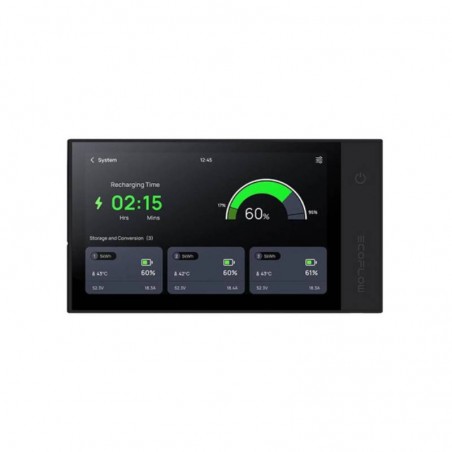

Conveniently control your entire power system from your mobile or small home. Keep an eye on your power consumption, adjust settings, and view power input on the handy screen. Package contents: EcoFlow power kit console x 1, CAN RJ45 bus cable (6 m)

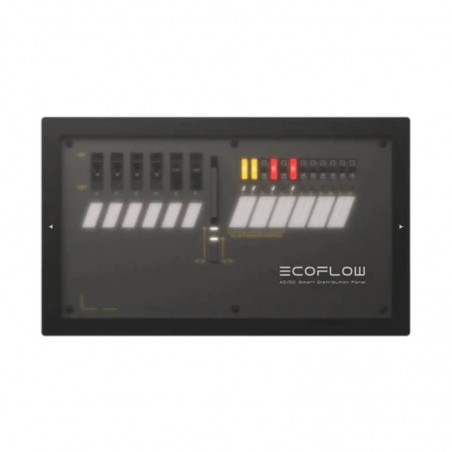

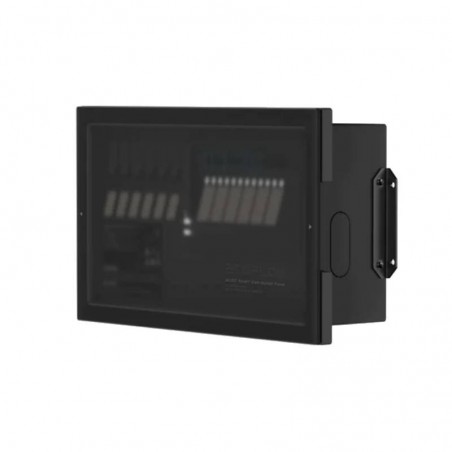

Protection level: IP21 Tests and Certifications: UL Standard, FCC, PSE Operating temperature (C ): -25℃-60℃ Main AC input: 30A max 120V, 3600W Main DC input: 70A max AC output: 6 position AC, 20A max each DC output: 12 position DC fused (6 position controllable via console of the power kit and the Ecoflow Application) Width: 211 mm Length: 353 mm<br...

Rated capacity: 2048Wh (40Ah) Rated voltage: 51.2V Configuration: 16S2P Charge voltage: 57.6V Discharge voltage: 40V Maximum continuous charge current: 32A Maximum continuous discharge current: 80A Battery chemistry: LiFePO4 Cycle life: 3,000 cycles up to 80% capacity IP protection degree: IP54 Width: 348 mm Length: 198 mm Height:...

Rated capacity: 5120 Wh (100 Ah) Rated voltage: 51.2 V Configuration: 16S2P Charging voltage: 57.6 V Discharge voltage: 40 V Maximum continuous charging current: 80A Maximum continuous discharge current: 100A Battery chemistry: LiFePO4 Cycle life: 3500 cycles up to 80% capacity IP degree of protection: IP54 Width: 500mm Length: 260 mm<br...
