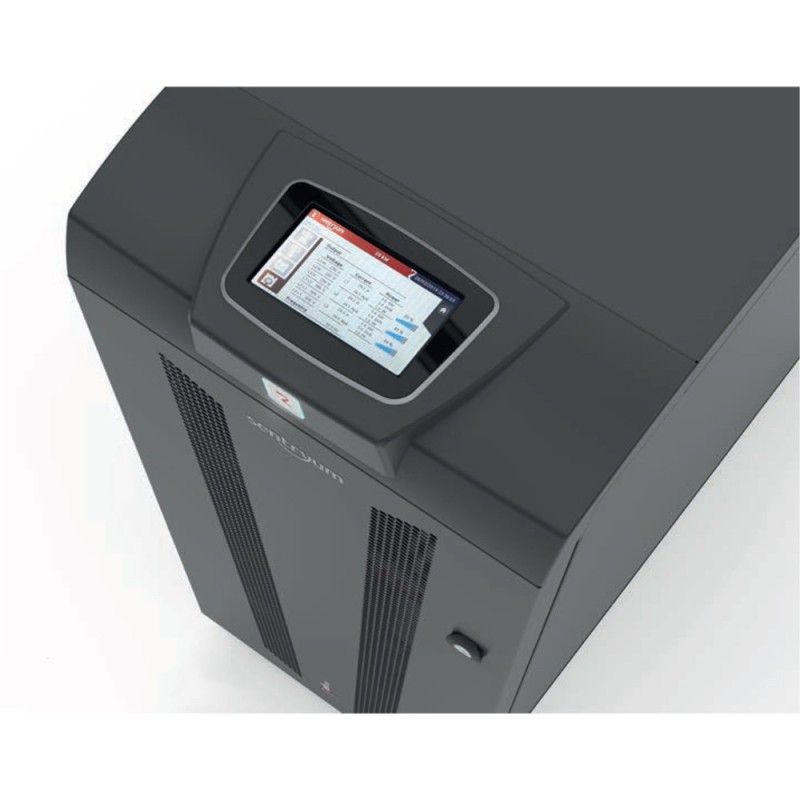

RIELLO SENTRYUM S3T XTD 40 UPS 40 KW THREE PHASE

The UPS RIELLO SENTRYUM S3T XTD 40 three phase is capable of delivering a selectable voltage between 380V / 400V / 415V for a maximum power of 40 KW.

This uninterruptible power supply RIELLO SENTRYUM S3T XTD 40 offers the best combination of energy efficiency and overall performance with the additional guarantee of considerable savings in terms of installation and operating costs.

RIELLO SENTRYUM S3T XTD 40 UPS is designed and manufactured with state-of-the-art technologies and components, implementing advanced technologies such as dual core DSP (Digital Signal Processor) microprocessor, threelevel inverter circuits and resonant control to ensure maximum protection of critical loads with minimal impact on downstream systems and optimized energy savings.

RIELLO SENTRYUM S3T XTD 40 is a true ON-LINE double conversion UPS system that delivers the highest levels of available power and flexibility, combined with unmatched energy efficiency and superior performance for small data centers and mission critical applications.

The Uninterruptible Power Supply UPS RIELLO SENTRYUM S3T XTD 40 provides maximum available power without derating. Thanks to the threelevel IGBT inverter topology (based on modules instead of discrete components) and innovative digital control,

TECHNICAL FEATURES UPS RIELLO SENTRYUM S3T XTD 40

INPUT
Voltage (V): 380 / 400 / 415 three phase + N
Frequency: 50 / 60 hZ
Current distortion: THDI ≤3%

BYPASS
Voltage (V): 380 / 400 / 415 three phase + N
PhaseType: Three phase
Frequency: 50 or 60 Hz (selectable)
Bypass Overload: 110% infinite, 125% for 60 min, 150% for 10 min.

OUTPUT
Phasetype: three phase
Power: 40 KVA
Active power: 40 KW
Factor: 1 up to 40 °C
Rated voltage (V): 3801 / 400 / 415 three phase + N (selectable)
Rated frequency: 50 or 60 Hz (selectable)

BATTERIES
Type: VRLA AGM/GEL/NiCd/Li-Ion/SuperCaps
Charging method: One level, two levels, cyclic charging (selectable)

GENERAL SPECIFICATIONS
Length: 440 mm
Depth: 840 mm
Height: 1320 mm
Weight without batteries: 116 Kg

Are you looking for a UPS with different technical characteristics? Visit our section dedicated to UPS and choose the one that best suits your needs.

Images and technical data are not binding and may be subject to revision by the manufacturer
