Nominal production: 80 lt/h
Dimensions L x D x H: 40 x 46 x 11.5 cm
Maximum inlet water conductivity: 2000 TDS
Min-max inlet water pressure: 1.5 – 3 bar
Operating pressure: 8 – 9 bar
Membranes: TFC
Sediment pre-filter: n°1 x 5 ?m polypropylene 5" cartridge
Activated carbon pre-filter: 2 x in-line 2"
Post-filter: mineralizing 2"
Water inlet connection: 10 mm
Purified water connection: 1/4"
Drain connection: 1/4"
Power supply: 230 V – 50 Hz
Power consumption: 220 W
High pressure switch: Yes
Low pressure switch Pressure: Yes
PVC vessels: 2 x 1812
Osmosis membranes: 2 x 1812
Pressure regulation valve: Yes
Working pressure gauge: Yes
Electronic control unit: Yes

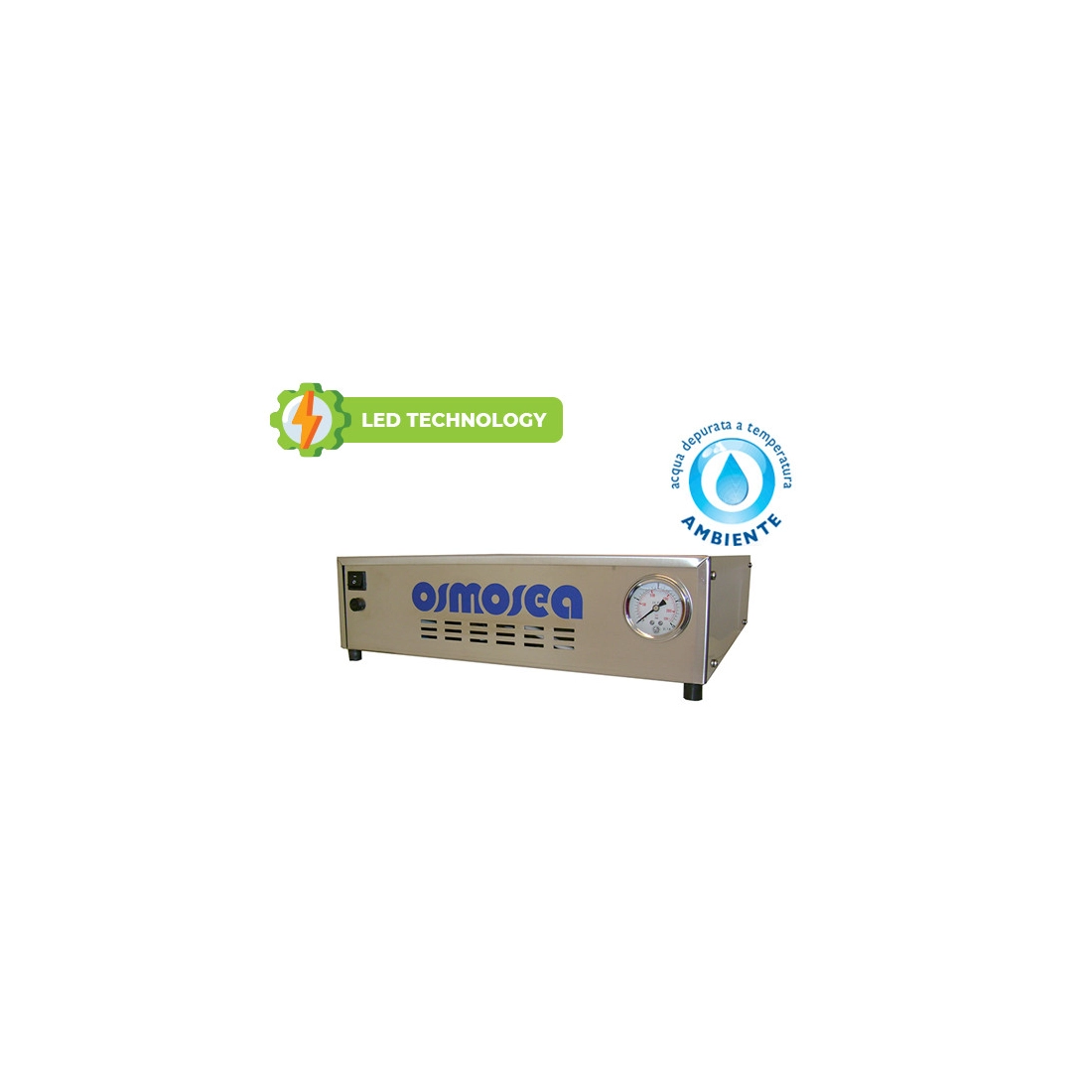

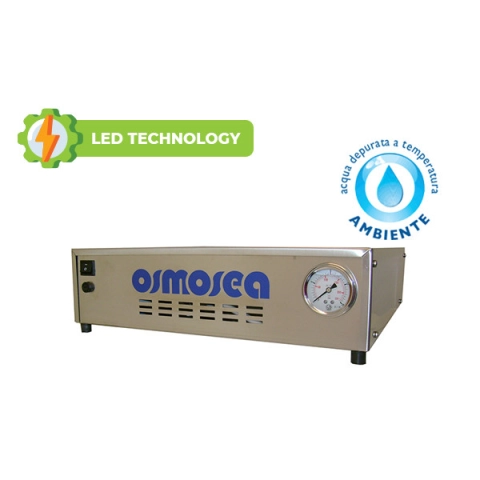

The Osmosea OsmoBoat Slim 220W Reverse Osmosis System is a compact and efficient water treatment solution,
designed to ensure reliable performance in small spaces. Thanks to its nominal production of 80 lt/h,
this system represents an ideal choice for nautical applications and installations where purified water is required with continuity and constant quality.
From a technical point of view, the Osmosea OsmoBoat Slim 220W Reverse Osmosis System is equipped with TFC membranes
and a complete filtration system consisting of a 5 ?m polypropylene sediment pre-filter,
a double 2" in-line activated carbon pre-filter and a 2" mineralizing post-filter.
This configuration allows effective treatment of the incoming water, with a maximum conductivity of up to 2000 TDS,
ensuring a precise and high-performance reverse osmosis process.
Its compact dimensions of 40 x 46 x 11.5 cm make the Osmosea OsmoBoat Slim 220W Reverse Osmosis System particularly suitable for installations where space is limited. The system works with an inlet water pressure between 1.5 and 3 bar and an operating pressure of 8 – 9 bar, offering operational stability and excellent performance during operation.
Technical characteristics:
Nominal production: 80 l/h
Dimensions L x W x H: 40 x 46 x 11.5 cm
Maximum inlet water conductivity: 2000 TDS
Min-max inlet water pressure: 1.5 – 3 bar
Operating pressure: 8 – 9 bar
Membranes: TFC
Sediment pre-filter: 1 x 5 ?m polypropylene 5" cartridge
Activated carbon pre-filter: 2 x in-line 2"
Post-filter: mineralizing 2"
Water inlet connection: 10 mm
Purified water connection: 1/4"
Drain connection: 1/4"
Power supply: 230 V – 50 Hz
Power consumption: 220 W
High pressure switch: Yes
Low pressure switch: Yes
PVC vessels: 2 x 1812
Osmosis membranes: 2 x 1812
Pressure regulation valve: Yes
Working pressure gauge: Yes
Electronic control unit: Yes
Looking for a product similar to this Osmosea but with different features? HERE you can find the area dedicated to purifiers or other brands similar to Osmosea.
